Wiper and Washer Switch Circuit: Procedure

  1. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY
    1. Remove the windshield wiper switch assembly. Refer to REMOVAL [06/2012 - ] .

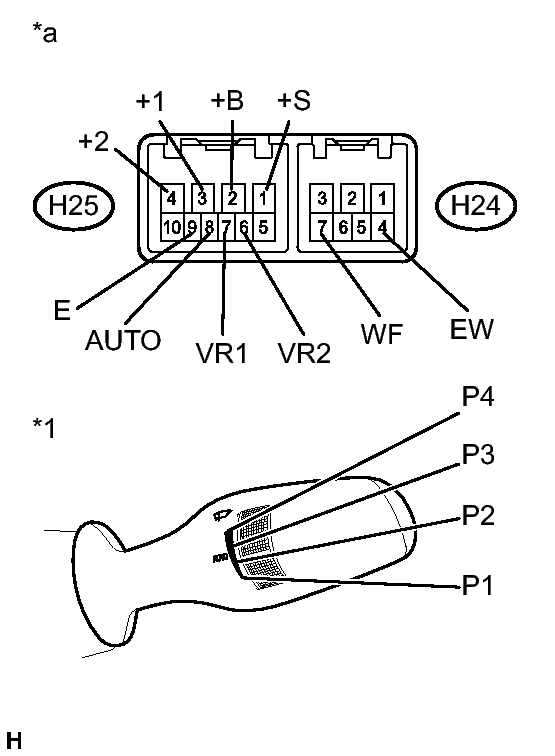

      Fig 1: Measuring Resistance Of Windshield Wiper Switch Assembly (W/ Auto Wiper System)
      GTY398441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FRONT WIPER SWITCH

      Tester Connection Condition Specified Condition
      H25-3 (+1) - H25-1 (+S) OFF Below 1 Ω
      AUTO
      H25-3 (+1) - H25-2 (+B) MIST
      LO
      H25-2 (+B) - H25-4 (+2) HI
      H25-8 (AUTO) - H25-9 (E) AUTO
      FRONT WASHER SWITCH

      Tester Connection Condition Specified Condition
      H24-4 (EW) - H24-7 (WF) ON Below 1 Ω
      OFF 10 kΩ or higher
      ADJUSTING LEVER*

      Tester Connection Condition Specified Condition
      H25-7 (VR1) - H25-6 (VR2) P1 209 to 231 Ω
      P2 114 to 126 Ω
      P3 58.9 to 65.1 Ω
      P4 Below 1 Ω

      HINT:

      *: The rain sensor sensitivity can be adjusted by the windshield wiper switch assembly adjusting lever.

      TEXT IN ILLUSTRATION

      *1 Windshield Wiper Switch Assembly (Adjusting lever Position)
      *a Component without harness connected
      (Windshield Wiper Switch Assembly)

    NG → See step   3

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER SWITCH ASSEMBLY - WINDSHIELD WIPER RELAY ASSEMBLY AND BODY GROUND)
    1. Disconnect the H51 windshield wiper relay assembly connector.
    2. Disconnect the A25 windshield wiper motor assembly.
    3. Disconnect the 3A instrument panel junction block assembly.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H24-4 (EW) - Body ground Always Below 1 Ω
      H24-7 (WF) - H51-25 (W) Always Below 1 Ω
      H24-7 (WF) - Body ground Always 10 kΩ or higher
      H25-1 (+S) - H51-10 (+1) Always Below 1 Ω
      H25-1 (+S) - Body ground Always 10 kΩ or higher
      H25-2 (+B) - 3A-11 Always Below 1 Ω
      H25-2 (+B) - Body ground Always 10 kΩ or higher
      H25-3 (+1) - A25-5 (+1) Always Below 1 Ω
      H25-3 (+1) - Body ground Always 10 kΩ or higher
      H25-4 (+2) - H51-11 (+2) Always Below 1 Ω
      H25-4 (+2) - A25-3 (+2) Always Below 1 Ω
      H25-4 (+2) - Body ground Always 10 kΩ or higher
      H25-6 (VR2) - H51-8 (VR2) Always Below 1 Ω
      H25-6 (VR2) - Body ground Always 10 kΩ or higher
      H25-7 (VR1) - H51-21 (VR1) Always Below 1 Ω
      H25-7 (VR1) - Body ground Always 10 kΩ or higher
      H25-8 (AUTO) - H51-3 (C1) Always Below 1 Ω
      H25-8 (AUTO) - Body ground Always 10 kΩ or higher
      H25-9 (E) - H51-5 (CO) Always Below 1 Ω
      H25-9 (E) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   4

  3. REPLACE WINDSHIELD WIPER SWITCH ASSEMBLY. Refer to  REMOVAL [06/2012 - ]
  4. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [06/2012 - ]
