Steering Pad Switch Circuit: Procedure

1. Disconnect the H97 multi-media module receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H97-30 (SW1) - H97-32 (SWG)	No switch pushed	95 to 105 kΩ
   	Seek+ switch pushed	Below 2.5 Ω
   	Seek- switch pushed	313 to 345 Ω
   	Volume+ switch pushed	950 to 1050 Ω
   	Volume- switch pushed	2955 to 3265 Ω
   H97-31 (SW2) - H97-32 (SWG)	No switch pushed	95 to 105 kΩ
   	MODE switch pushed	Below 2.5 Ω
   	Voice switch pushed	2955 to 3265 Ω
   	Voice return switch pushed	313 to 345 Ω
   	On hook switch pushed
   	Off hook switch pushed	950 to 1050 Ω

NG → See step   2

OK → See step   4

1. Disconnect the z5 steering pad switch assembly connector.
2. Measure the resistance according to the values in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   z5-11 (AU1) - z5-8 (EAU)	No switch pushed	95 to 105 kΩ
   	Seek+ switch pushed	Below 2.5 Ω
   	Seek- switch pushed	313 to 345 Ω
   	Volume+ switch pushed	950 to 1050 Ω
   	Volume- switch pushed	2955 to 3265 Ω
   z5-10 (AU2) - z5-8 (EAU)	No switch pushed	95 to 105 kΩ
   	MODE switch pushed	Below 2.5 Ω
   	Voice switch pushed	2955 to 3265 Ω
   	Voice return switch pushed	313 to 345 Ω
   	On hook switch pushed
   	Off hook switch pushed	950 to 1050 Ω

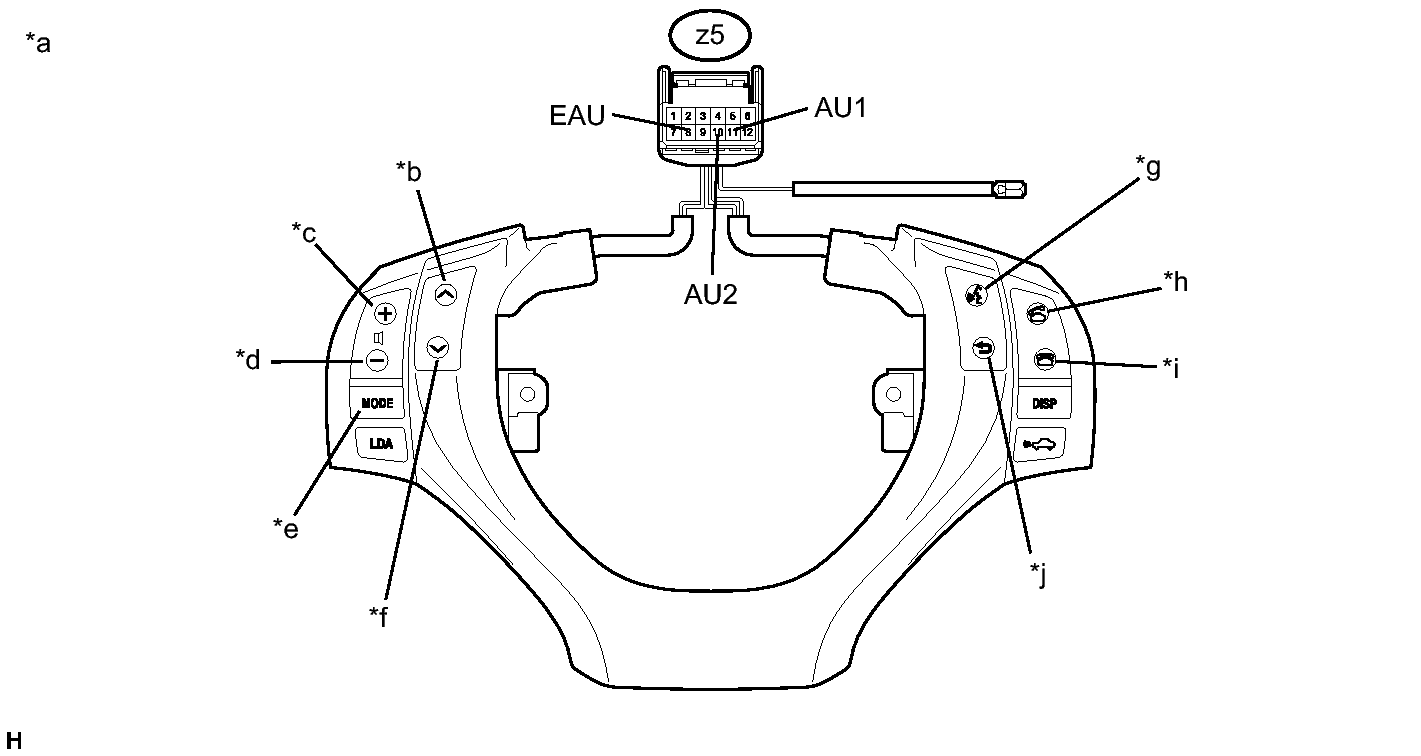

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Steering Pad Switch Assembly)	*b	Seek+
   *c	Volume+	*d	Volume-
   *e	MODE	*f	Seek-
   *g	Voice	*h	Off hook
   *i	On hook	*j	Voice return

NG → See step   6

OK: Go to next step

1. Disconnect the z5 steering pad switch assembly connector.
2. Disconnect the H22 spiral cable with sensor sub-assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   z5-8 (EAU) - H22-3 (EAU)	Center	3 Ω or less
   	2.5 rotations to the left
   	2.5 rotations to the right
   z5-11 (AU1) - H22-6 (AU1)	Center	3 Ω or less
   	2.5 rotations to the left
   	2.5 rotations to the right
   z5-10 (AU2) - H22-5 (AU2)	Center	3 Ω or less
   	2.5 rotations to the left
   	2.5 rotations to the right

4. After setting the spiral cable with sensor sub-assembly to the center position, rotate the spiral cable with sensor sub-assembly 2.5 times clockwise. Then while rotating the spiral cable with sensor sub-assembly 5 times counterclockwise, measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   z5-8 (EAU) - H22-3 (EAU)	Always	3 Ω or less
   z5-11 (AU1) - H22-6 (AU1)	Always	3 Ω or less
   z5-10 (AU2) - H22-5 (AU2)	Always	3 Ω or less

   NOTE:

   • Press and hold the lock located in the center of the spiral cable with sensor sub-assembly to rotate the spiral cable with sensor sub-assembly.
   • The spiral cable with sensor sub-assembly is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable with sensor sub-assembly may prevent the airbag from deploying. Refer to the service information shown in the brackets.
   • As the spiral cable with sensor sub-assembly may break, do not rotate the spiral cable with sensor sub-assembly more than the specified amount.

   HINT:

   • Removal. Refer to REMOVAL [06/2012 - ]
   • Installation. Refer to INSTALLATION [06/2012 - ]
   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Spiral Cable with Sensor Sub-assembly)
   *b	Steering Pad Switch Assembly Side
   *c	Vehicle Side

NG → See step   5

OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY - MULTI-MEDIA MODULE RECEIVER ASSEMBLY)
