DCM Data Signal Circuit between Navigation ECU and DCM: Wiring Diagram

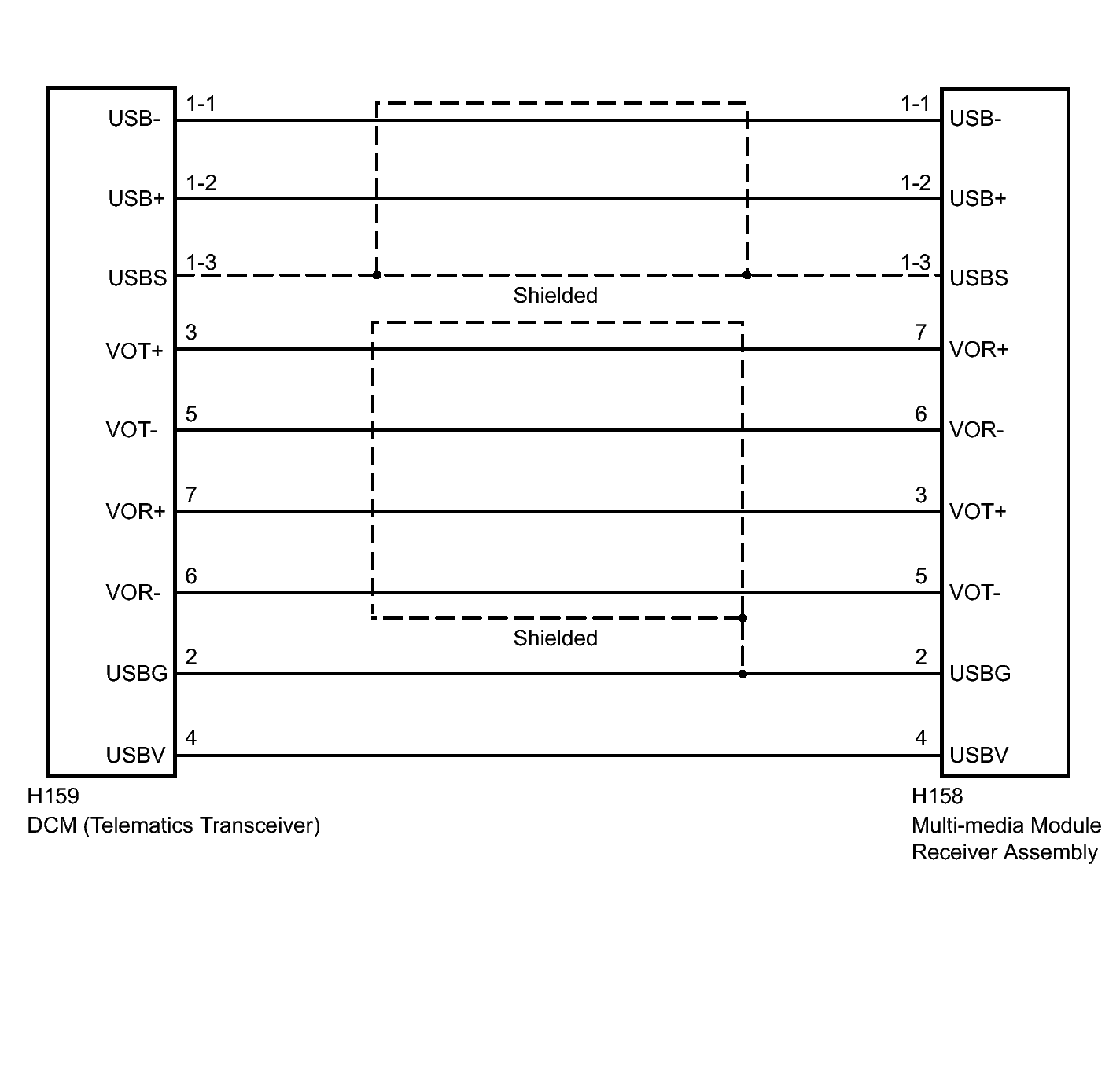

Fig 1: Identifying DCM Data Signal Circuit Wiring Diagram

GTY396801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
