Audio Receiver Assembly Communication Stop Mode: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the H89 radio receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H89-9 (CANH) - H89-10 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION

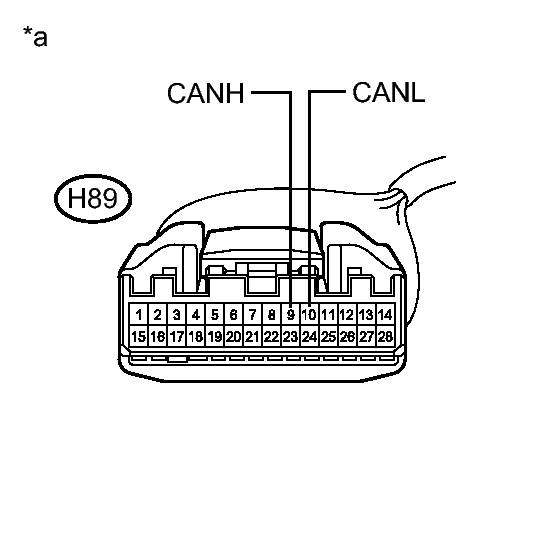

   *a	Front view of wire harness connector (to Radio Receiver Assembly)

NG → REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (RADIO RECEIVER ASSEMBLY)

OK: Go to next step

1. Disconnect the H90 radio receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H90-20 (GND1) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

3. Connect the cable to the negative (-) battery terminal.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   H90-11 (ACC1) - Body ground	Engine switch on (ACC)	11 to 14 V
   H90-1 (+B1) - Body ground	Engine switch off	11 to 14 V
   H89-1 (IG) - Body ground	Engine switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION

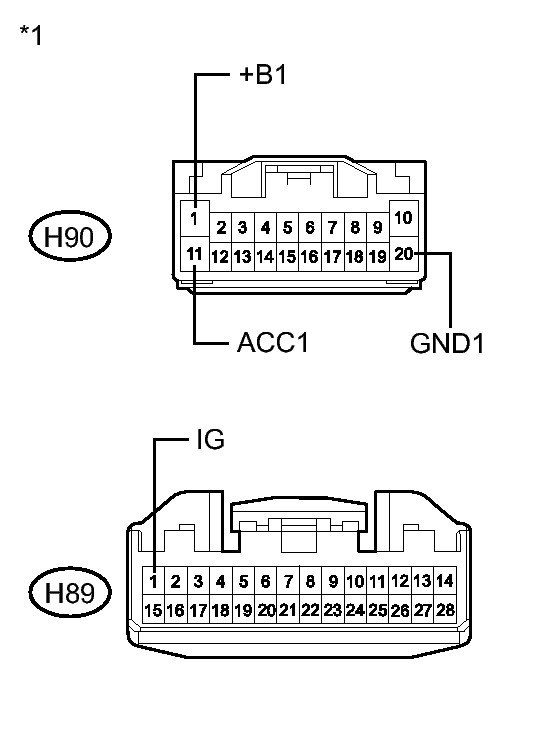

   *a	Front view of wire harness connector (to Radio Receiver Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK → See step   3
