DTC U1002: Lost Communication with Gateway Module (Sensor Bus): Wiring Diagram

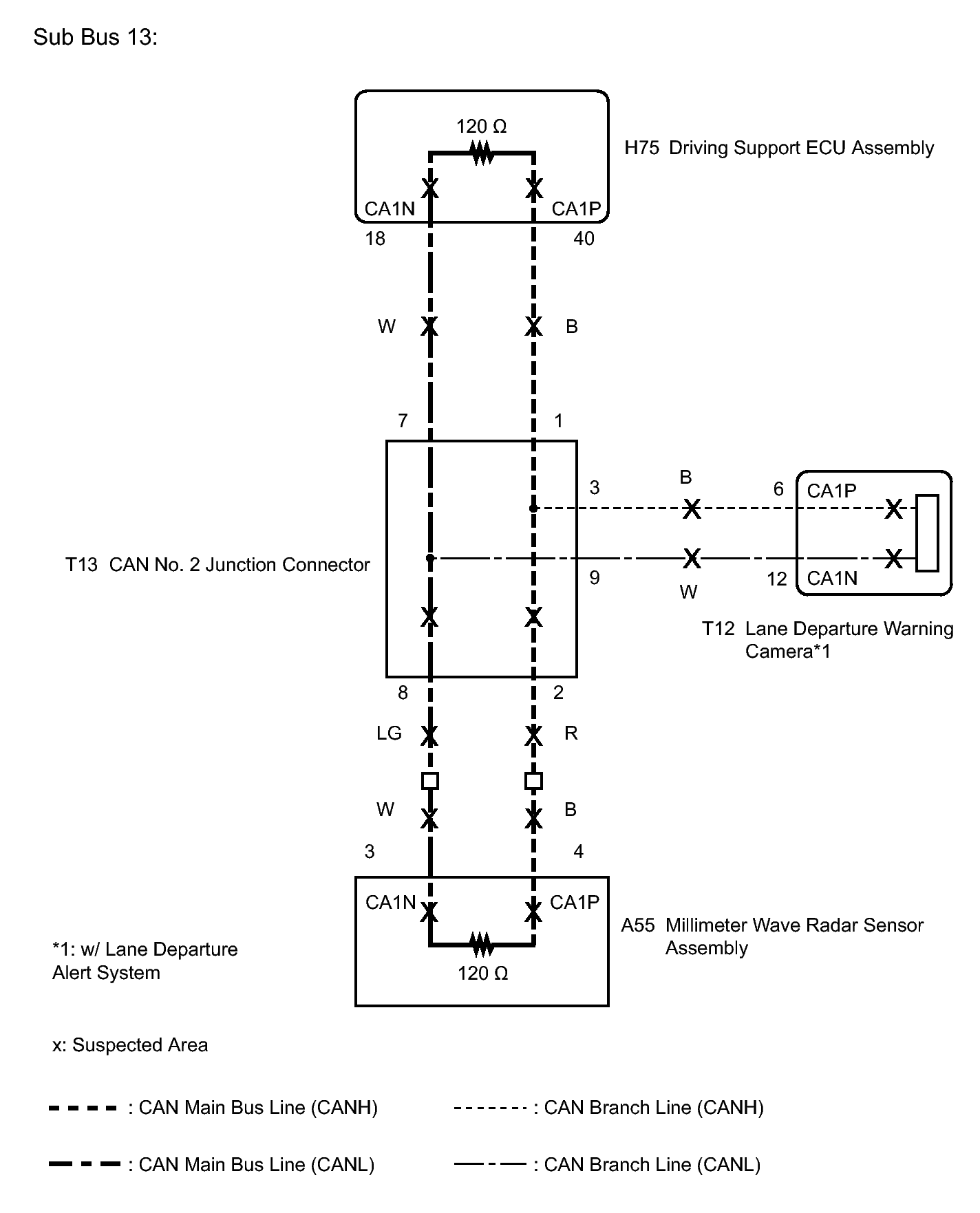

Fig 1: Sub Bus 13 Wiring Diagram

GTY404108

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
