Mirror Heater (w/Seat Position Memory) and Remote Control Mirror (w/Seat Position Memory): Notes

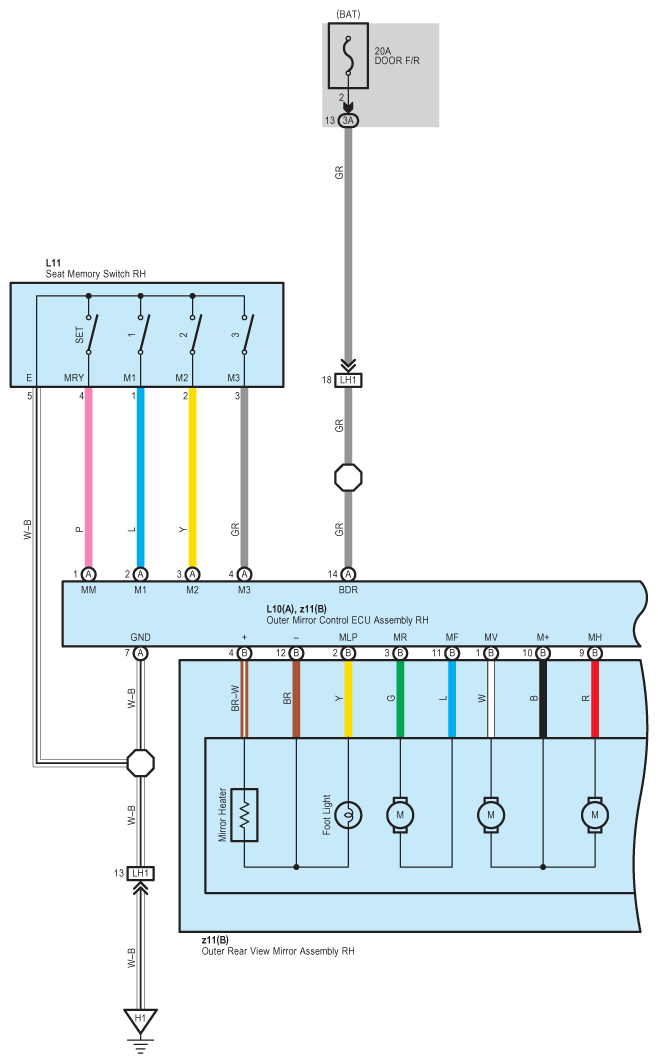

Fig 1: Mirror Heater (W/ Seat Position Memory) And Remote Control Mirror (W/Seat Position Memory) - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

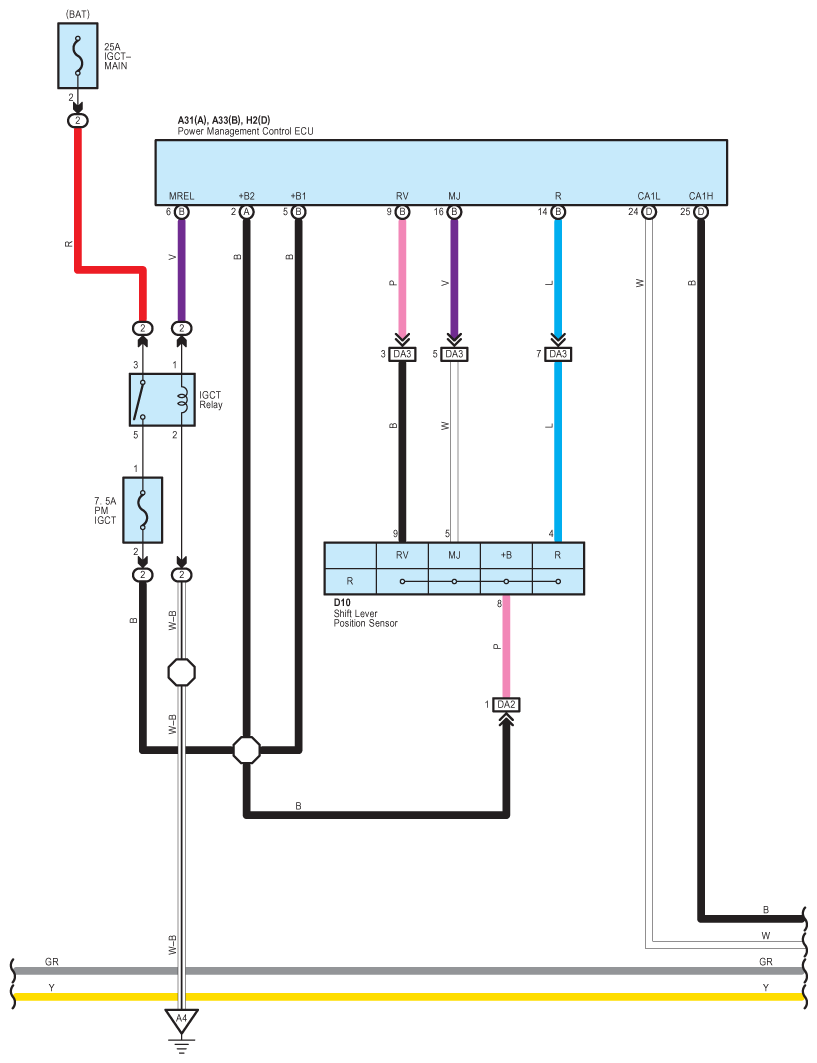

Fig 2: Mirror Heater (W/ Seat Position Memory) And Remote Control Mirror (W/Seat Position Memory) - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

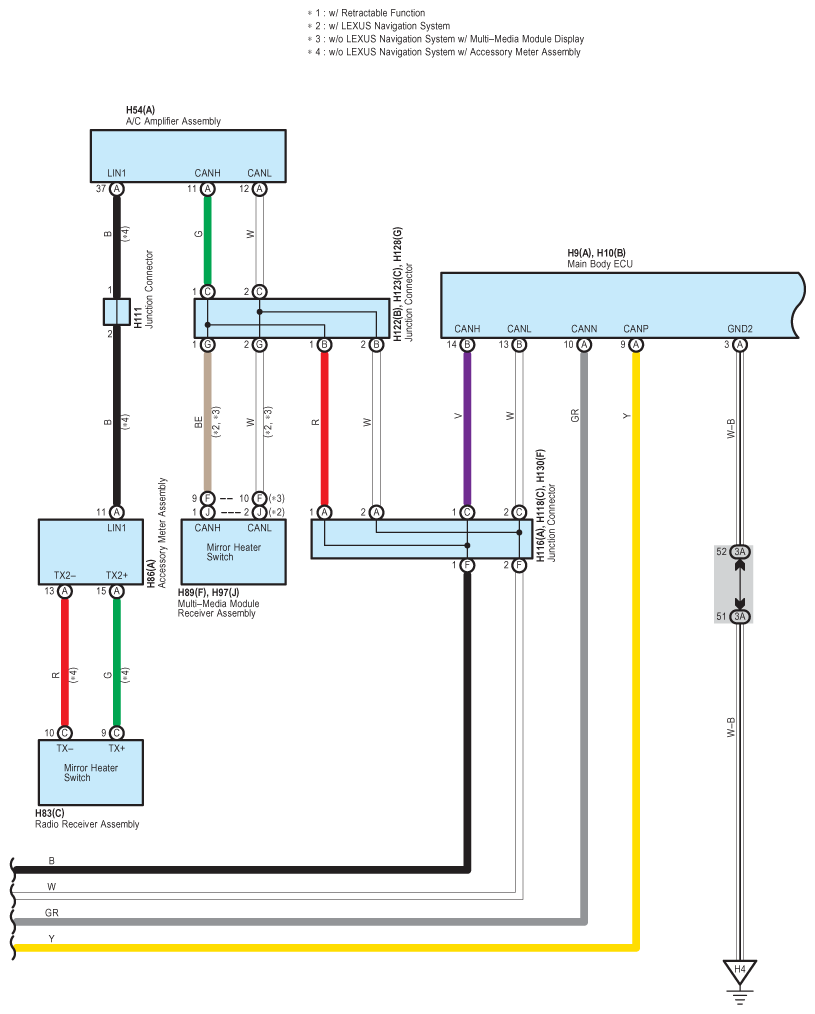

Fig 3: Mirror Heater (W/ Seat Position Memory) And Remote Control Mirror (W/Seat Position Memory) - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

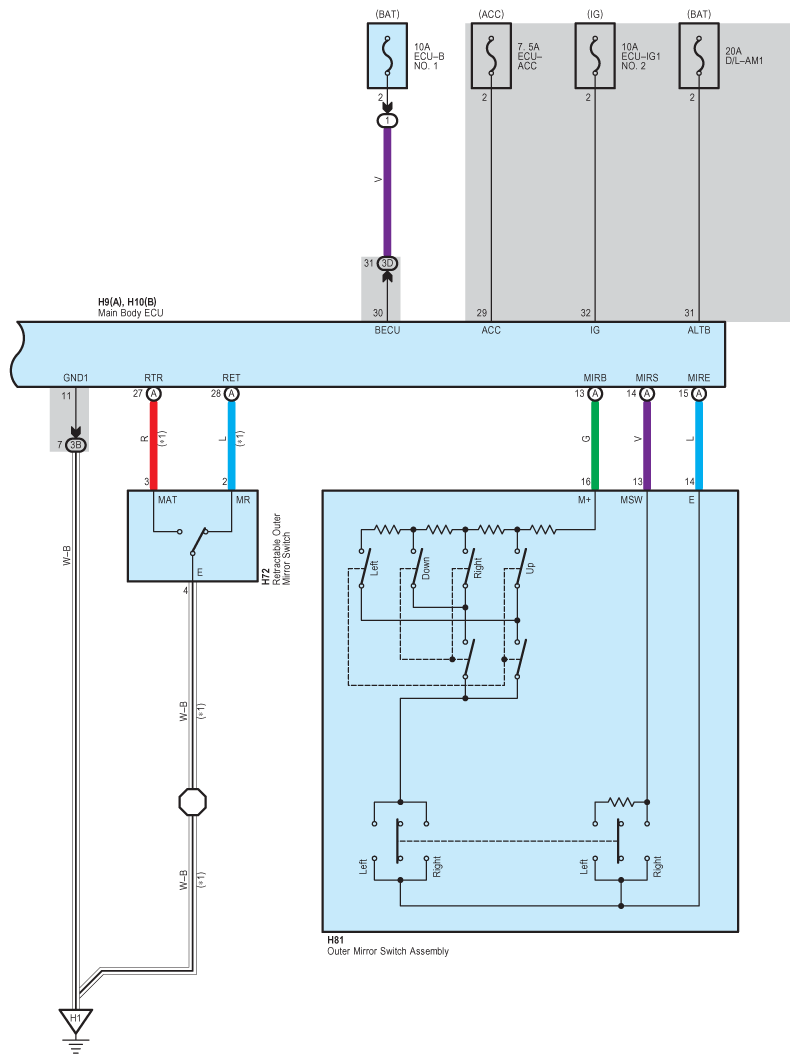

Fig 4: Mirror Heater (W/ Seat Position Memory) And Remote Control Mirror (W/Seat Position Memory) - Circuit Diagram (4 Of 6)

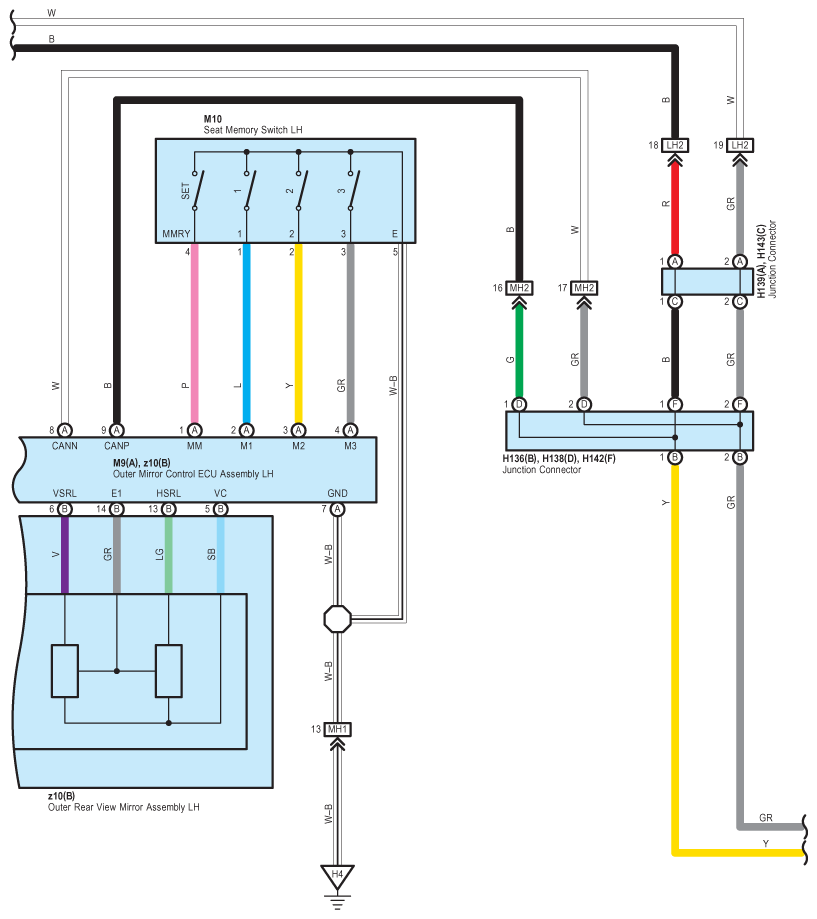

Fig 5: Mirror Heater (W/ Seat Position Memory) And Remote Control Mirror (W/Seat Position Memory) - Circuit Diagram (5 Of 6)

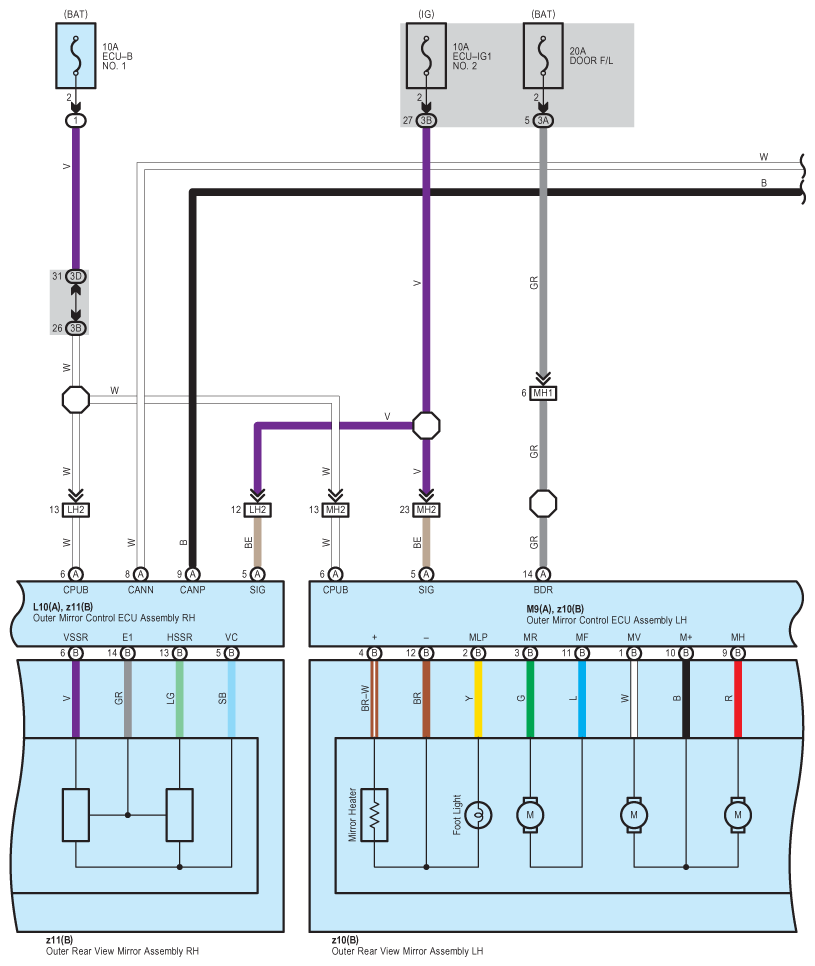

Fig 6: Mirror Heater (W/ Seat Position Memory) And Remote Control Mirror (W/Seat Position Memory) - Circuit Diagram (6 Of 6)
