POWER SOURCE (Current Flow Chart)

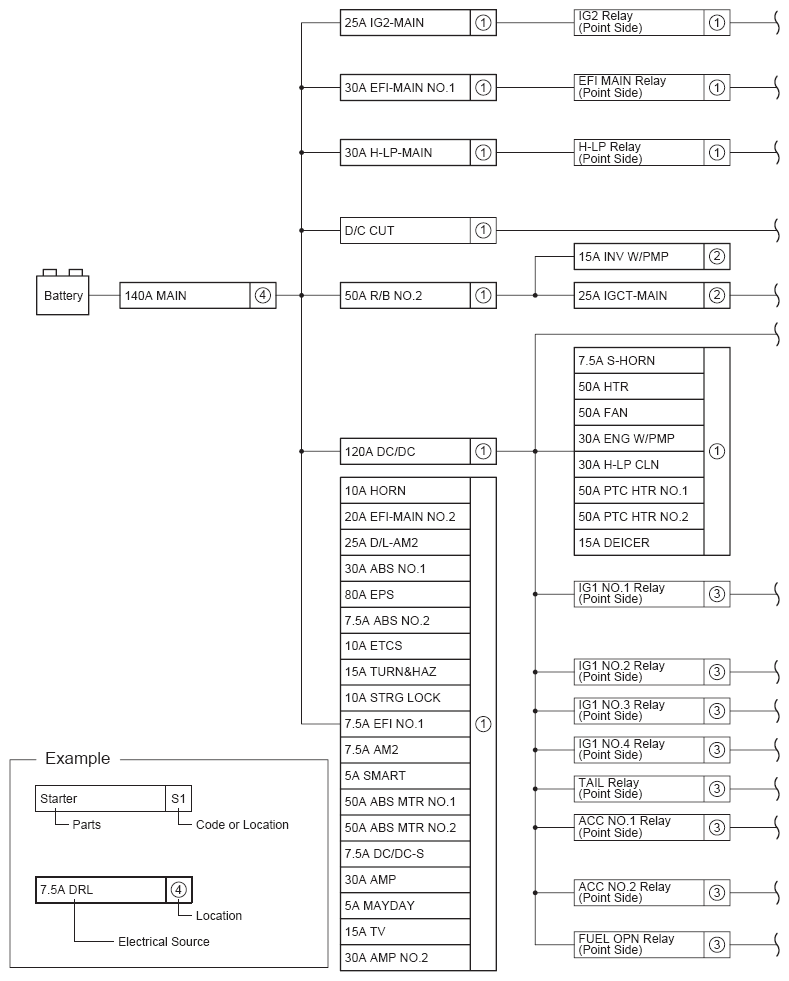

Fig 1: Power Source Current Flow Chart (1 Of 2)
G08953919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

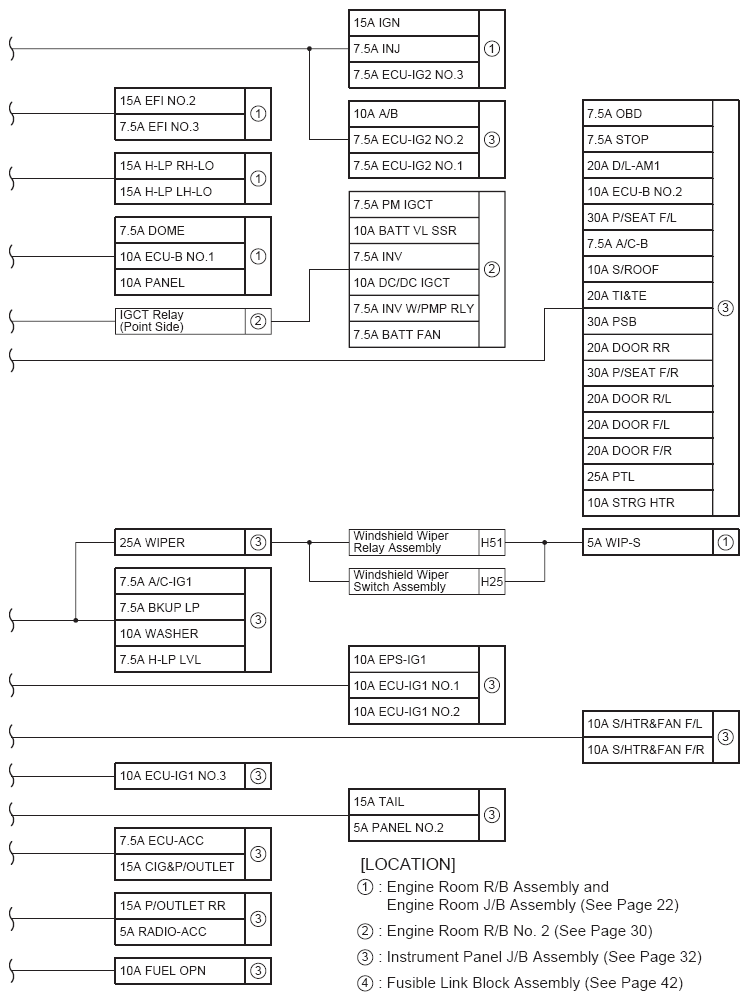

Fig 2: Power Source Current Flow Chart (2 Of 2)
G08953920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
