Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH: Wiring Diagram

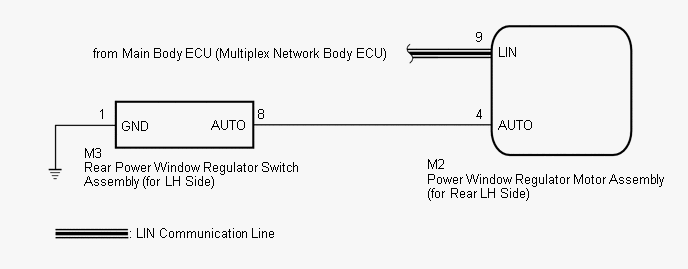

Fig 1: Identifying Power Window Regulator Motor Assembly Wiring Diagram
GTY351938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
