Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

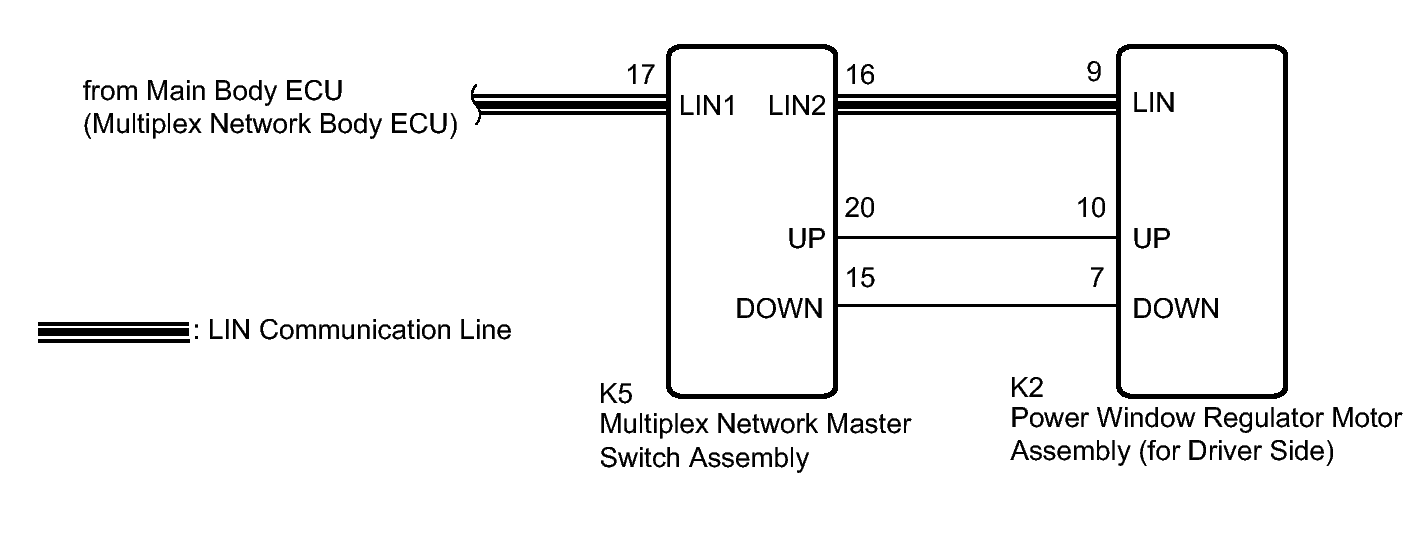

Fig 1: Identifying Multiplex Network Master Switch Assembly Wiring Diagram
GTY353150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
