Display does not Dim when Light Control Switch is Turned ON: Wiring Diagram

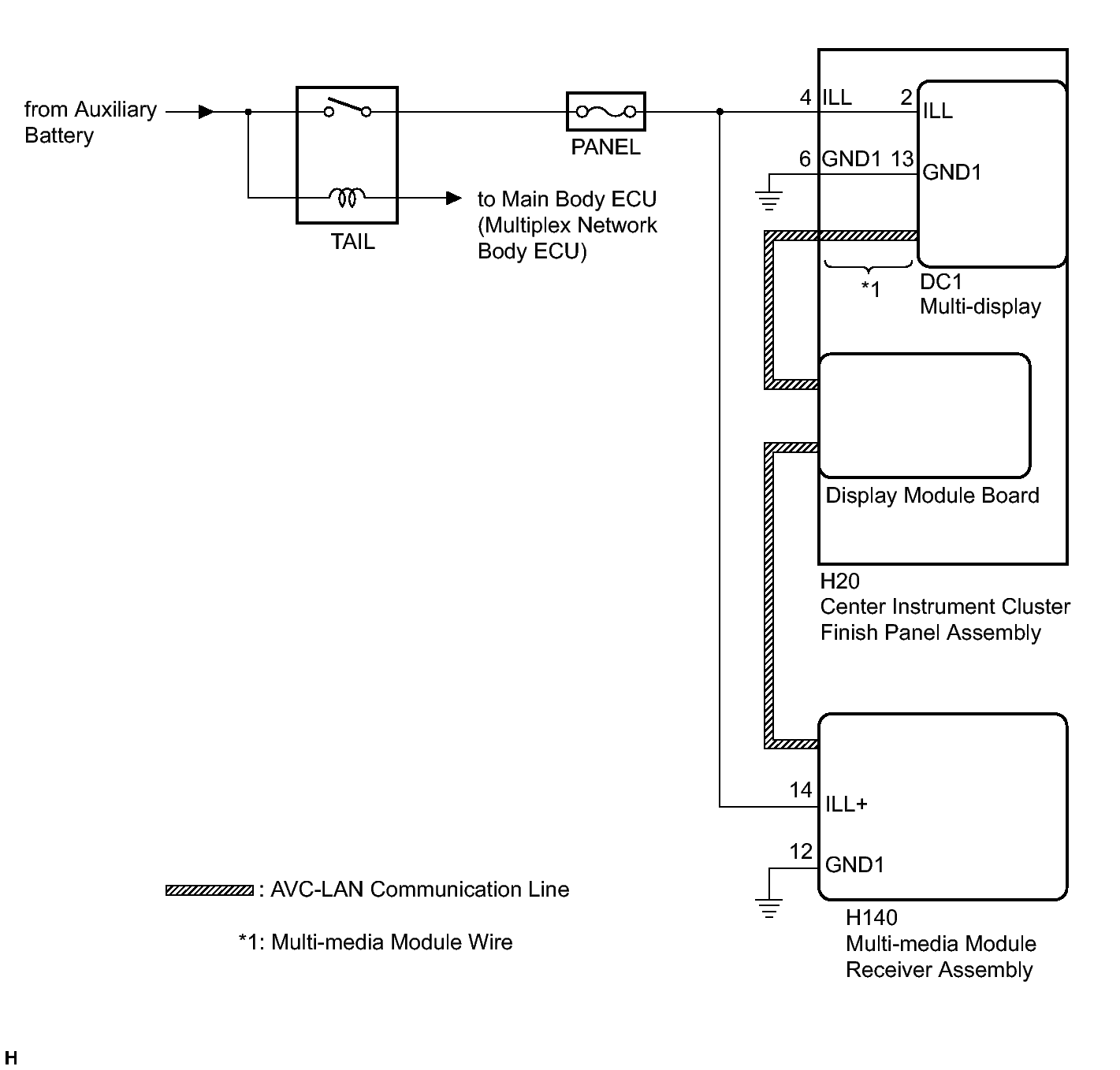

Fig 1: AVC-LAN Communication Line Wiring Diagram

GTY398579

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
