Communication Devices
>>
Can Communication System (Diagnostic Codes & Circuit Tests)
>>
Can Communication System
>>
Symptom Tests
>>
Power Management Control ECU Communication Stop Mode
>>
Wiring Diagram
Power Management Control ECU Communication Stop Mode: Wiring Diagram

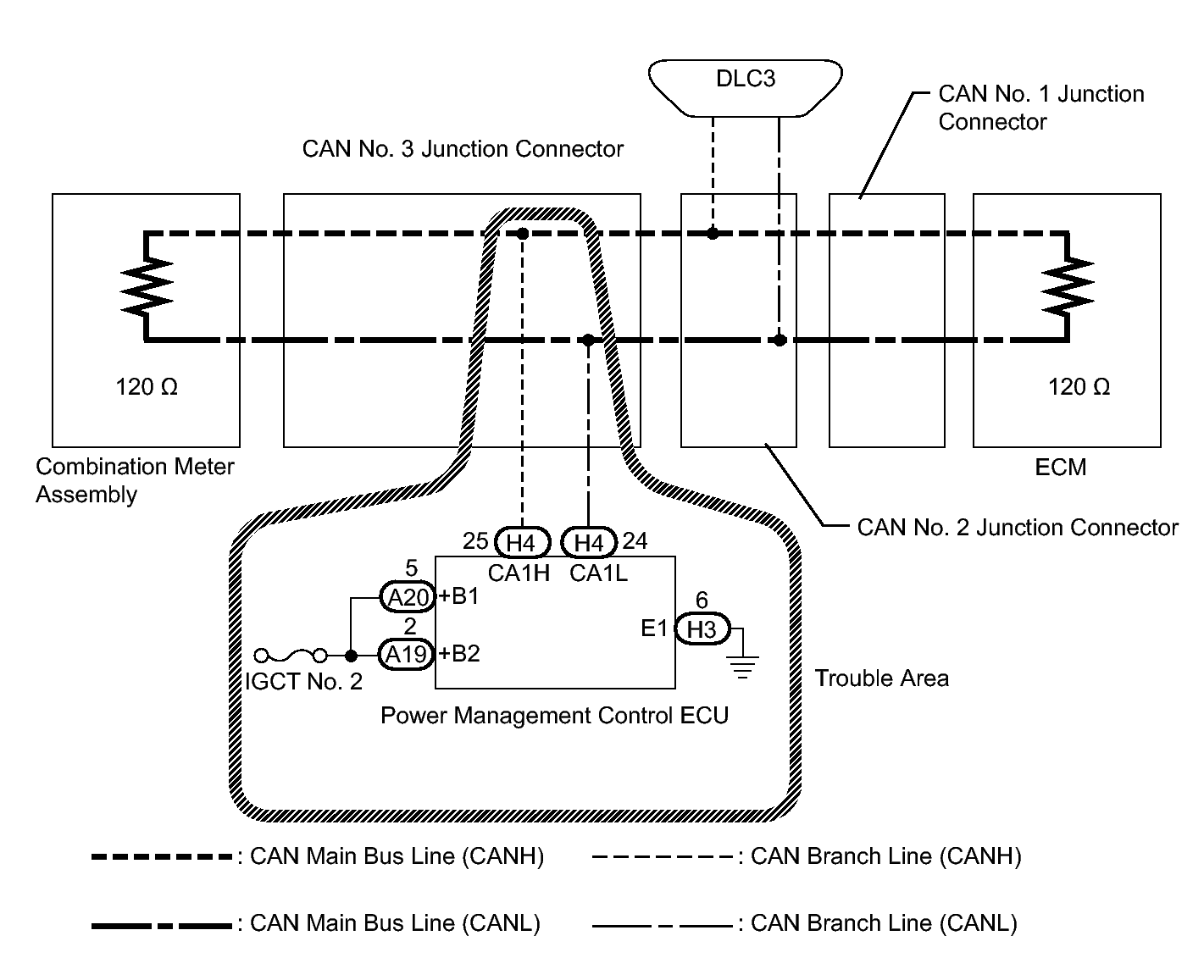

Fig 1: Identifying Power Management Control ECU Communication Stop Mode Wiring Diagram
