Multi-media Module Receiver Assembly Communication Stop Mode: Wiring Diagram

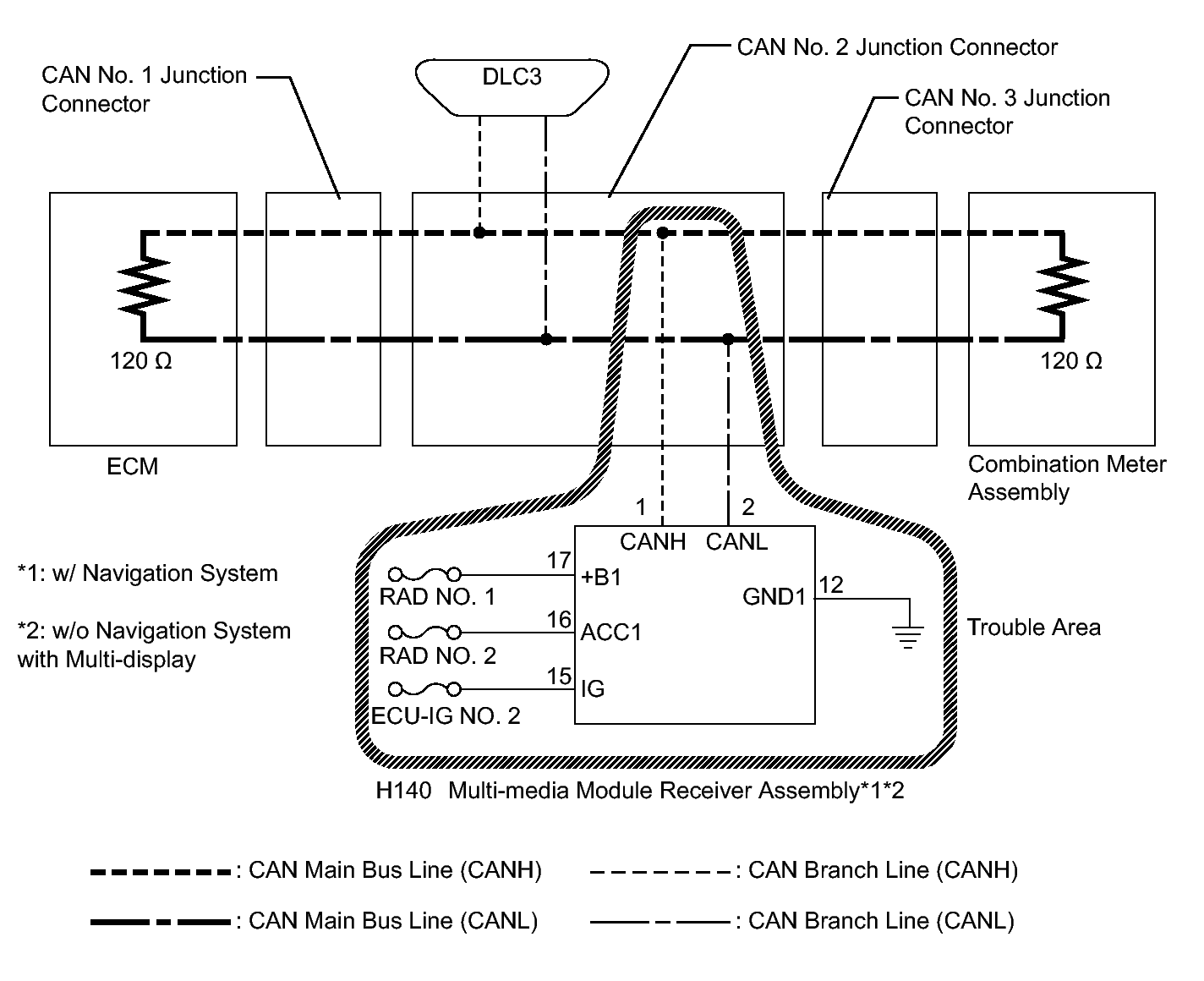

Fig 1: Multi-media Module Receiver Assembly Wiring Diagram

GTY410515

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
