DTC U1002: Lost Communication with Gateway Module (Sensor Bus); DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor: Wiring Diagram

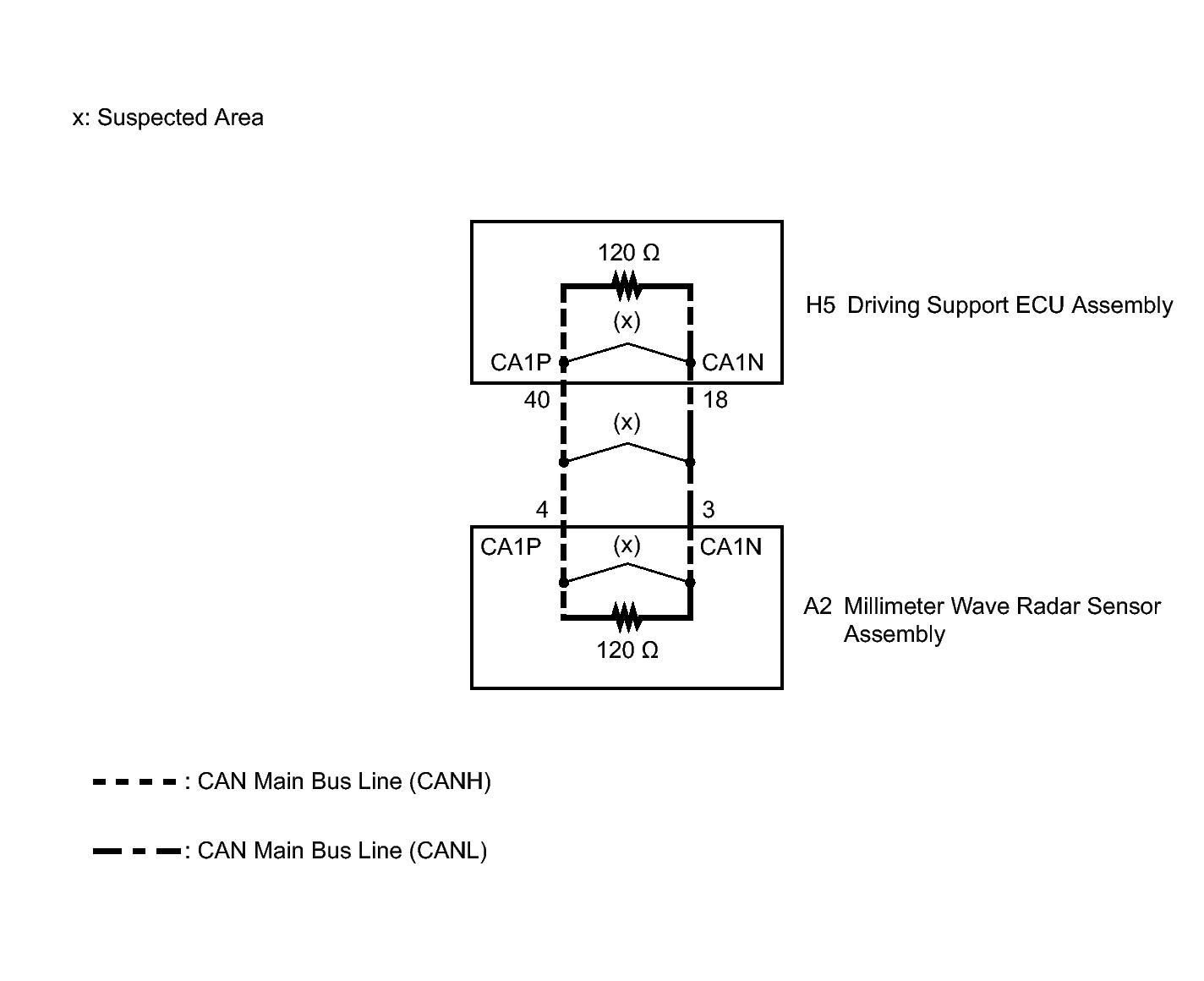

Fig 1: Driving Support ECU Assembly Wiring Diagram
GTY396868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
