DTC U0129: Lost Communication with Brake System Control Module: Wiring Diagram

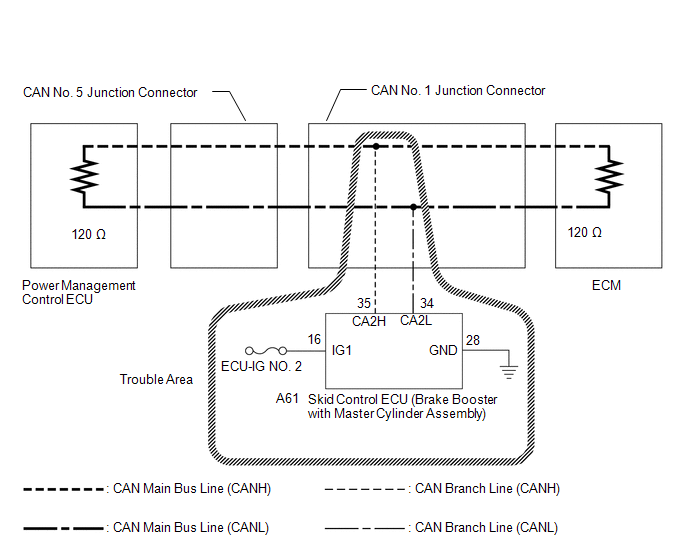

Fig 1: Brake System Control Module Wiring Diagram

GTY393168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
