OEM System Circuits: Taillight: Notes

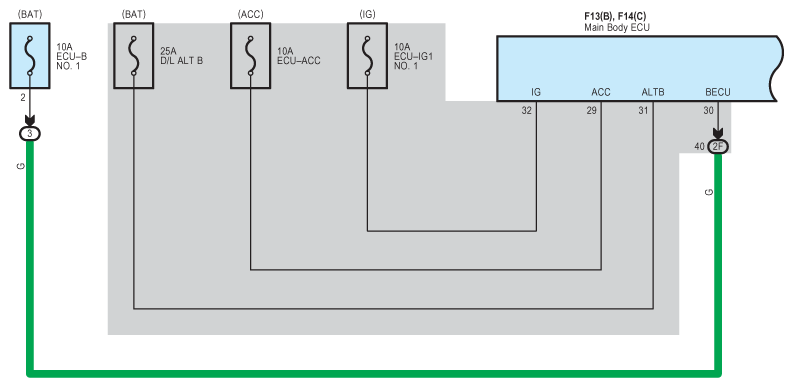

Fig 1: Taillight - Wiring Diagram (1 Of 5)

G08942651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

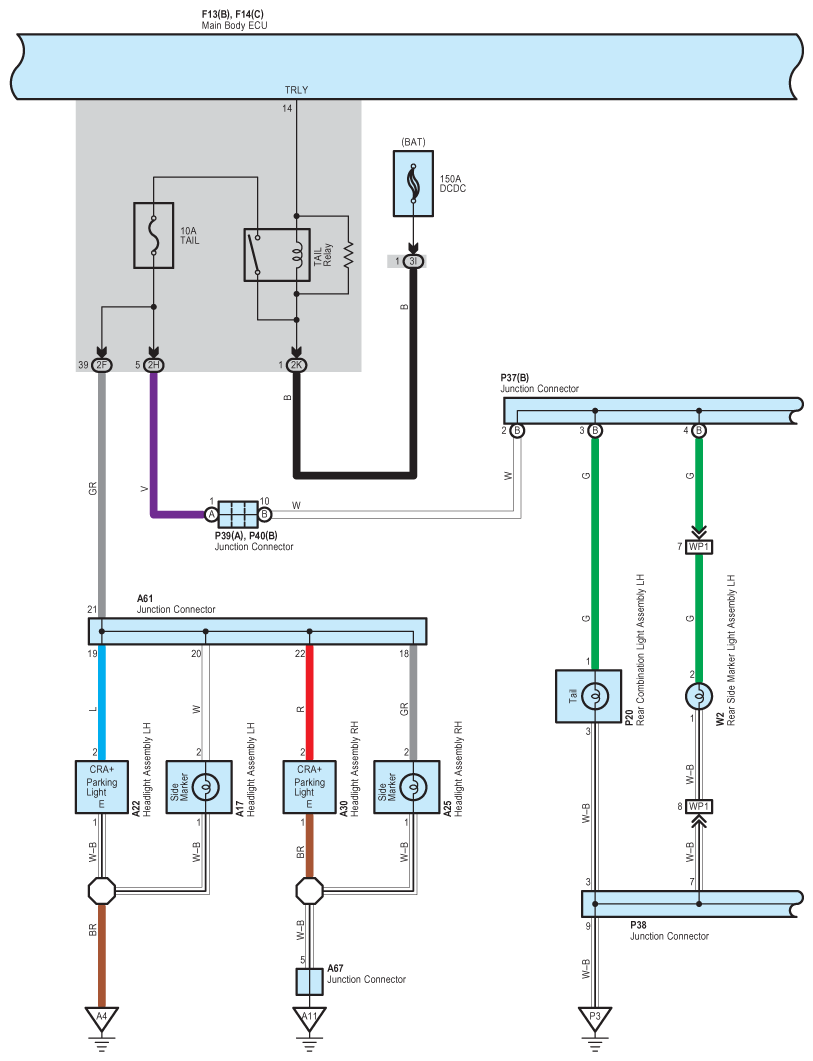

Fig 2: Taillight - Wiring Diagram (2 Of 5)

G08942652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

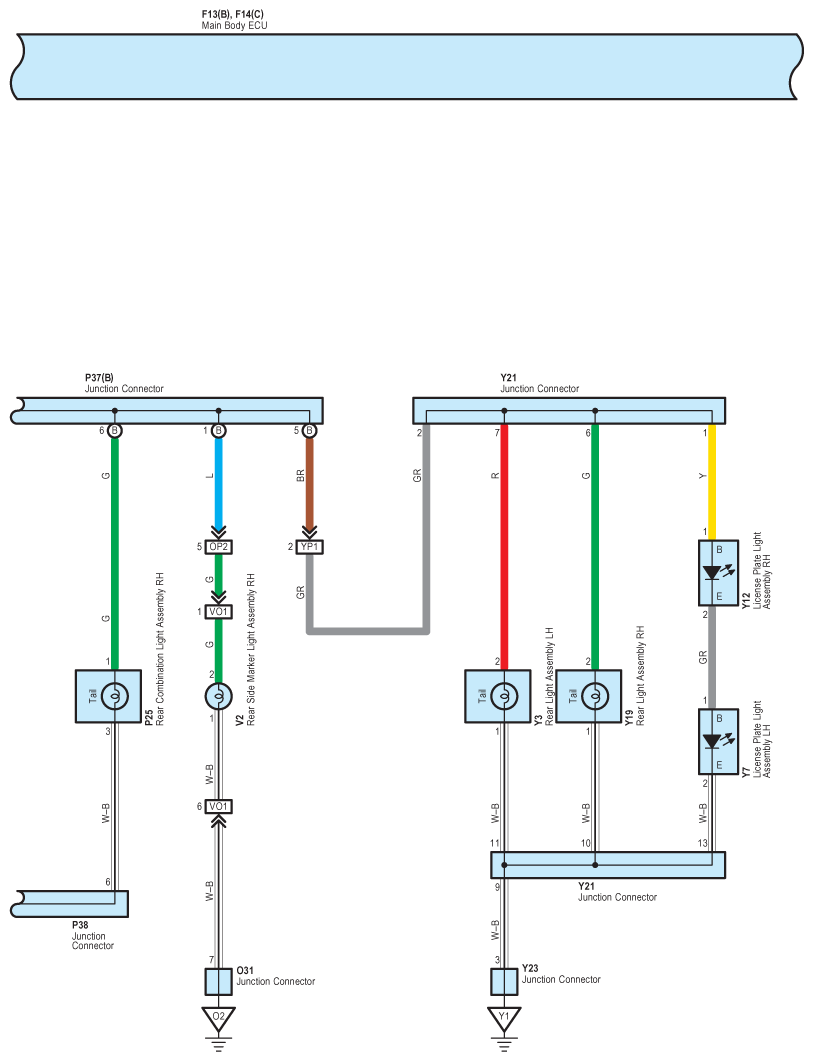

Fig 3: Taillight - Wiring Diagram (3 Of 5)

G08942653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

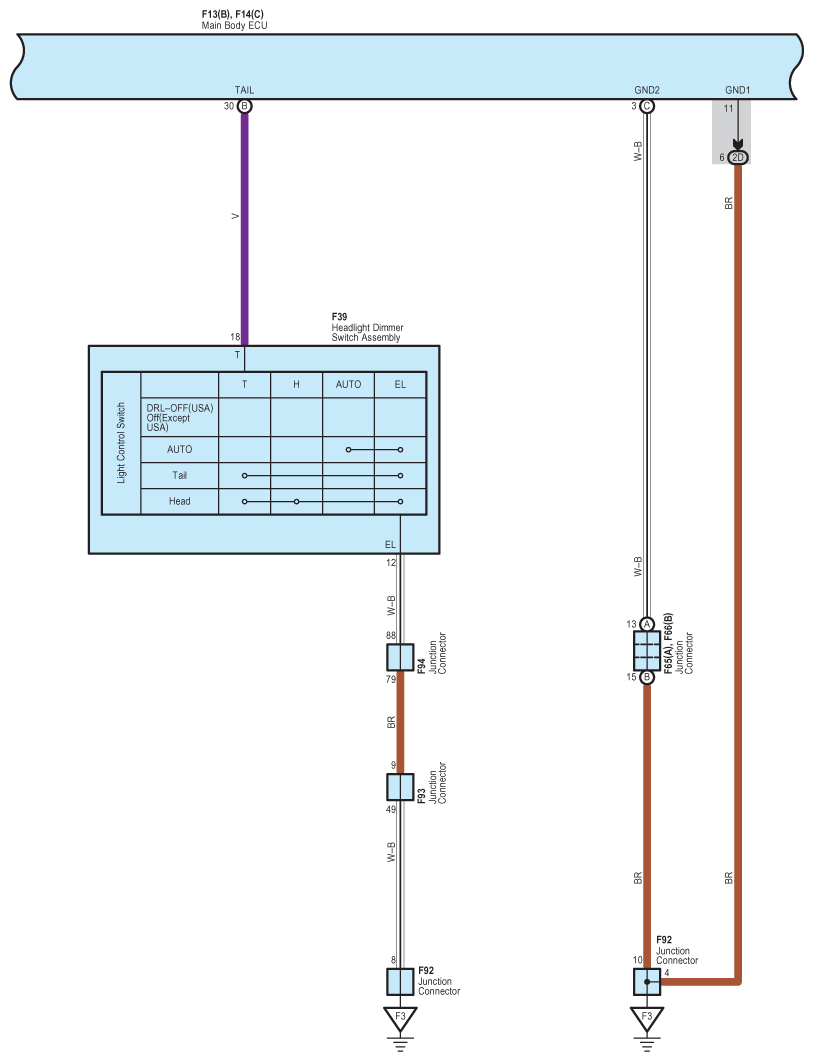

Fig 4: Taillight - Wiring Diagram (4 Of 5)

G08942654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

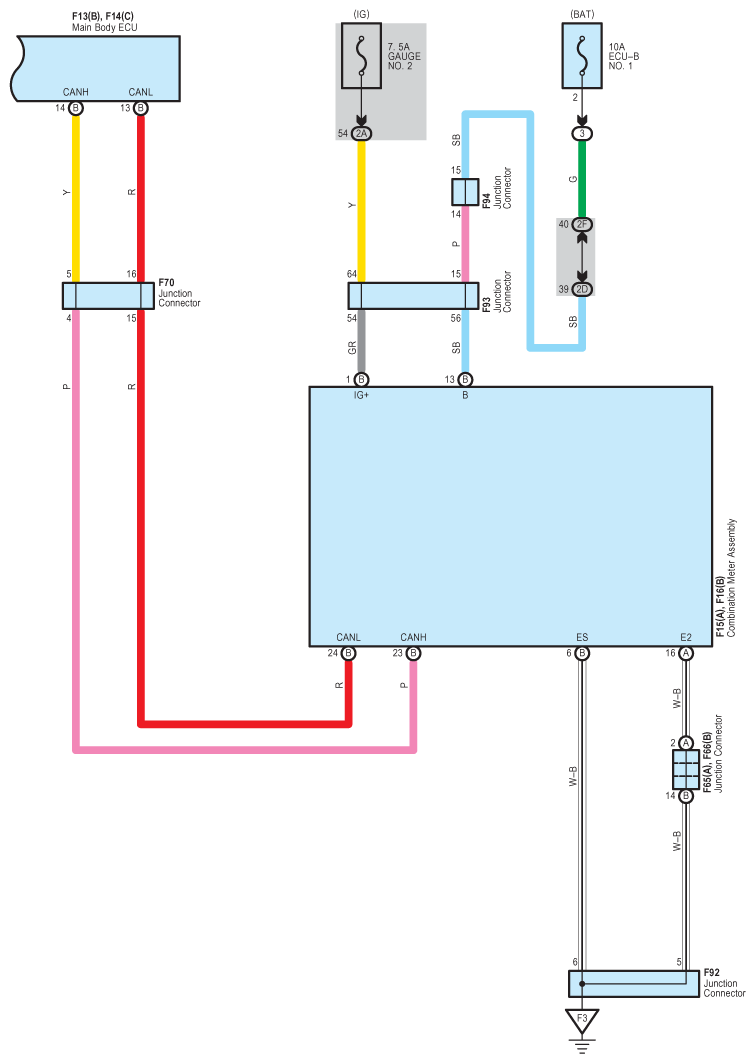

Fig 5: Taillight - Wiring Diagram (5 Of 5)

G08942655

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
