Sliding Roof: Notes

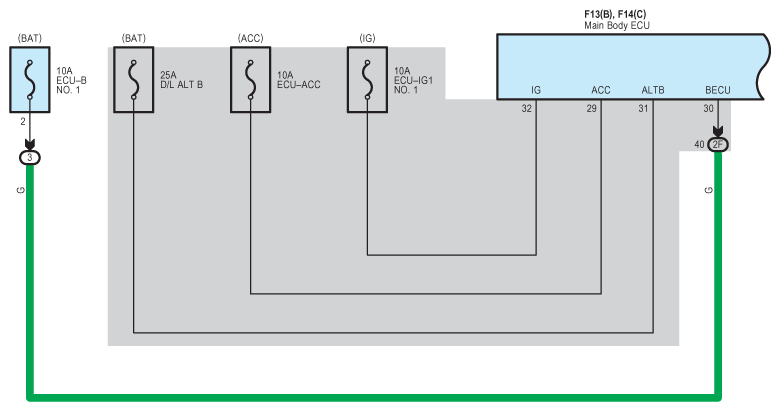

Fig 1: Sliding Roof - Wiring Diagram (1 Of 5)
G08942687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

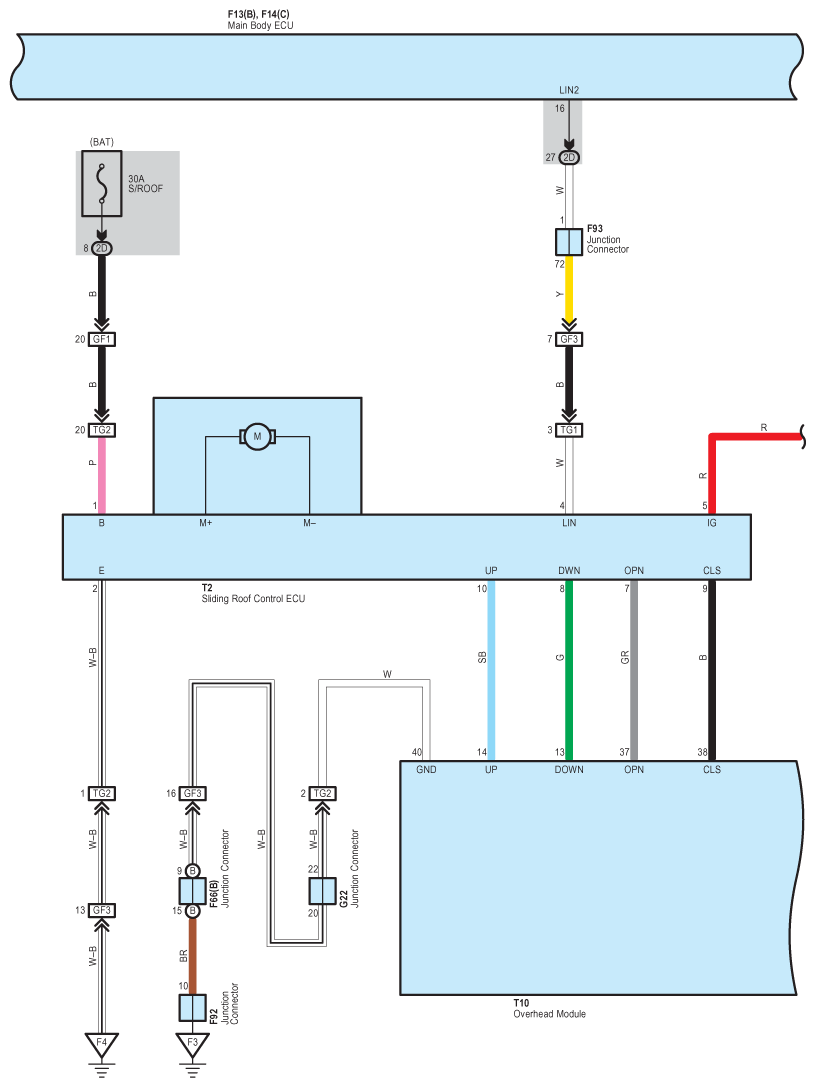

Fig 2: Sliding Roof - Wiring Diagram (2 Of 5)
G08942688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

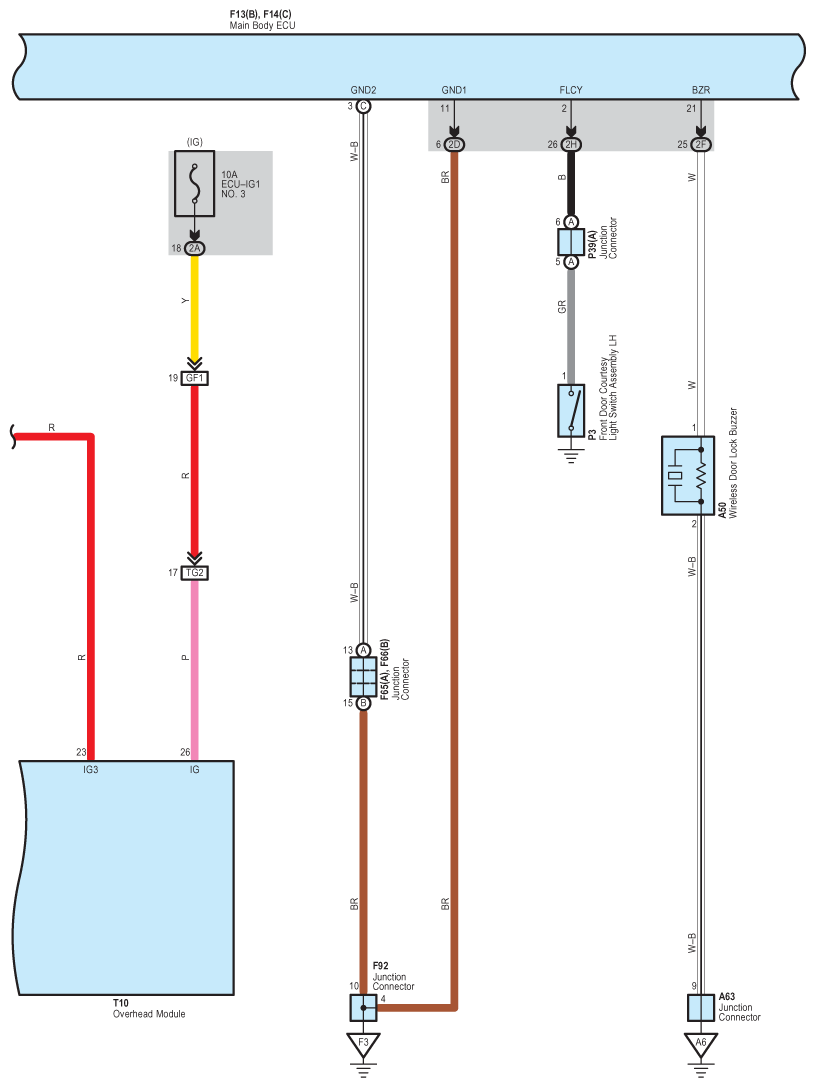

Fig 3: Sliding Roof - Wiring Diagram (3 Of 5)
G08942689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

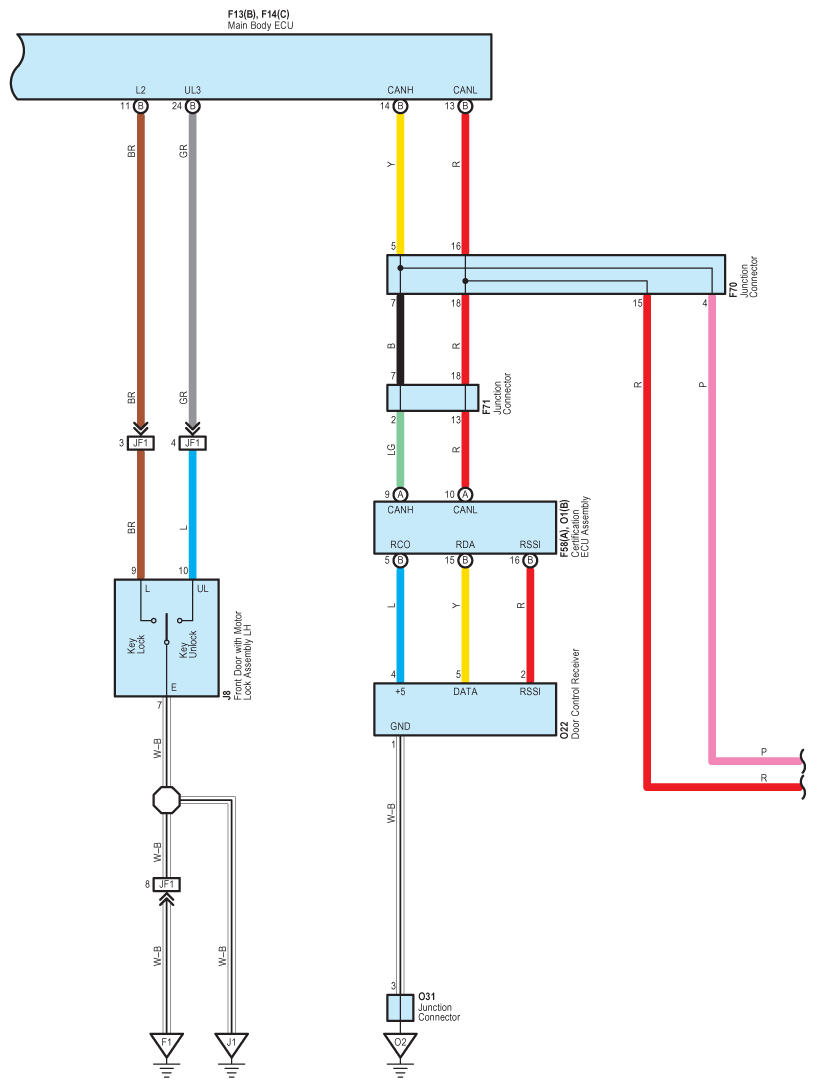

Fig 4: Sliding Roof - Wiring Diagram (4 Of 5)
G08942690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

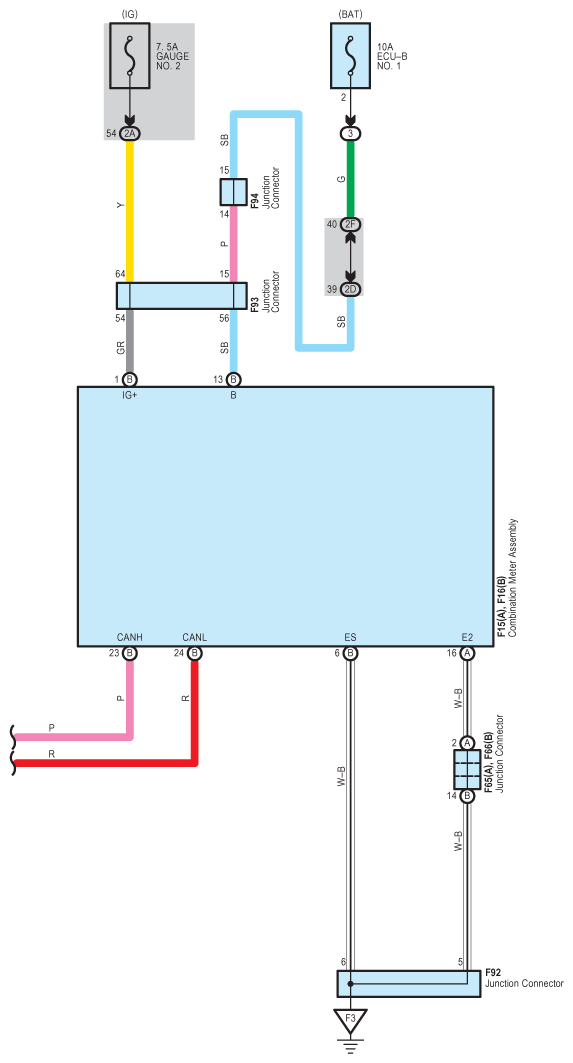

Fig 5: Sliding Roof - Wiring Diagram (5 Of 5)
G08942691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
