Interior Light: Notes

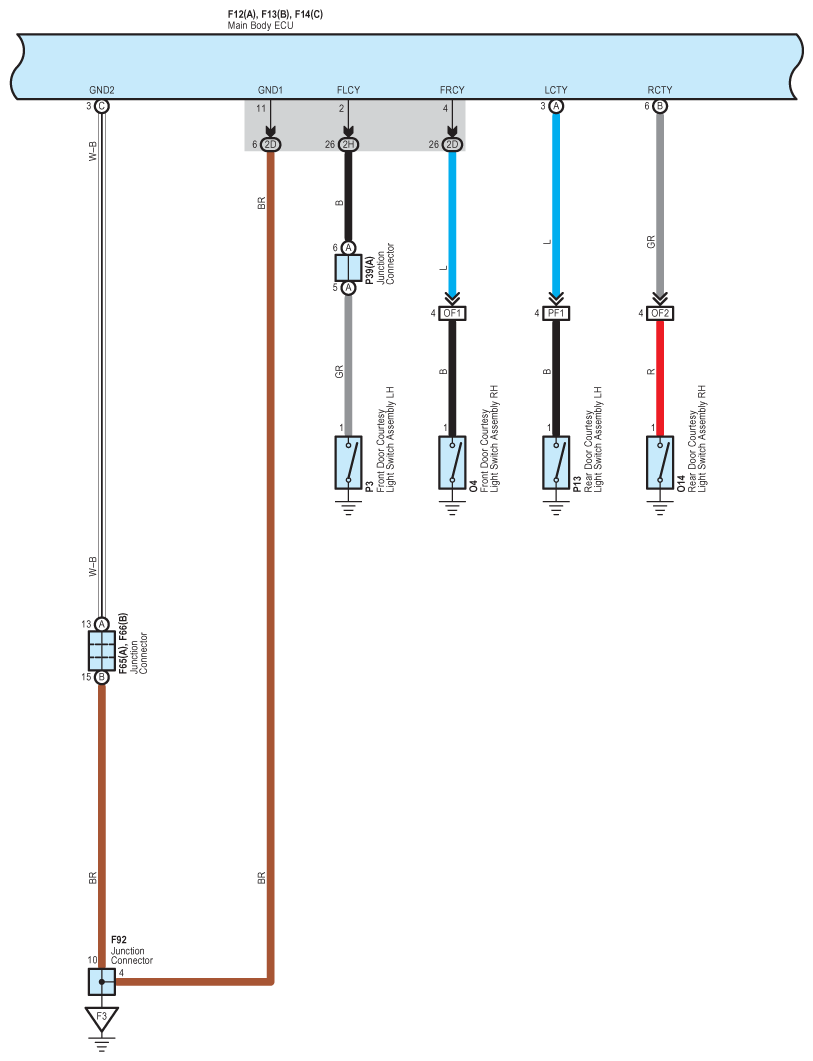

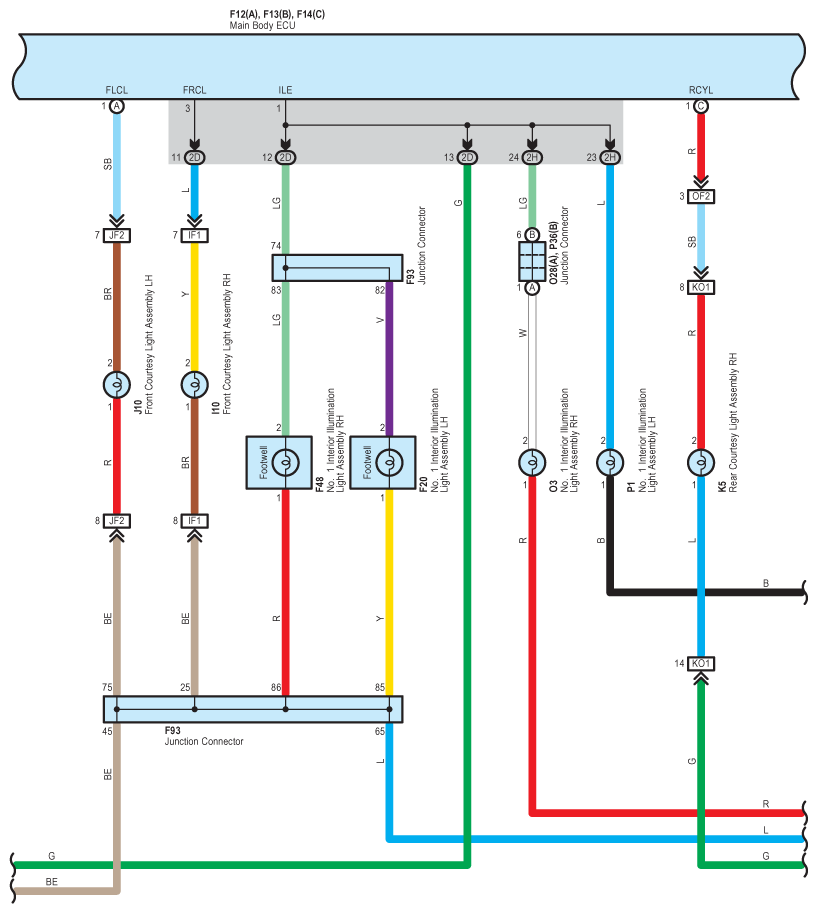

Fig 1: Interior Light - Wiring Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

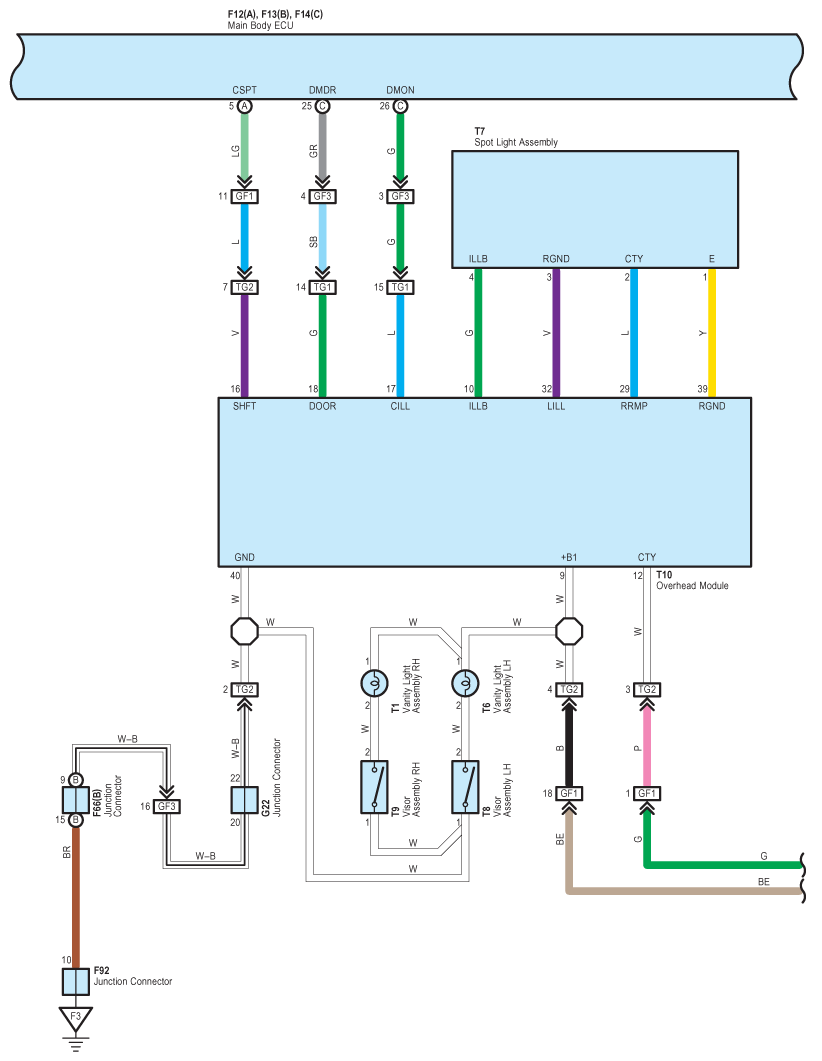

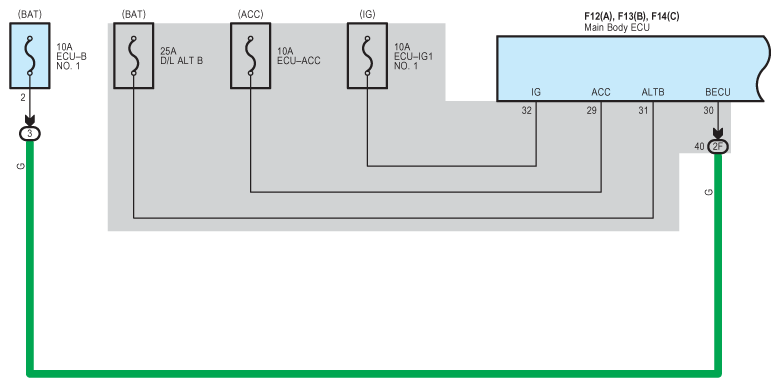

Fig 2: Interior Light - Wiring Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

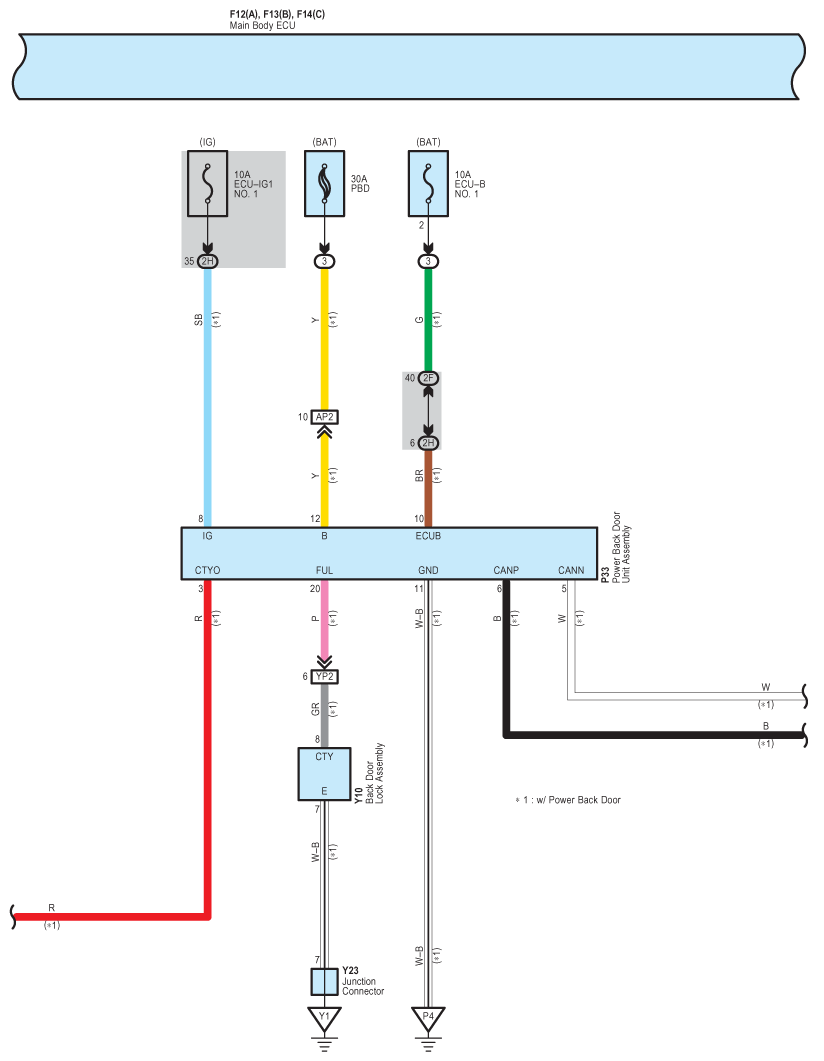

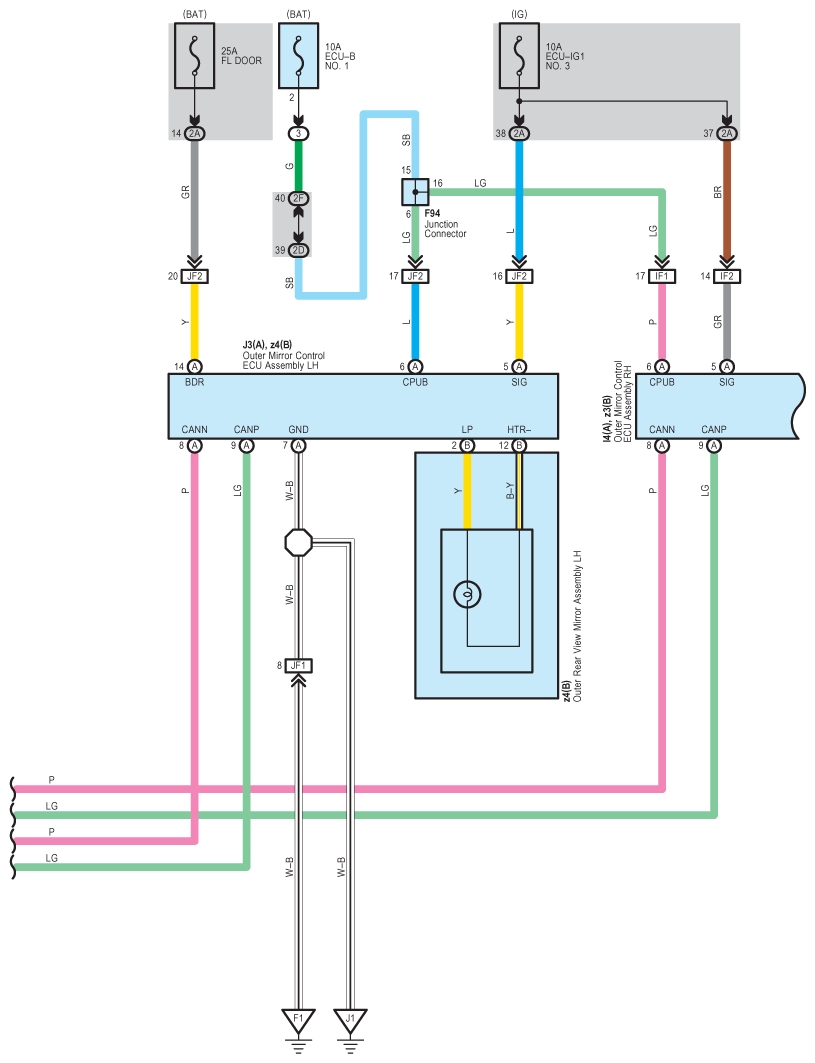

Fig 3: Interior Light - Wiring Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

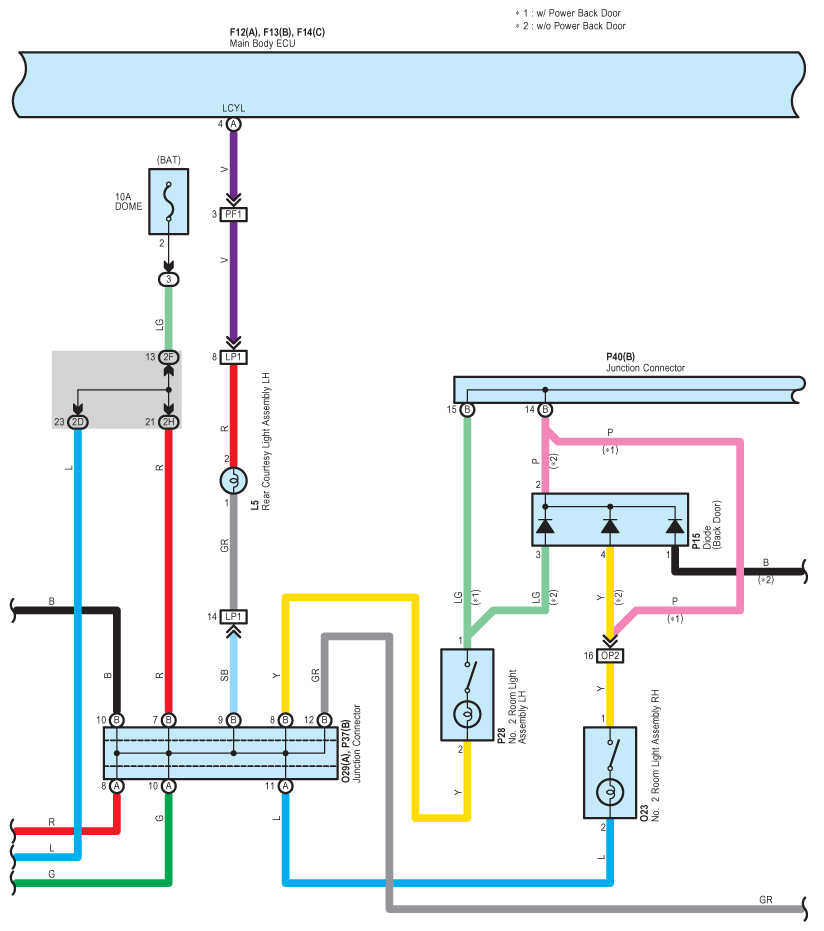

Fig 4: Interior Light - Wiring Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

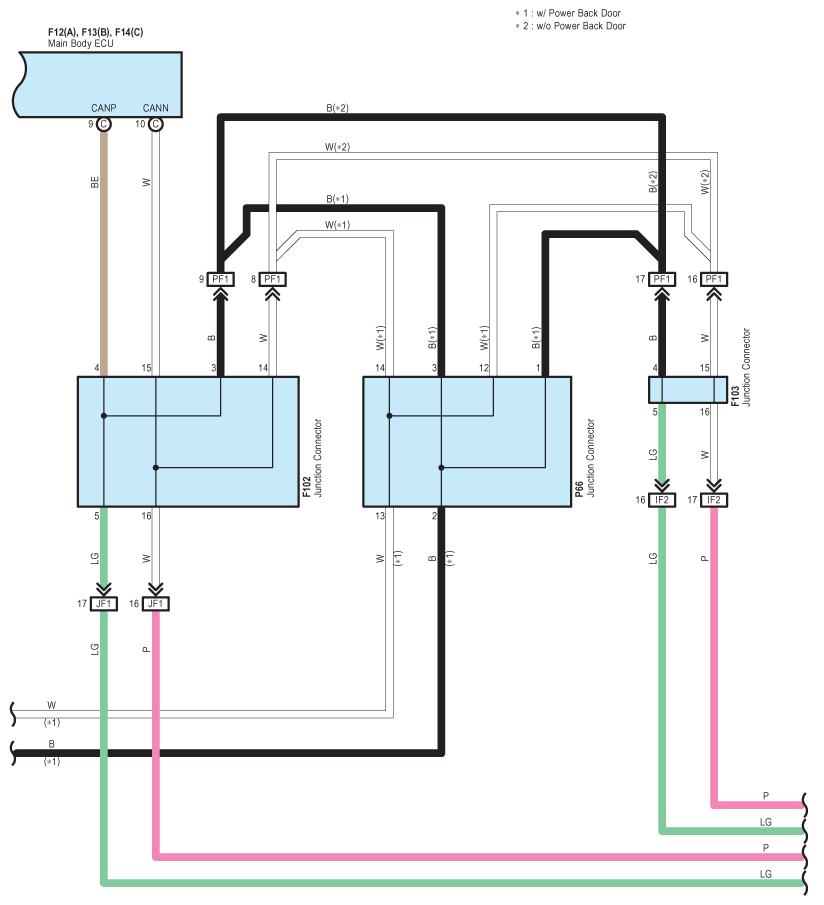

Fig 5: Interior Light - Wiring Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

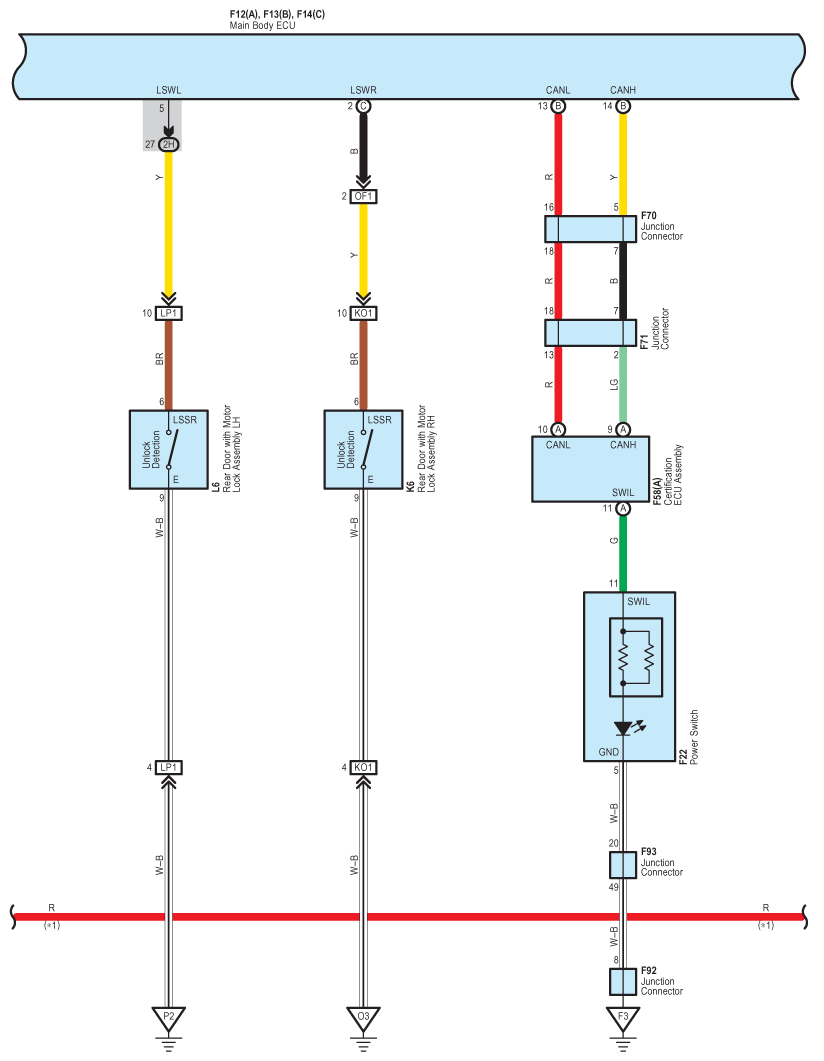

Fig 6: Interior Light - Wiring Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

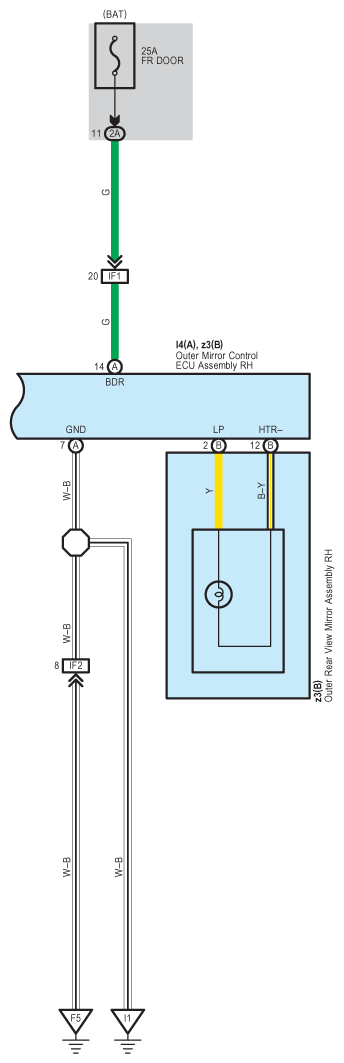

Fig 7: Interior Light - Wiring Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

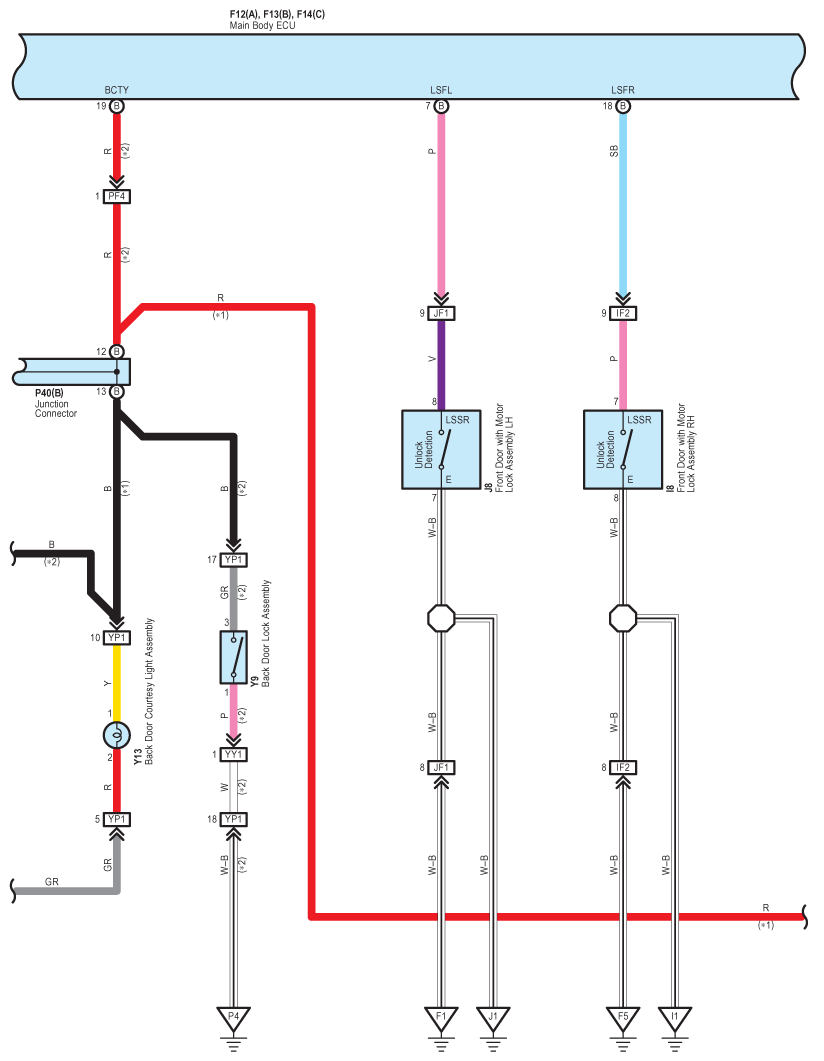

Fig 8: Interior Light - Wiring Diagram (8 Of 11)

Fig 9: Interior Light - Wiring Diagram (9 Of 11)

Fig 10: Interior Light - Wiring Diagram (10 Of 11)

Fig 11: Interior Light - Wiring Diagram (11 Of 11)
