Hybrid System: Notes

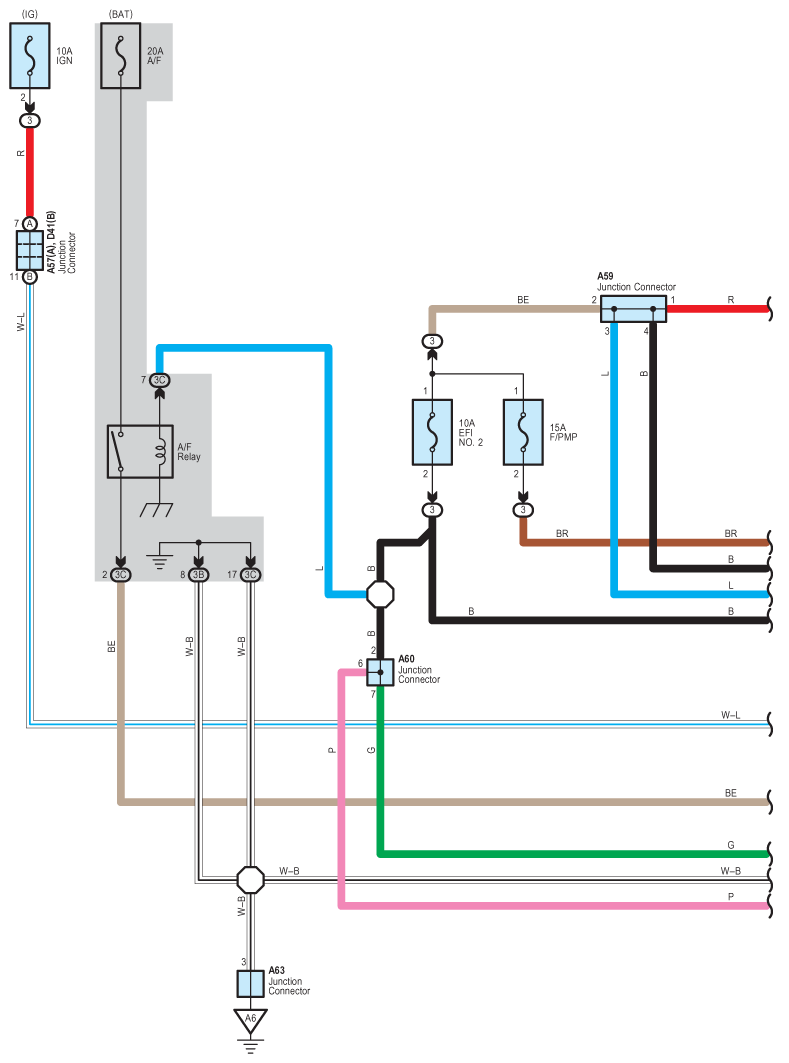

Fig 1: Hybrid System - Wiring Diagram (1 Of 30)

G08942585

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

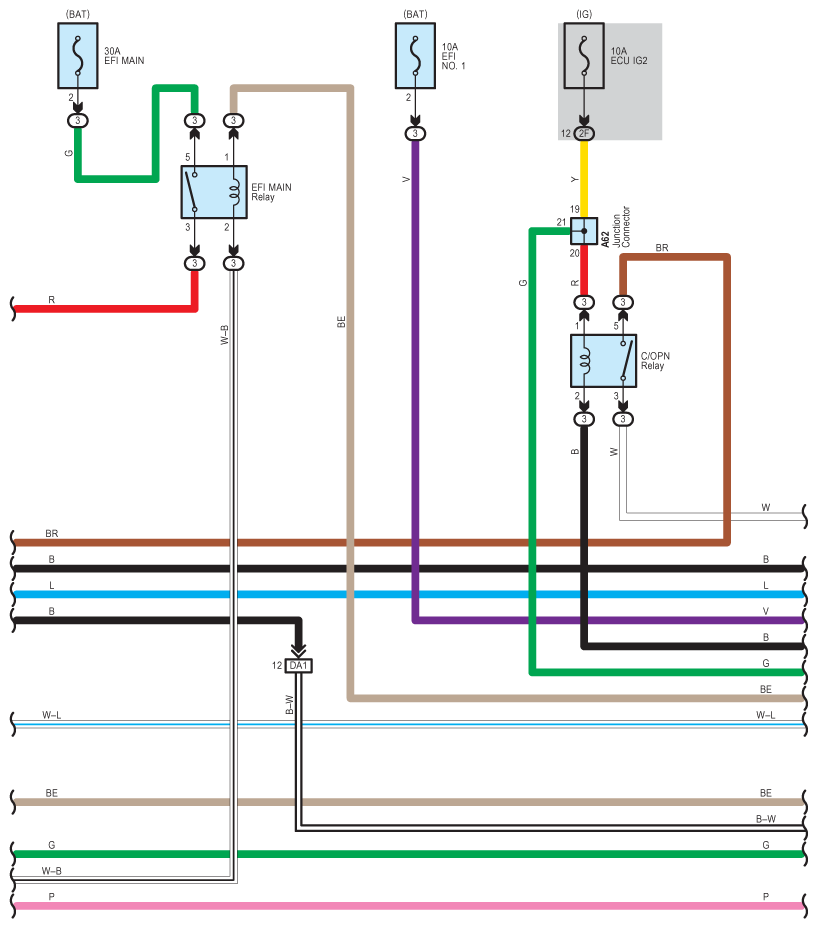

Fig 2: Hybrid System - Wiring Diagram (2 Of 30)

G08942586

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

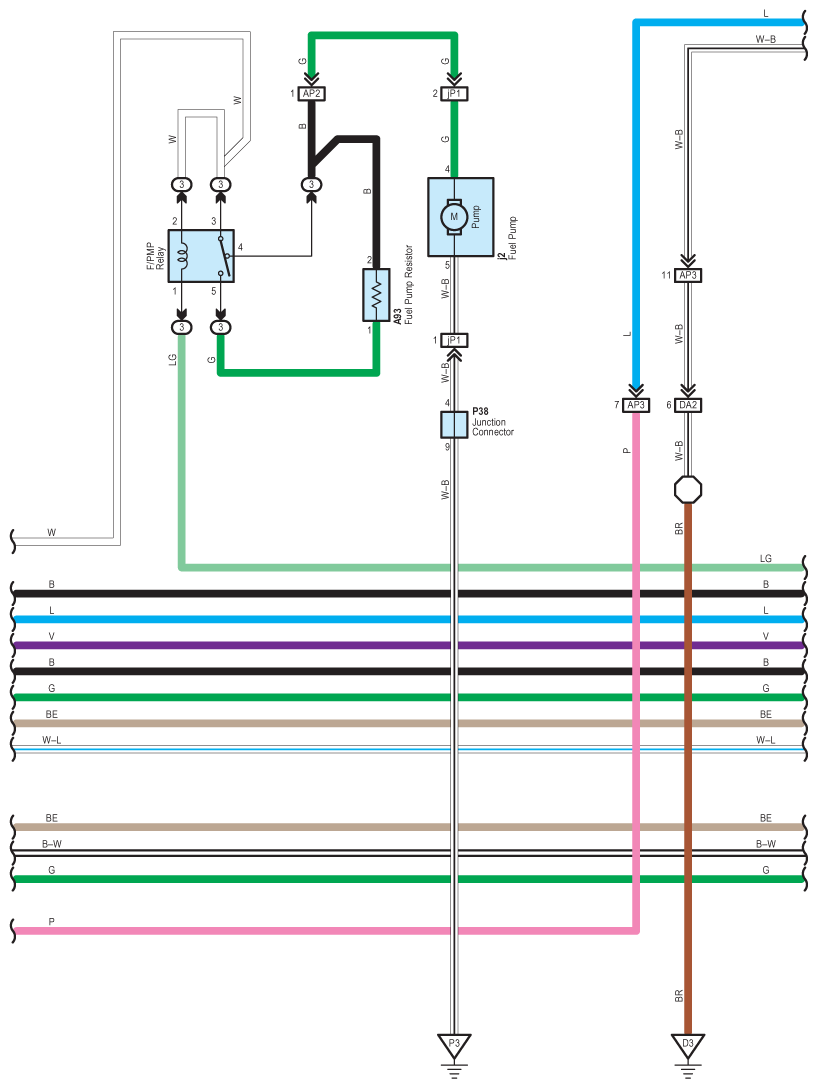

Fig 3: Hybrid System - Wiring Diagram (3 Of 30)

G08942587

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

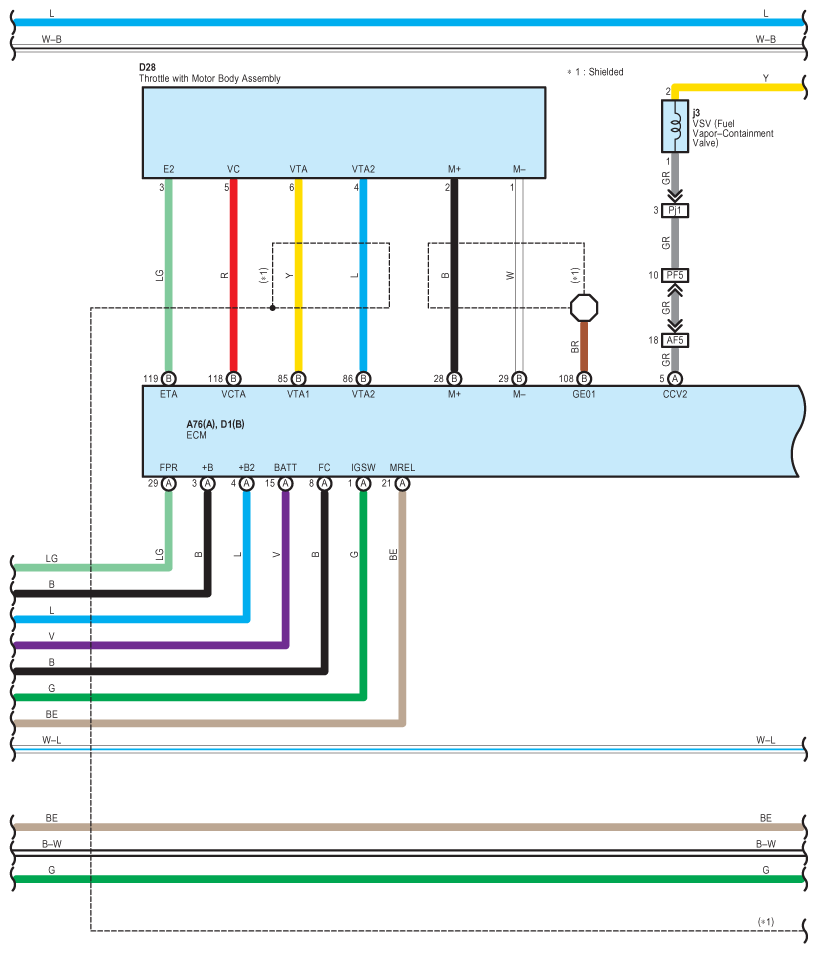

Fig 4: Hybrid System - Wiring Diagram (4 Of 30)

G08942588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

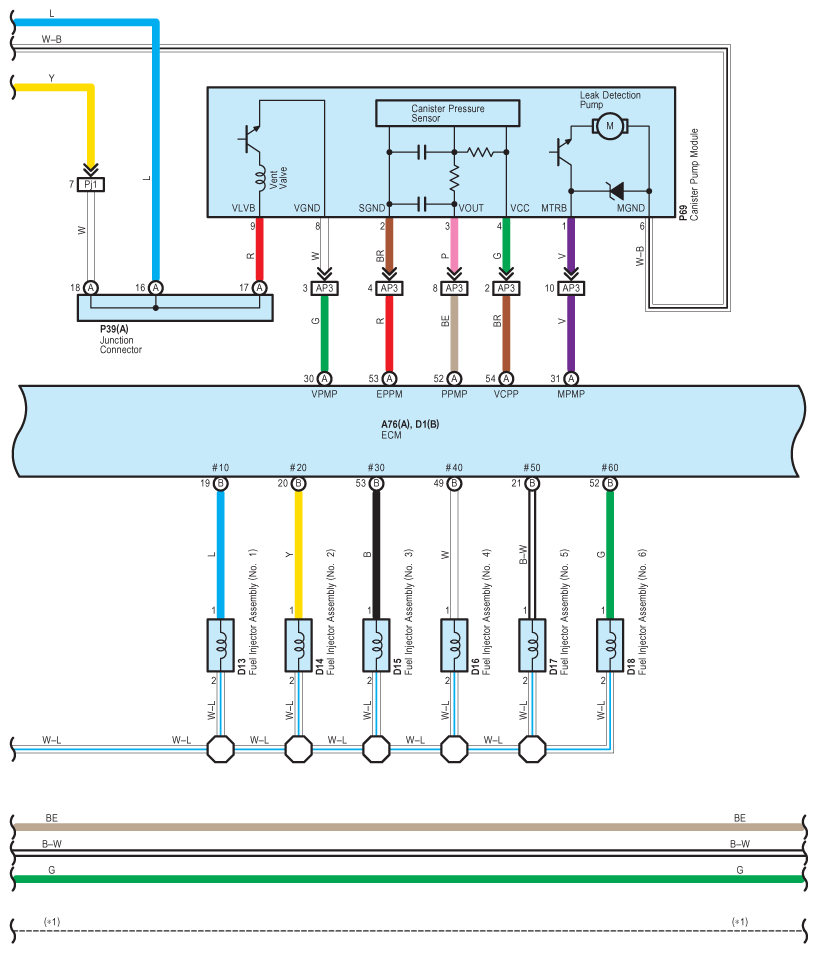

Fig 5: Hybrid System - Wiring Diagram (5 Of 30)

G08942589

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

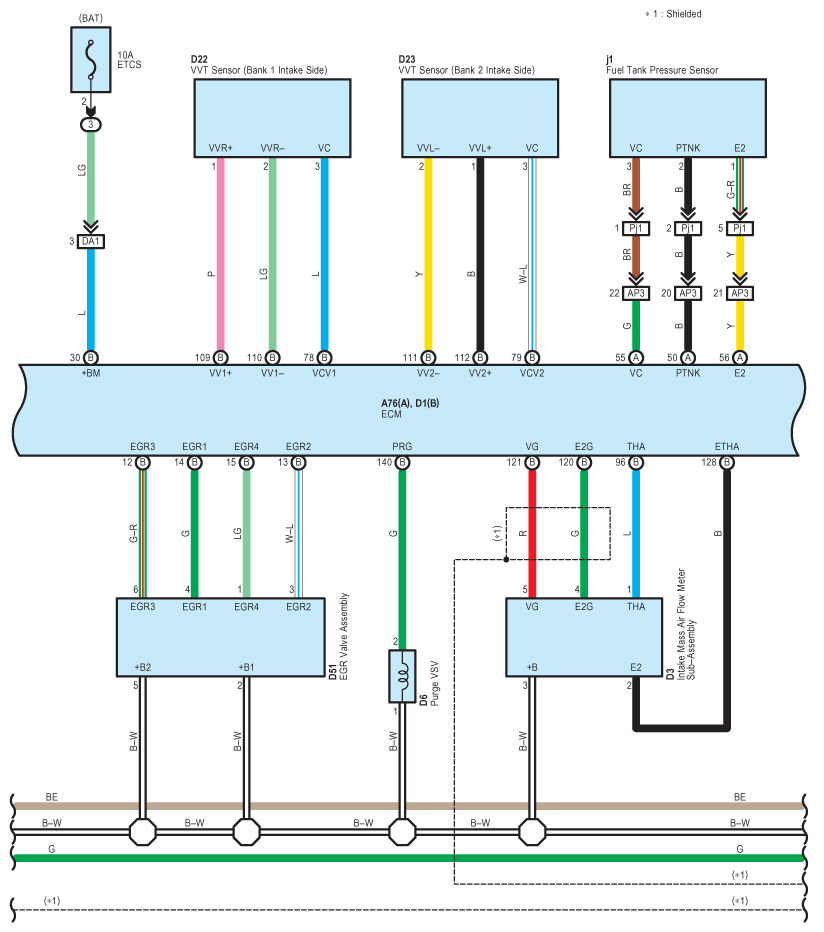

Fig 6: Hybrid System - Wiring Diagram (6 Of 30)

G08942590

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

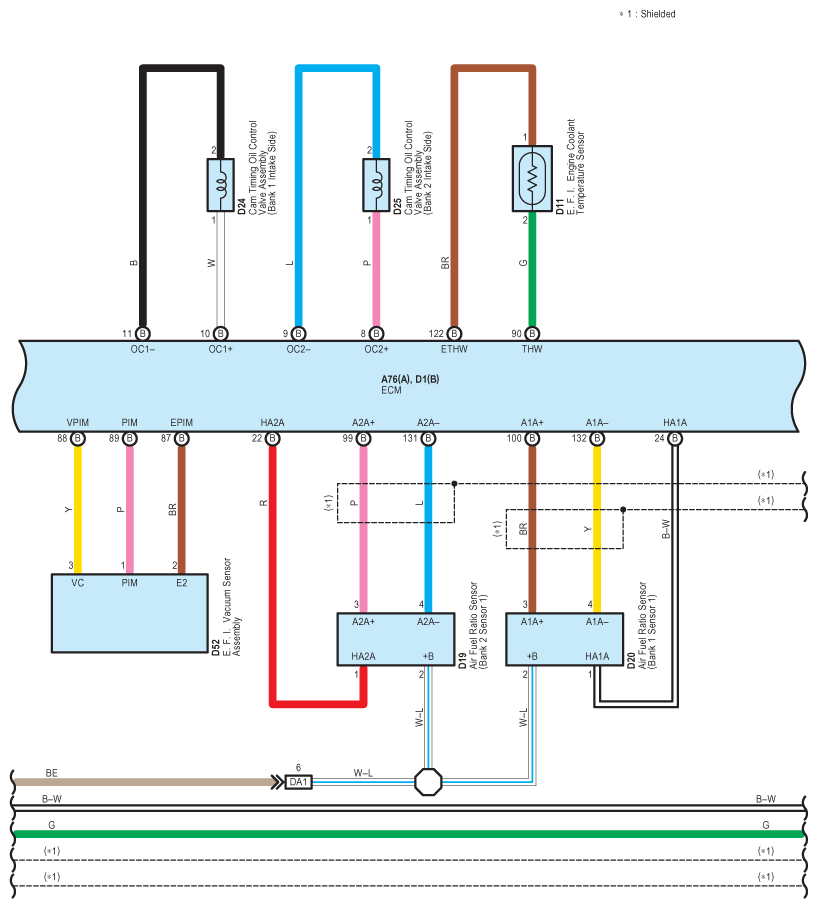

Fig 7: Hybrid System - Wiring Diagram (7 Of 30)

G08942591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

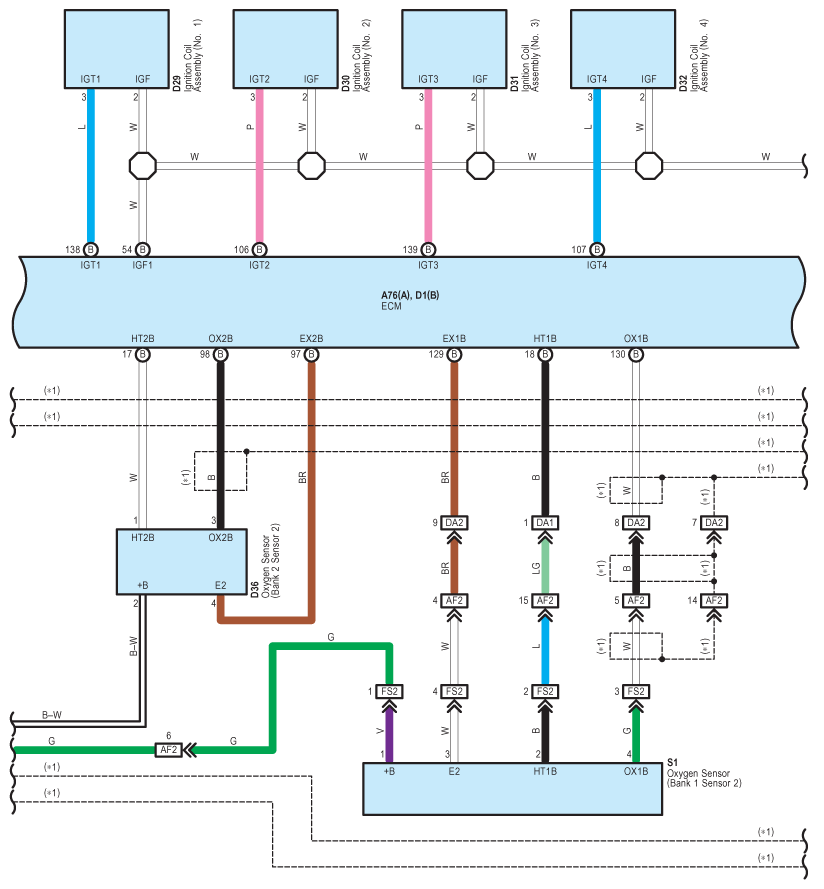

Fig 8: Hybrid System - Wiring Diagram (8 Of 30)

G08942592

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

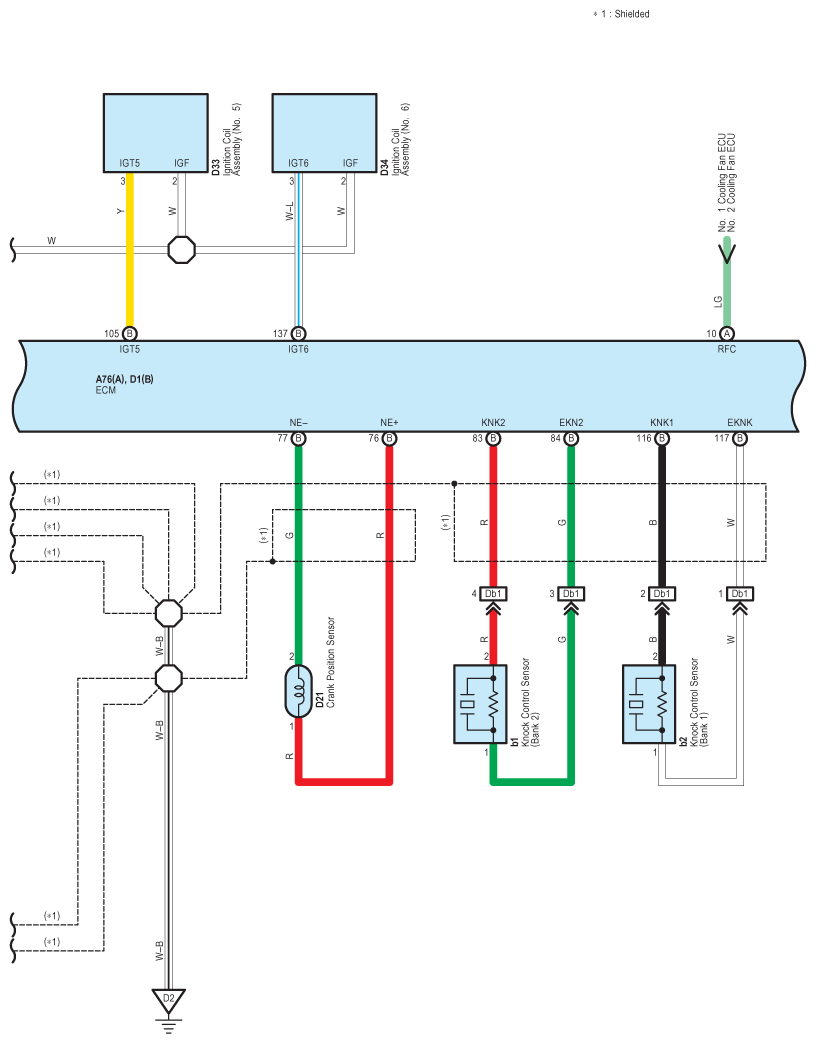

Fig 9: Hybrid System - Wiring Diagram (9 Of 30)

G08942593

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

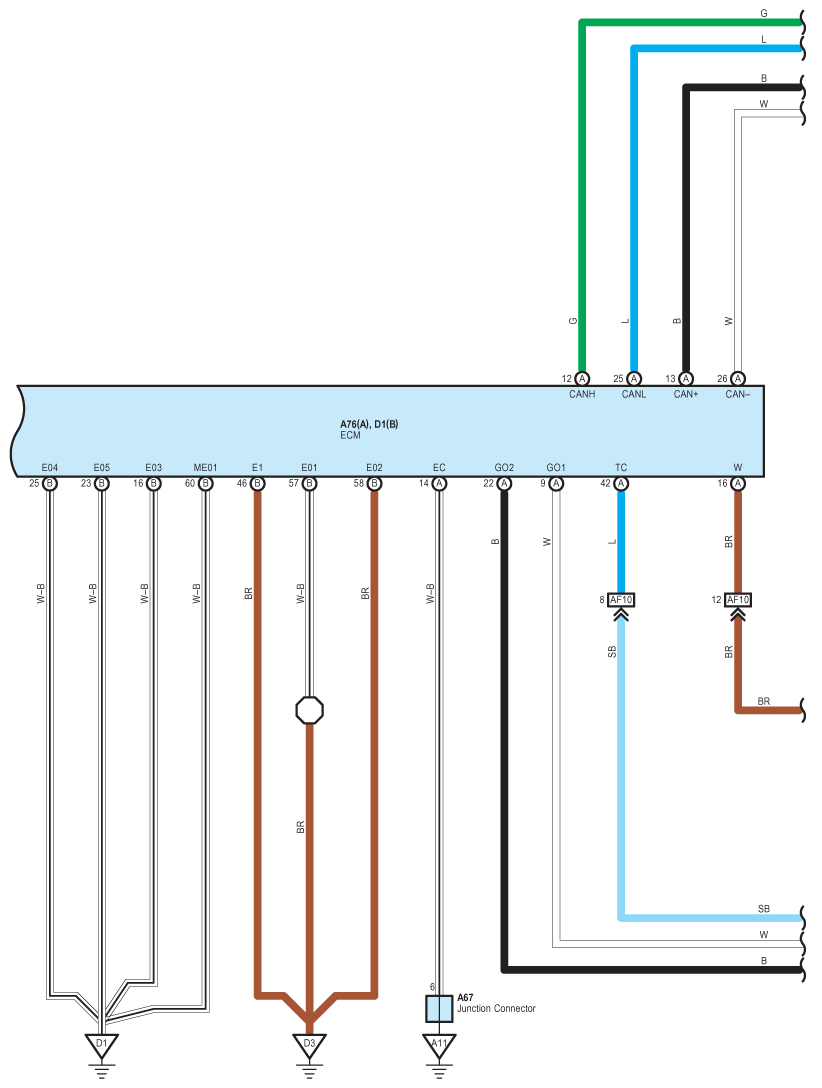

Fig 10: Hybrid System - Wiring Diagram (10 Of 30)

G08942594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

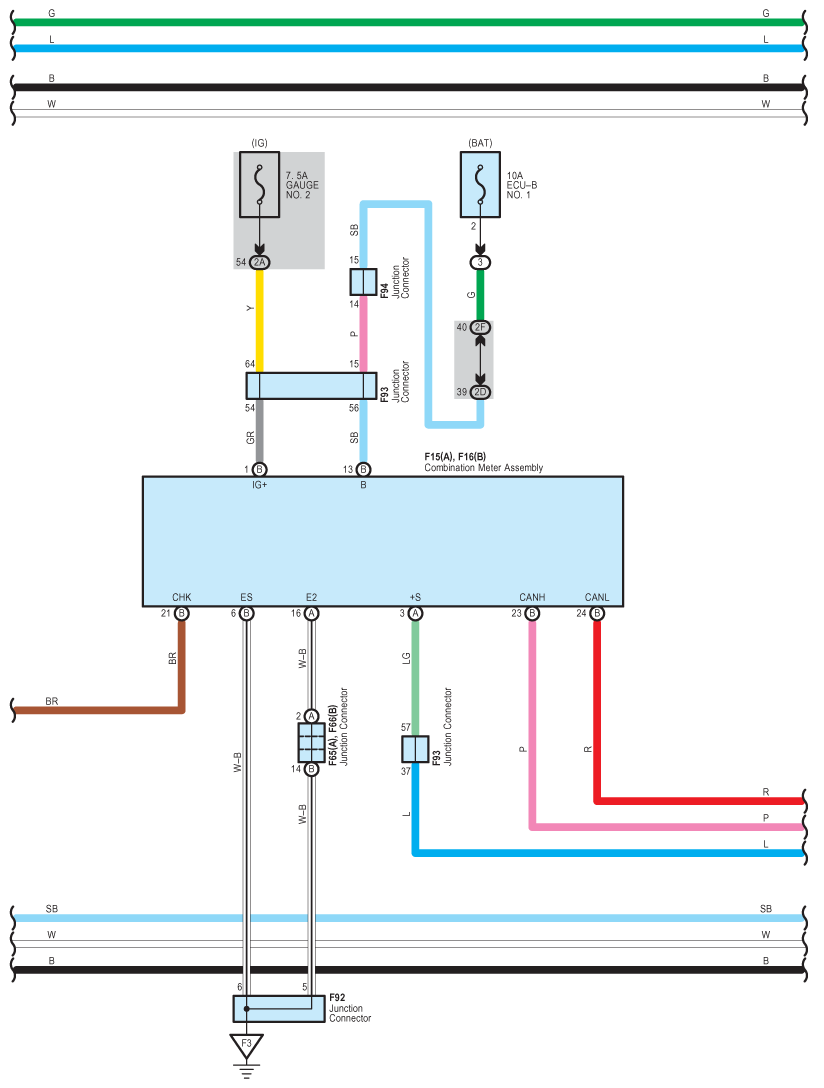

Fig 11: Hybrid System - Wiring Diagram (11 Of 30)

G08942595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

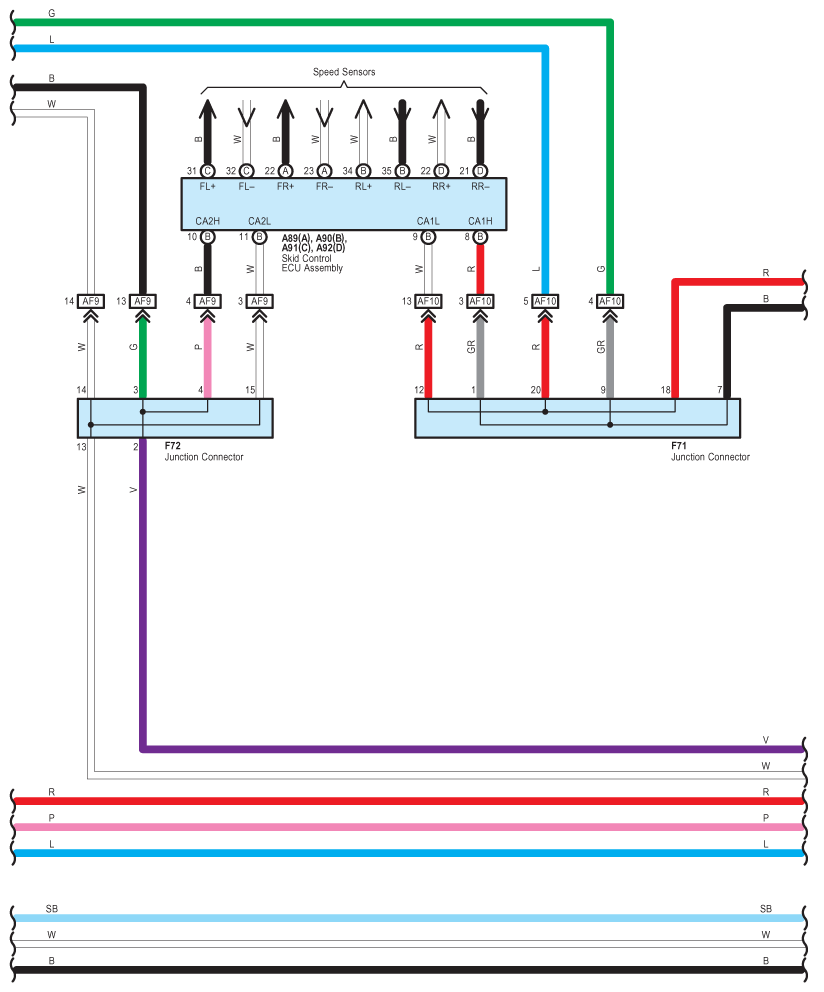

Fig 12: Hybrid System - Wiring Diagram (12 Of 30)

G08942596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

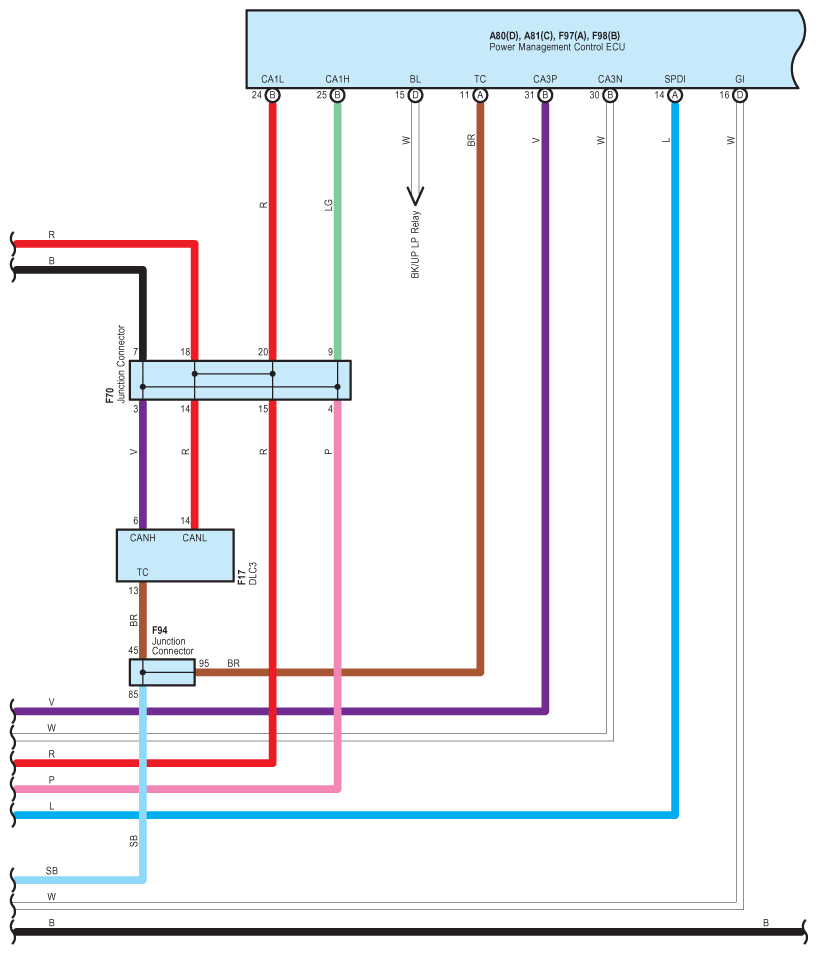

Fig 13: Hybrid System - Wiring Diagram (13 Of 30)

G08942597

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

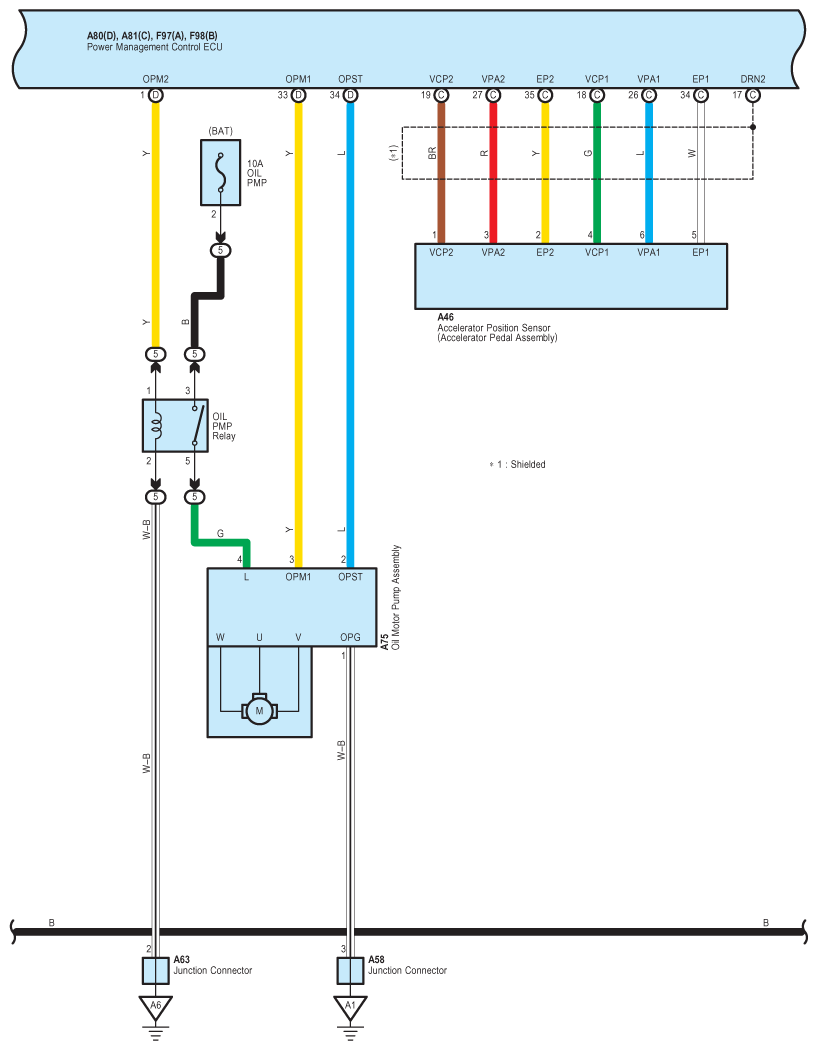

Fig 14: Hybrid System - Wiring Diagram (14 Of 30)

G08942598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

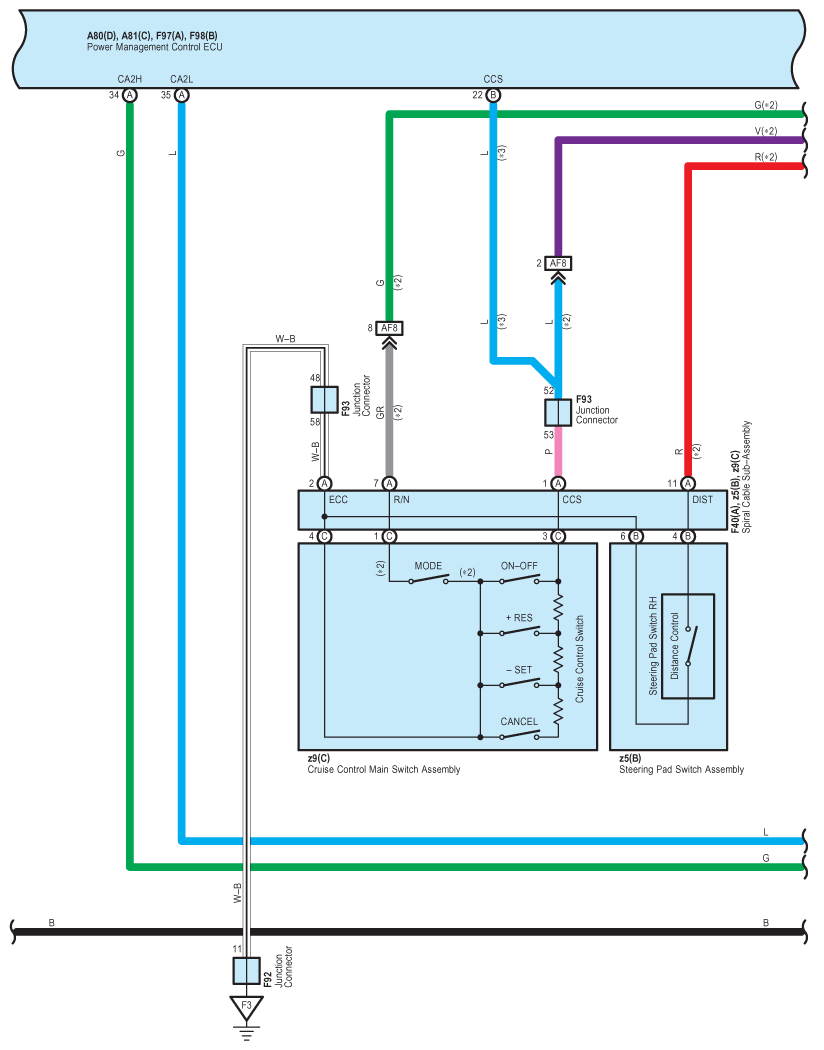

Fig 15: Hybrid System - Wiring Diagram (15 Of 30)

G08942599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

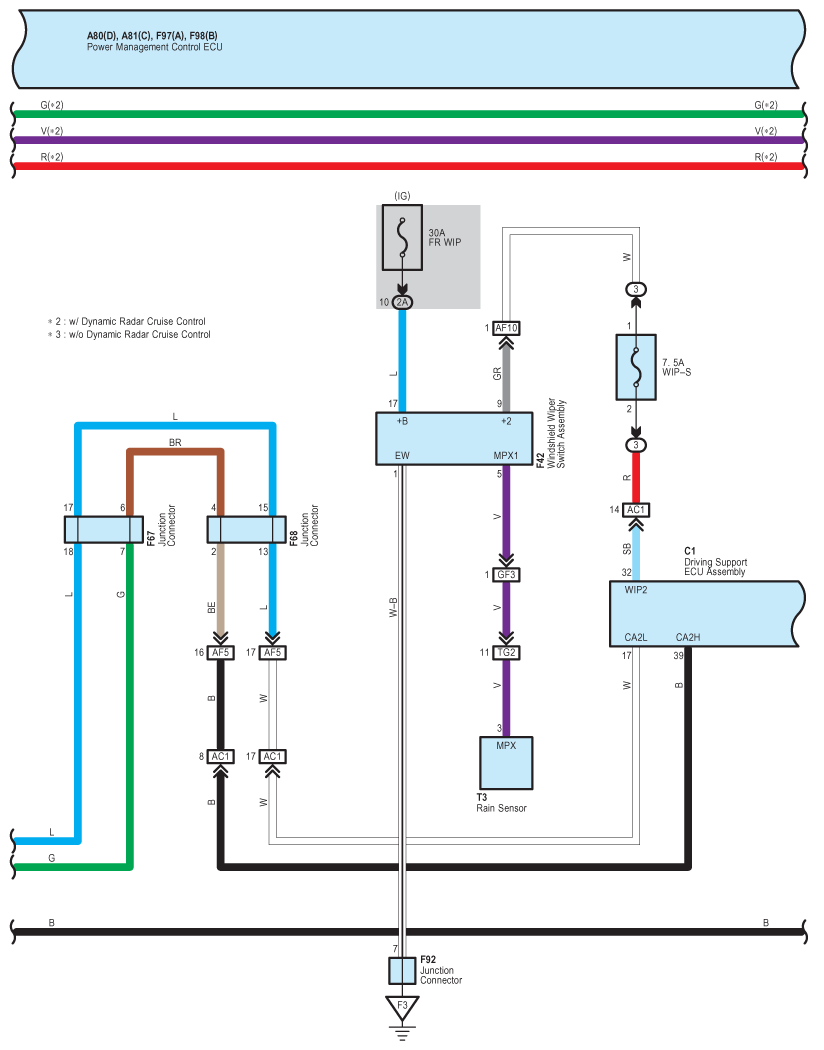

Fig 16: Hybrid System - Wiring Diagram (16 Of 30)

G08942600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

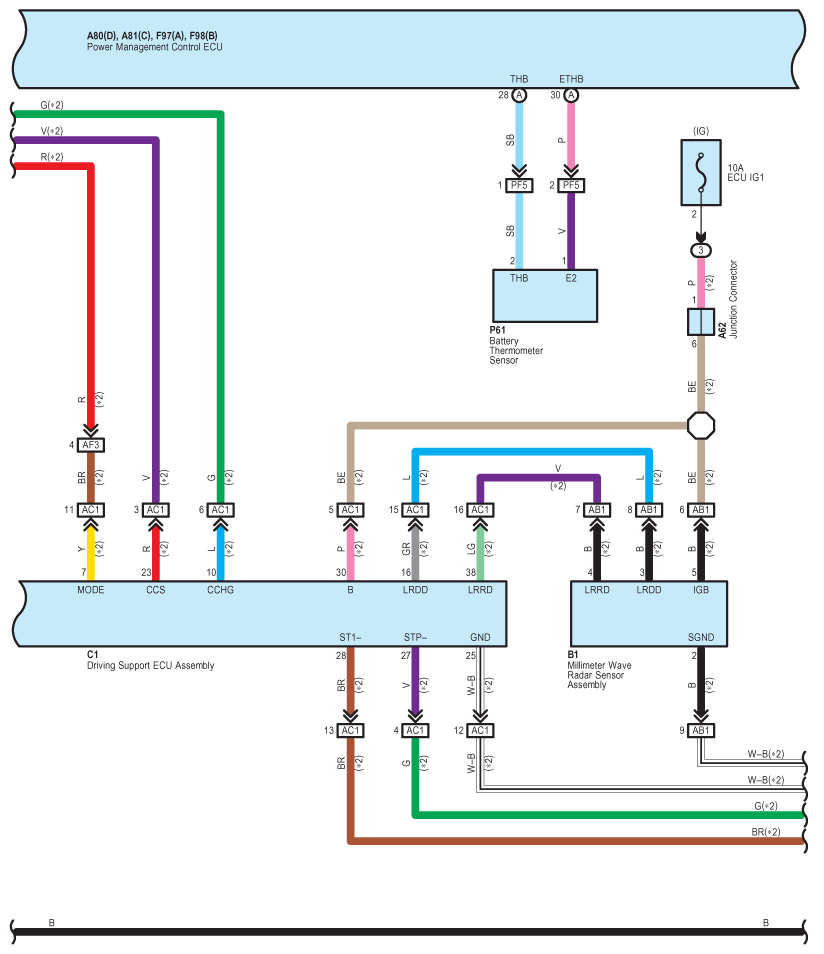

Fig 17: Hybrid System - Wiring Diagram (17 Of 30)

G08942601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

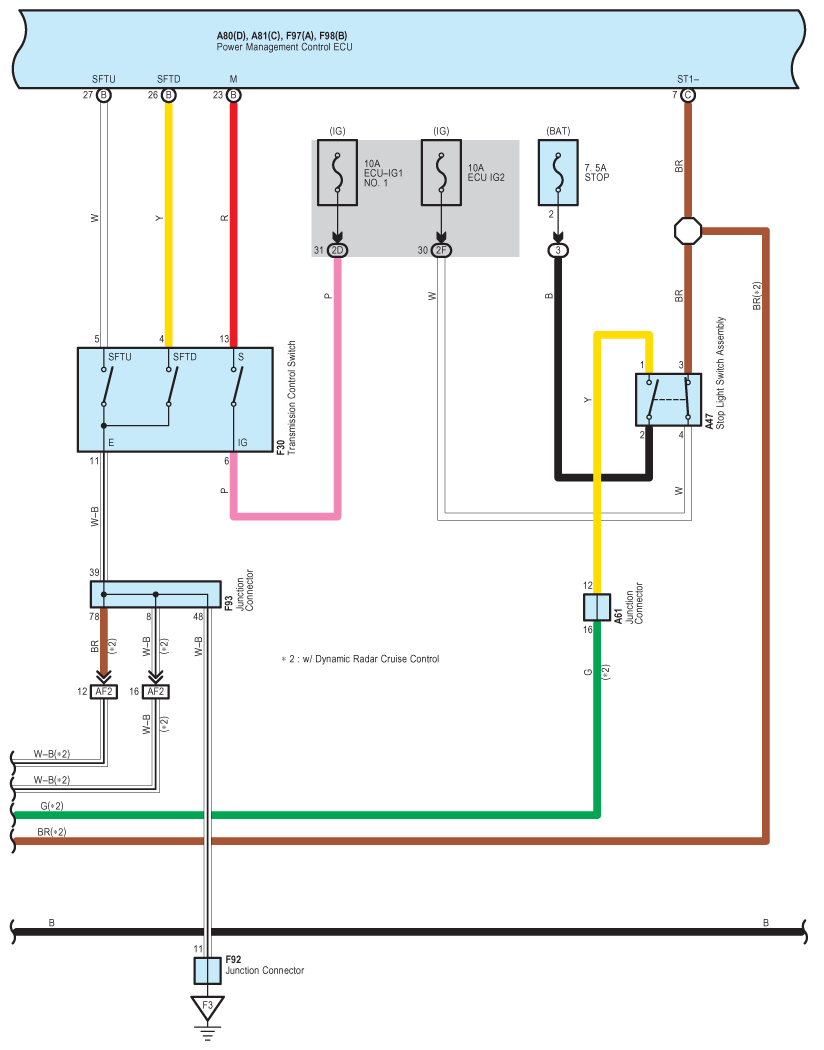

Fig 18: Hybrid System - Wiring Diagram (18 Of 30)

G08942602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

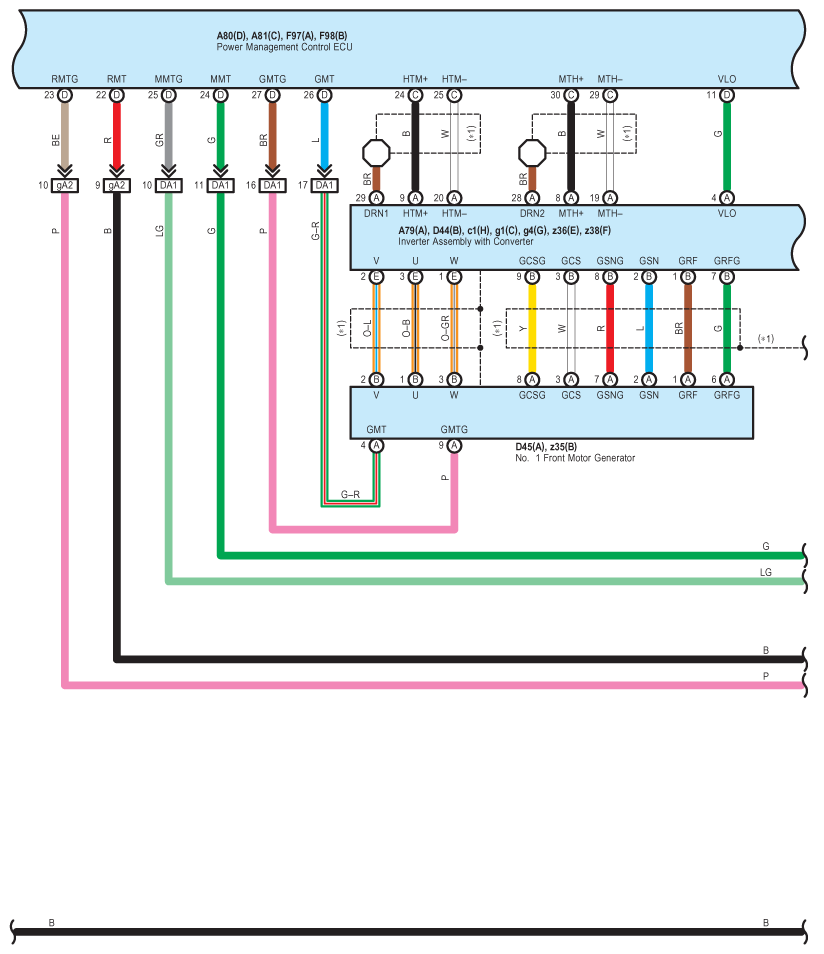

Fig 19: Hybrid System - Wiring Diagram (19 Of 30)

G08942603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

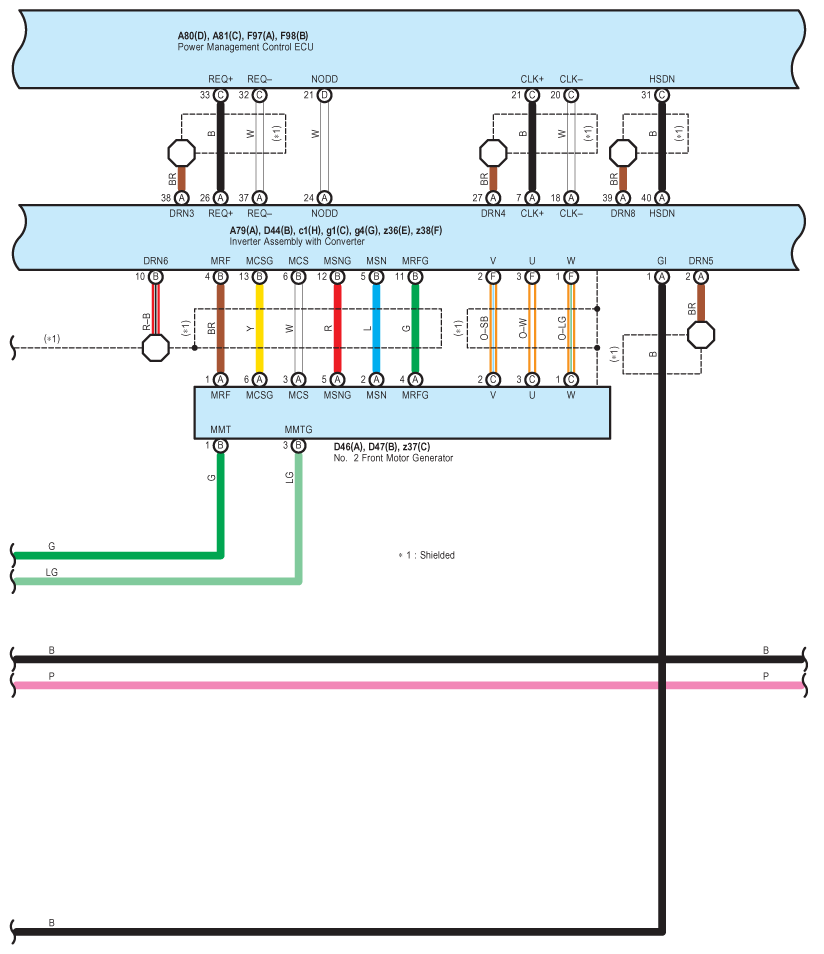

Fig 20: Hybrid System - Wiring Diagram (20 Of 30)

G08942604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

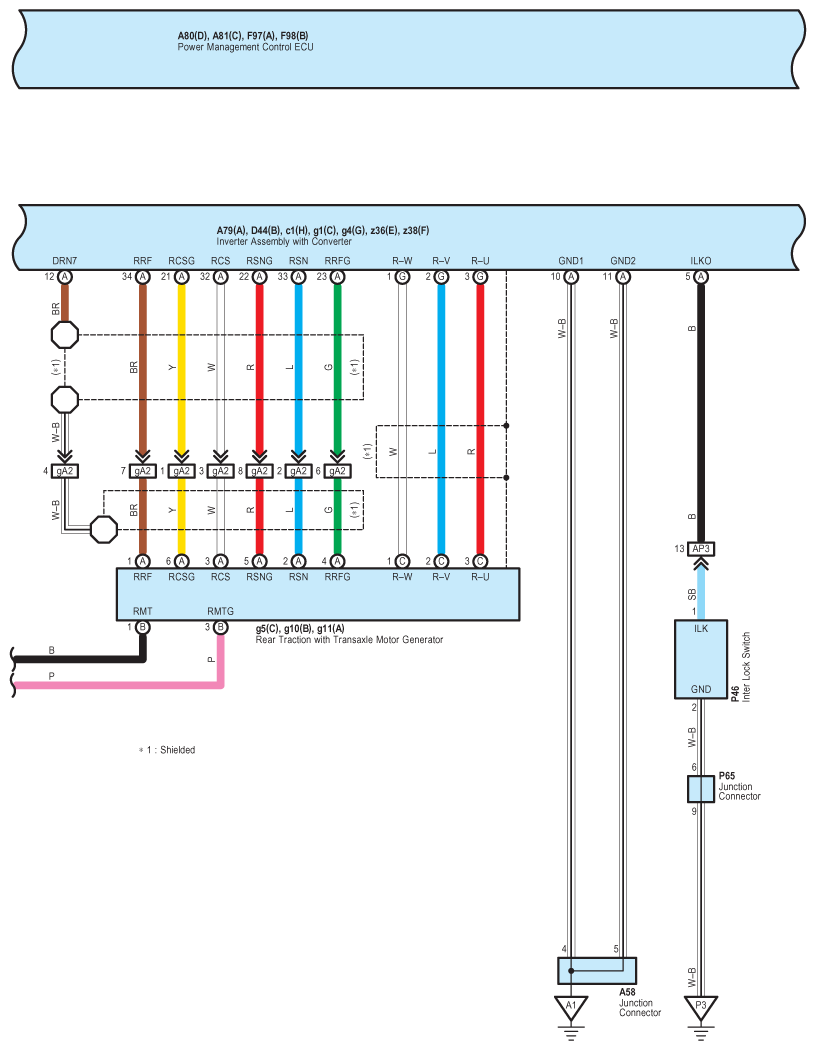

Fig 21: Hybrid System - Wiring Diagram (21 Of 30)

G08942605

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

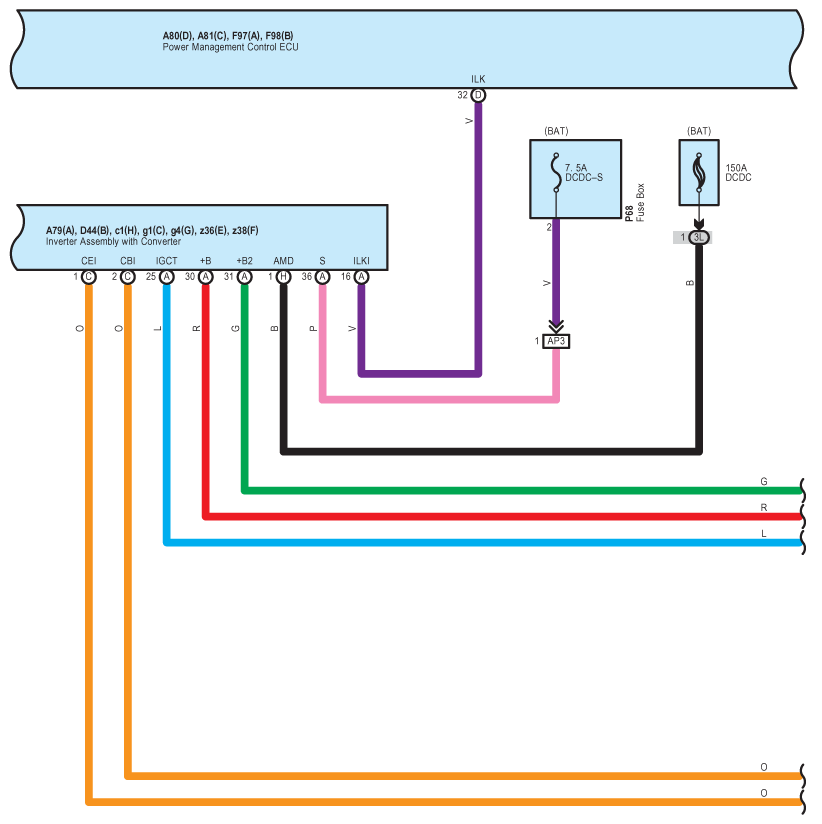

Fig 22: Hybrid System - Wiring Diagram (22 Of 30)

G08942606

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

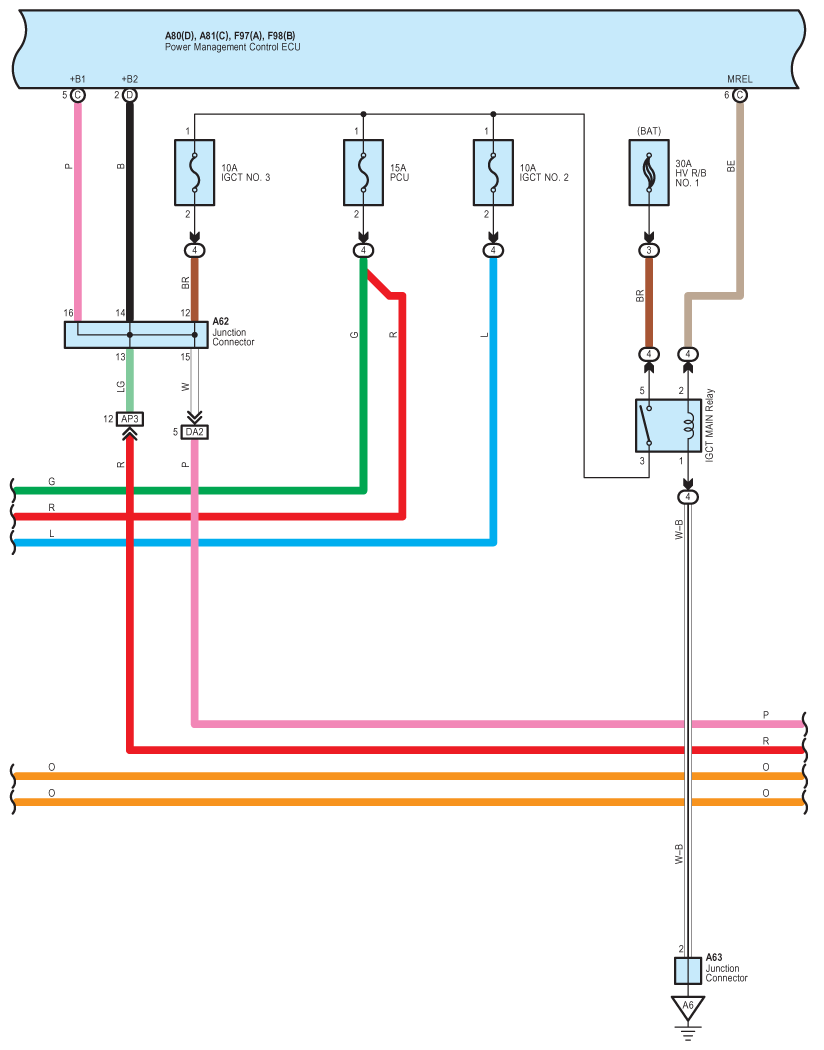

Fig 23: Hybrid System - Wiring Diagram (23 Of 30)

G08942607

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

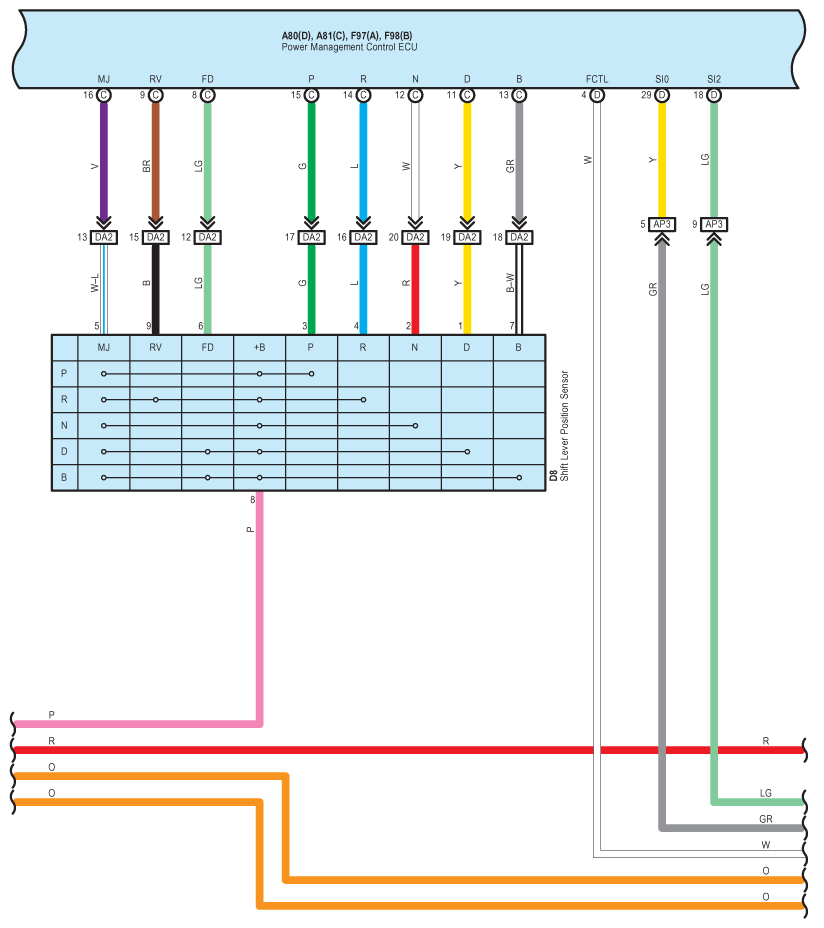

Fig 24: Hybrid System - Wiring Diagram (24 Of 30)

G08942608

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

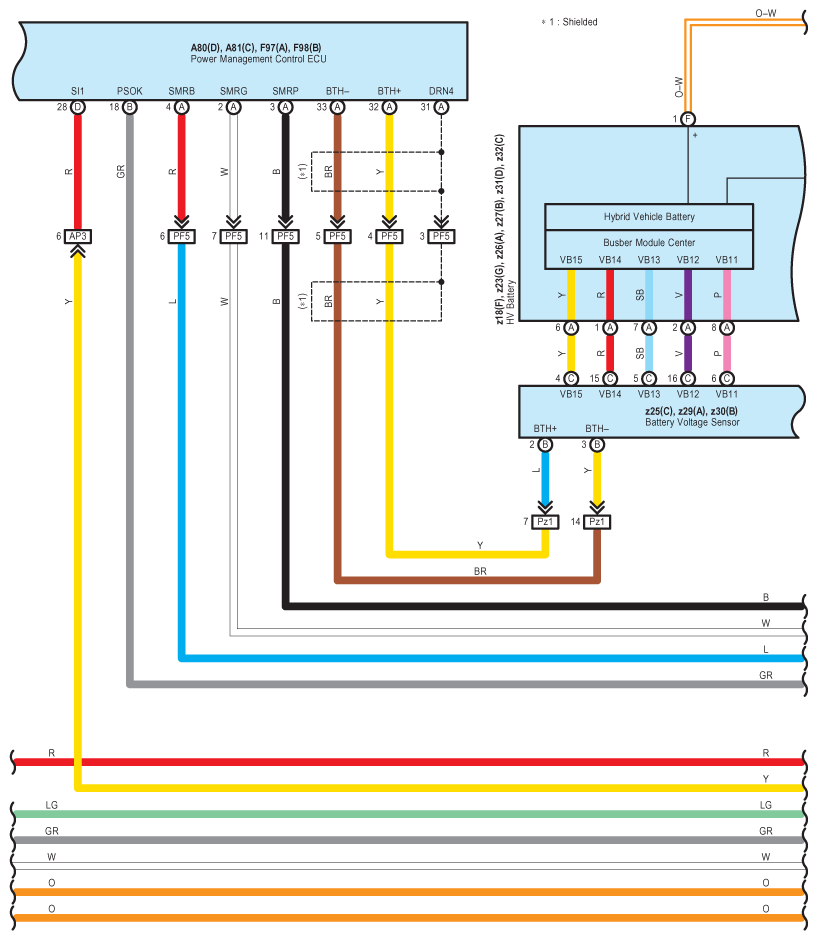

Fig 25: Hybrid System - Wiring Diagram (25 Of 30)

G08942609

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

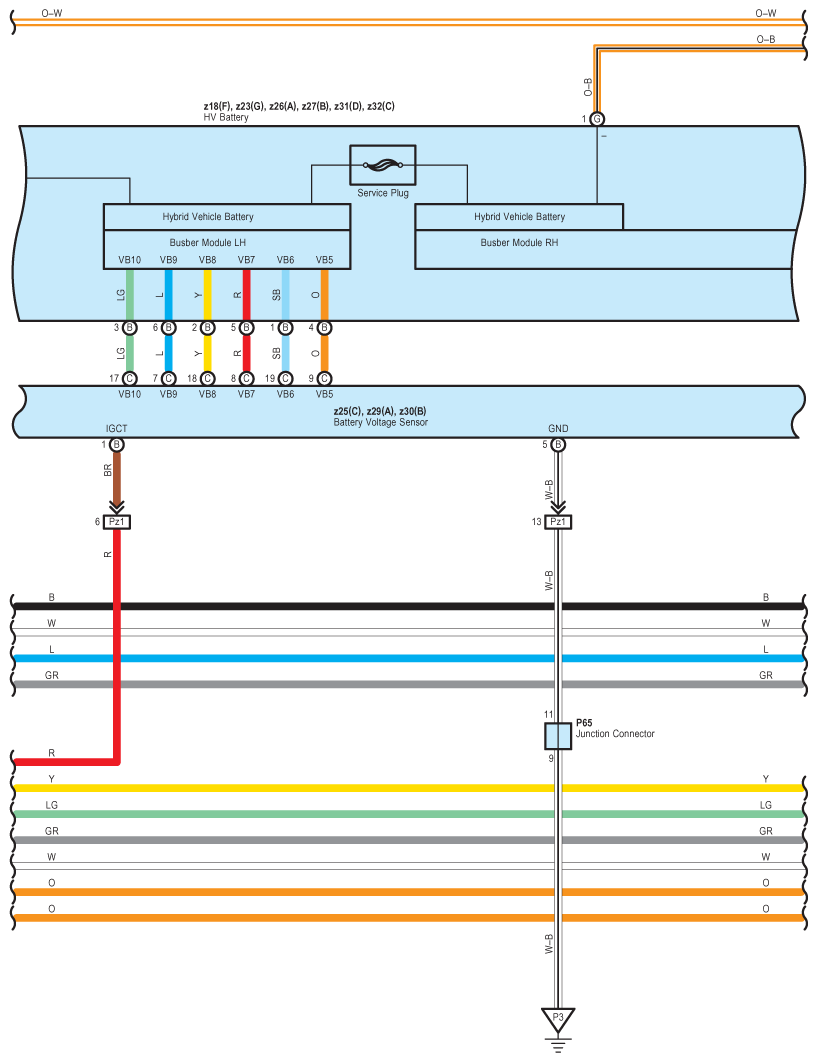

Fig 26: Hybrid System - Wiring Diagram (26 Of 30)

G08942610

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

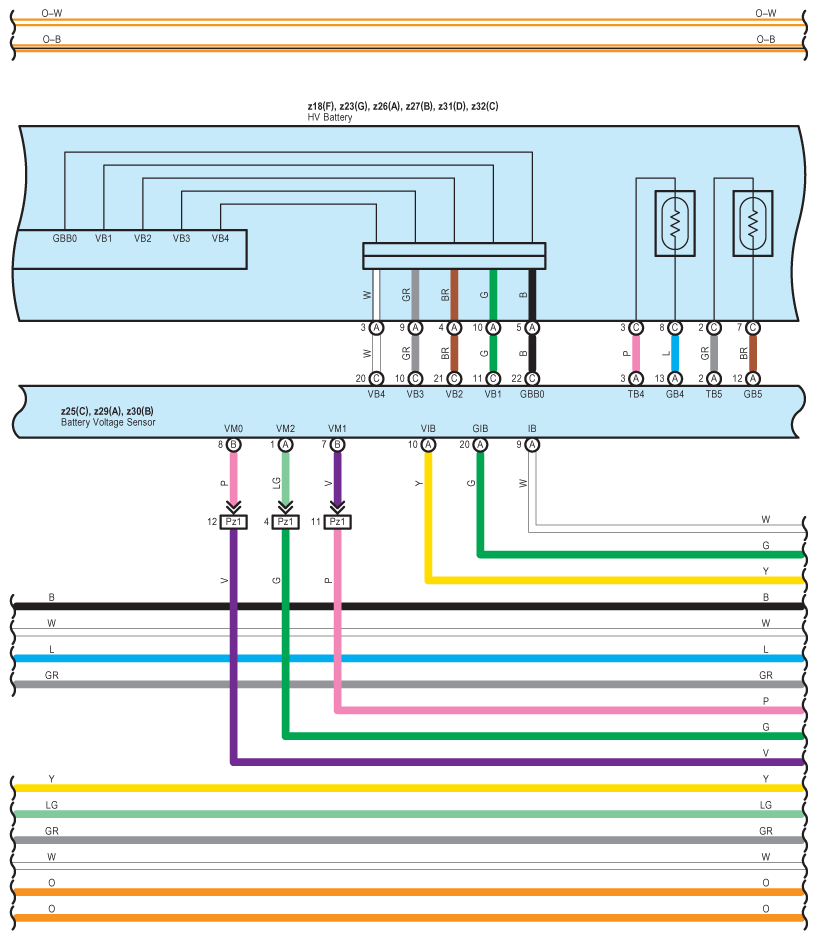

Fig 27: Hybrid System - Wiring Diagram (27 Of 30)

G08942611

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

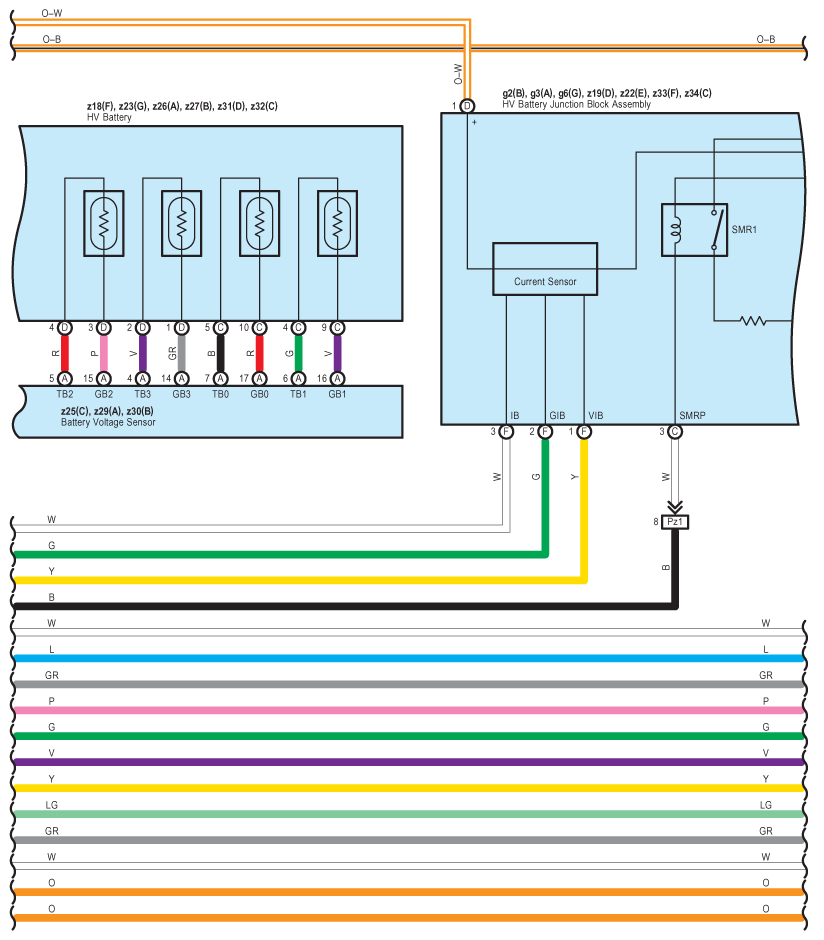

Fig 28: Hybrid System - Wiring Diagram (28 Of 30)

G08942612

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

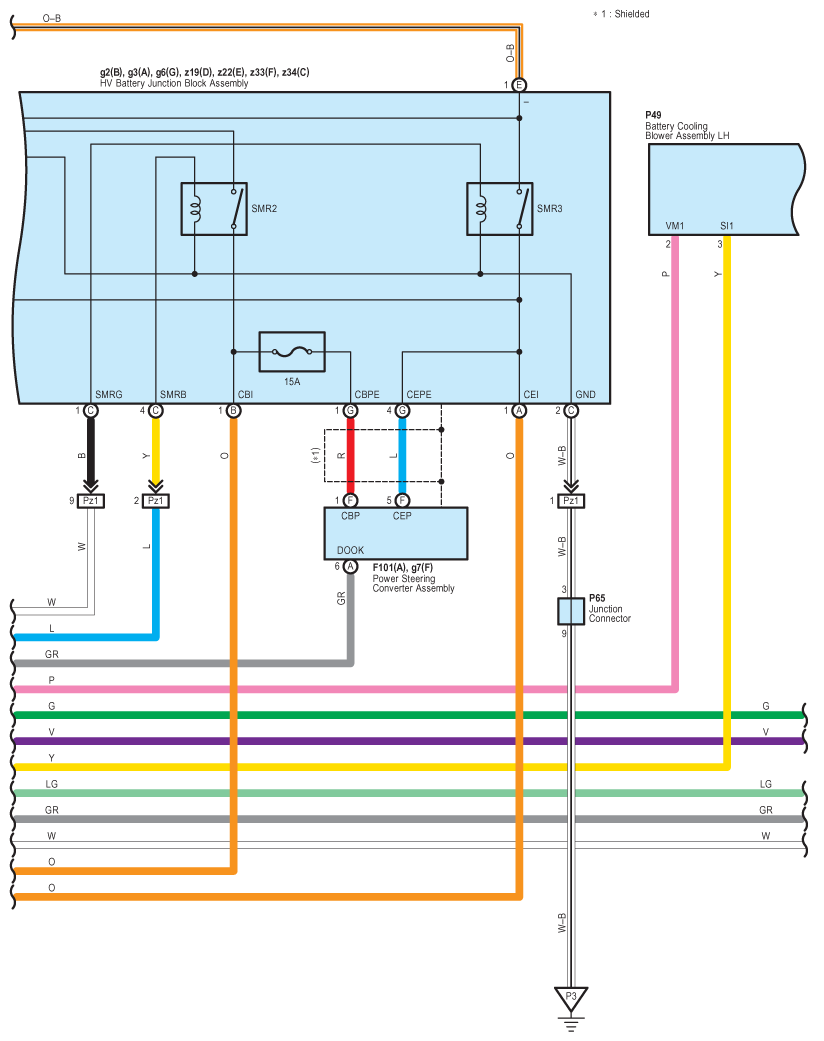

Fig 29: Hybrid System - Wiring Diagram (29 Of 30)

G08942613

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

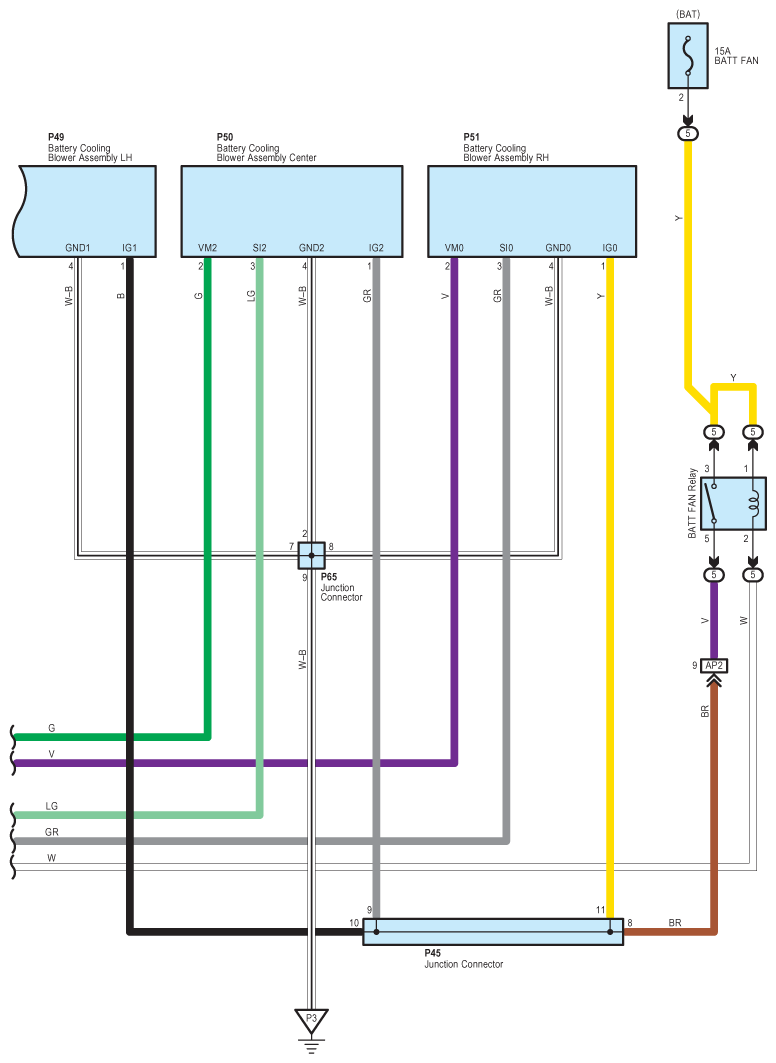

Fig 30: Hybrid System - Wiring Diagram (30 Of 30)

G08942614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
