Audio System (w/o LEXUS Navigation System): Notes

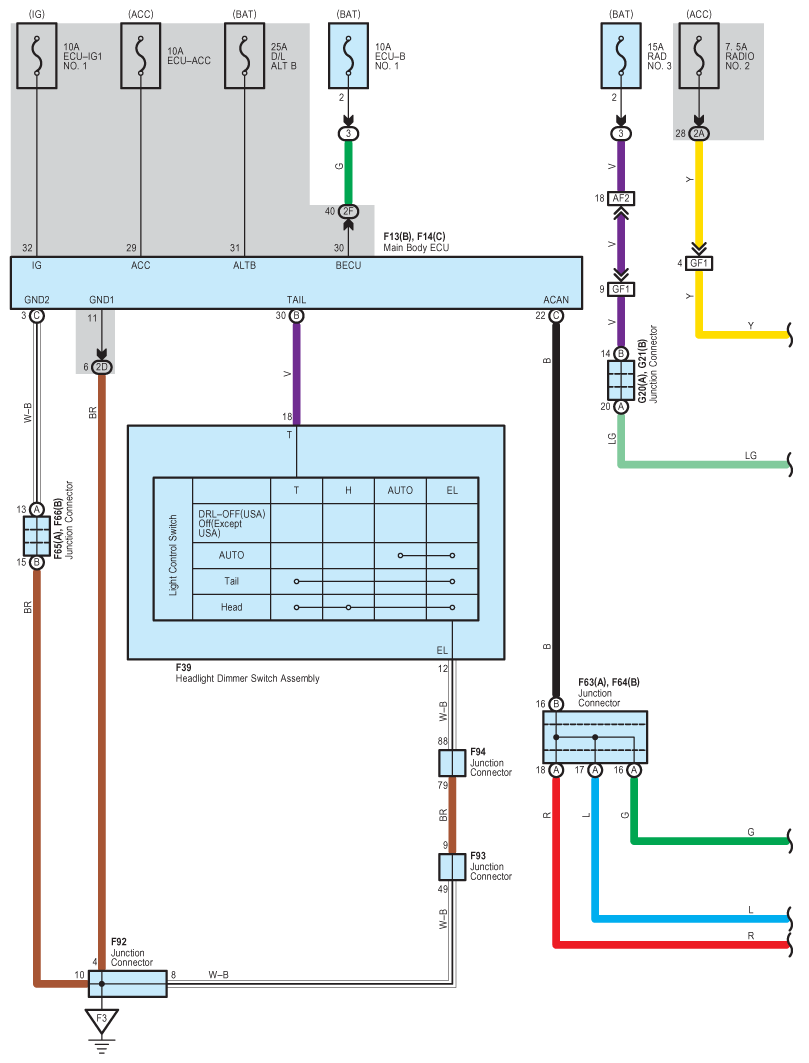

Fig 1: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (1 Of 10)
G08942865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

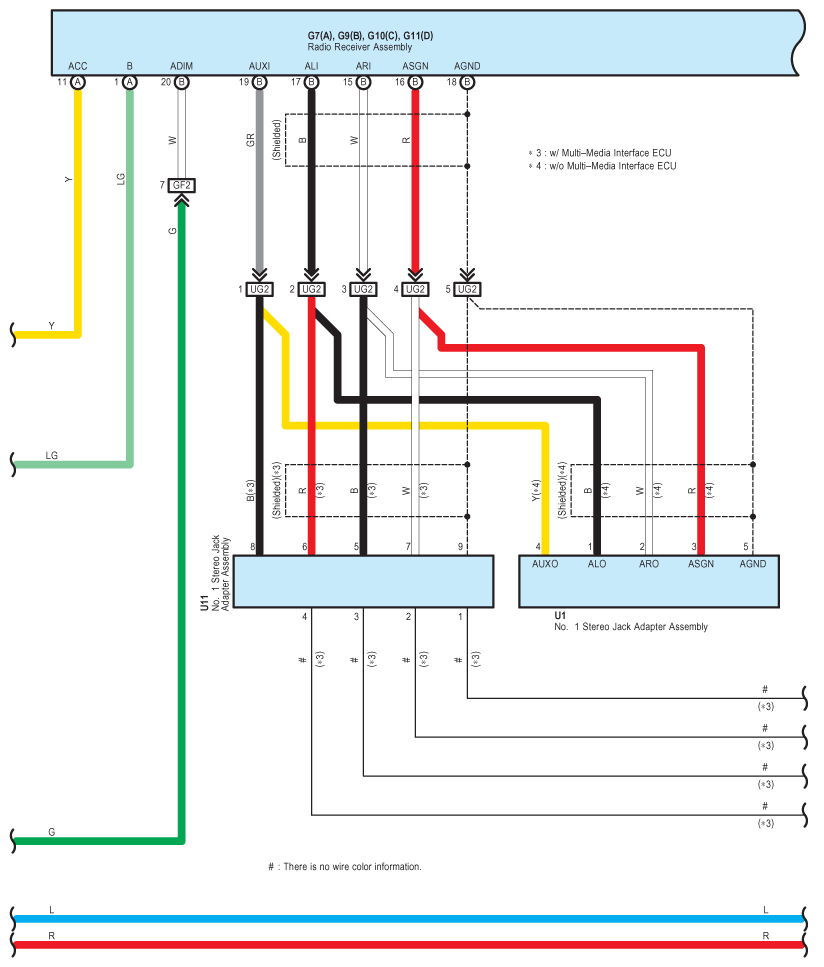

Fig 2: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (2 Of 10)
G08942866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

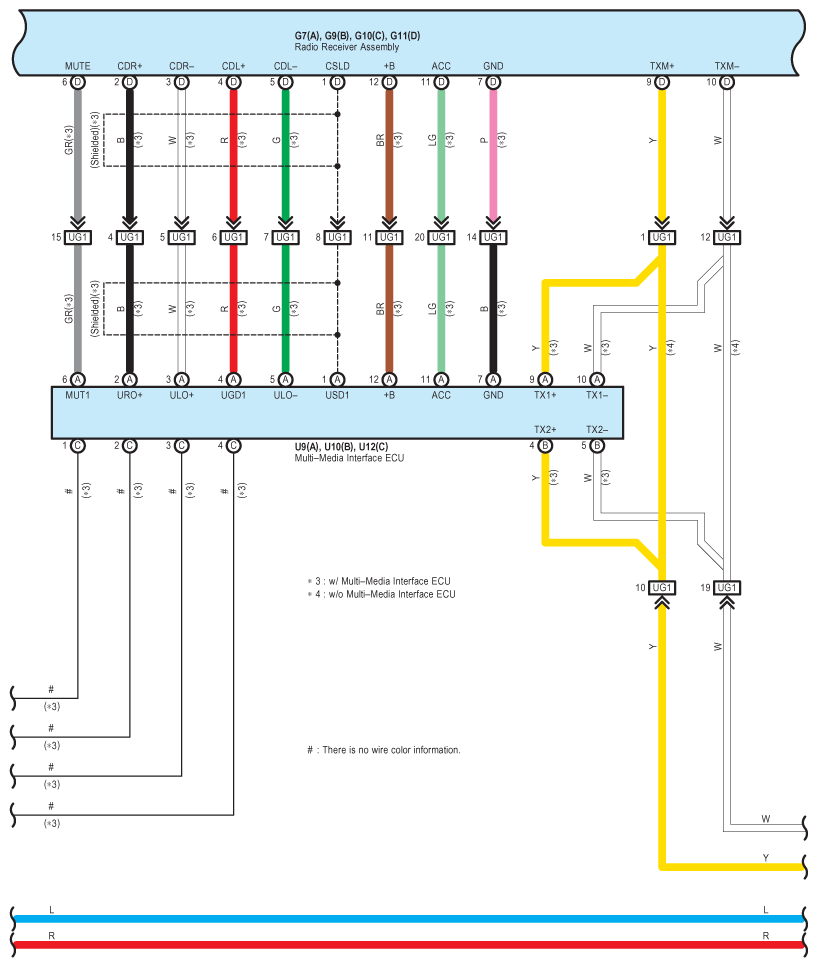

Fig 3: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (3 Of 10)
G08942867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

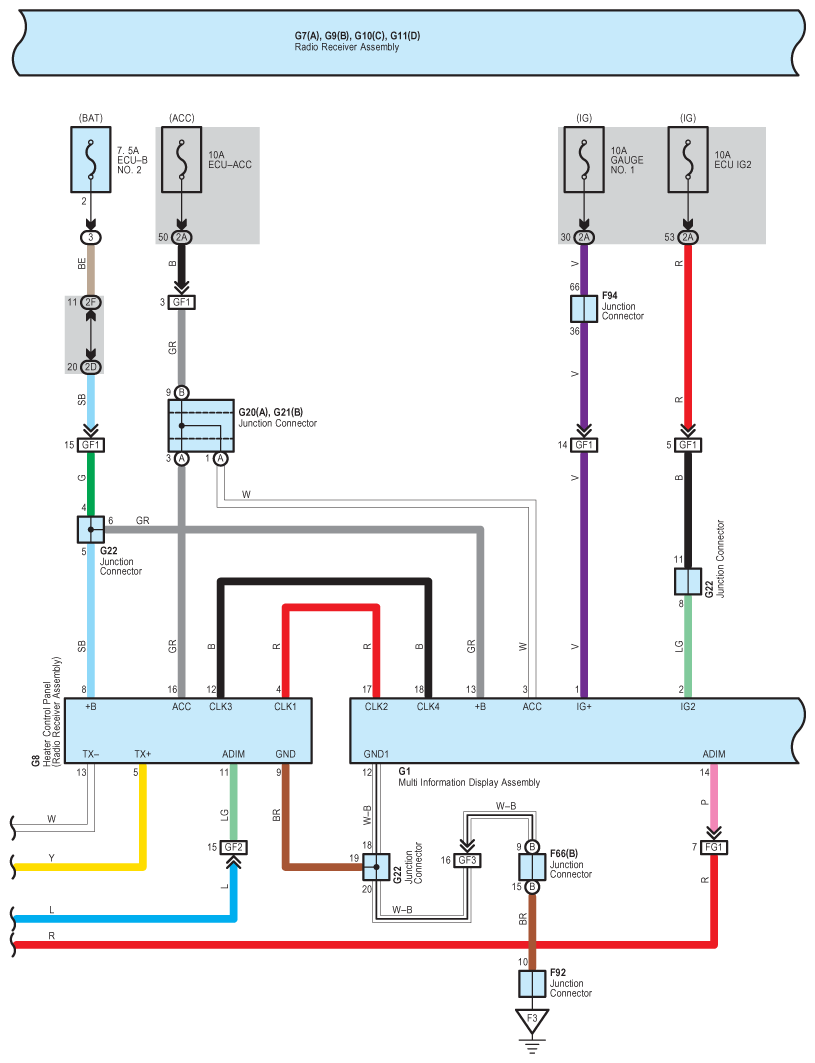

Fig 4: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (4 Of 10)
G08942868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

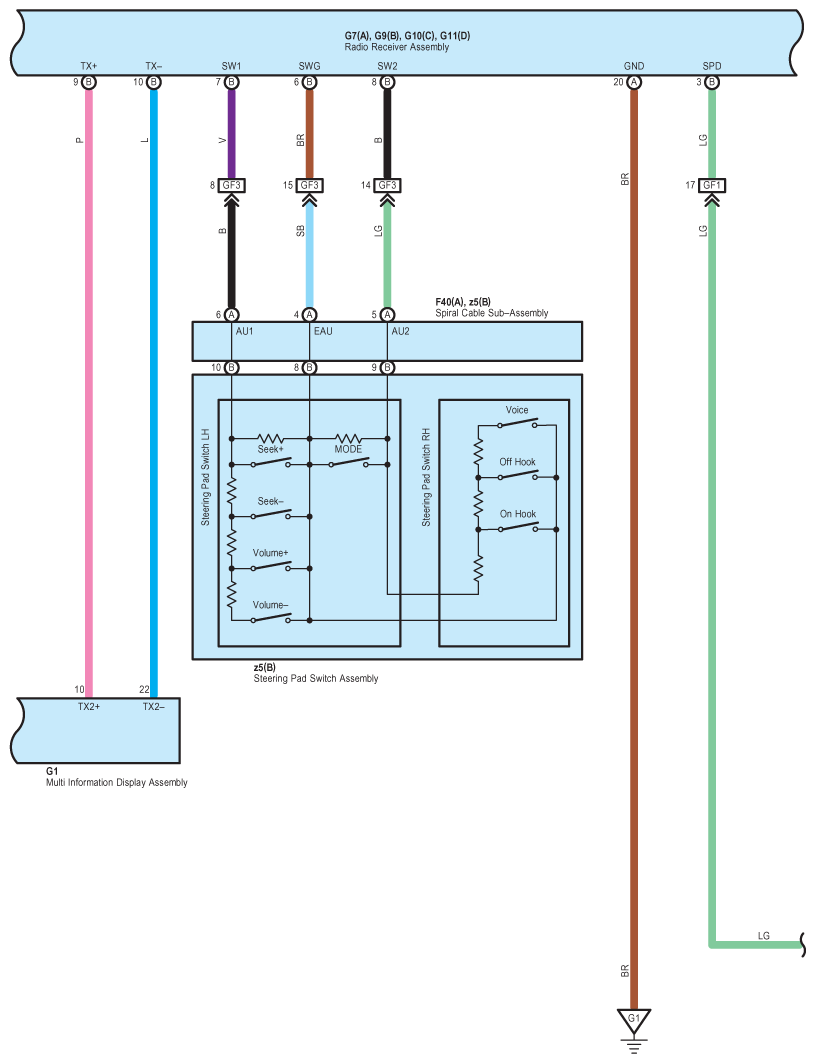

Fig 5: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (5 Of 10)
G08942869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

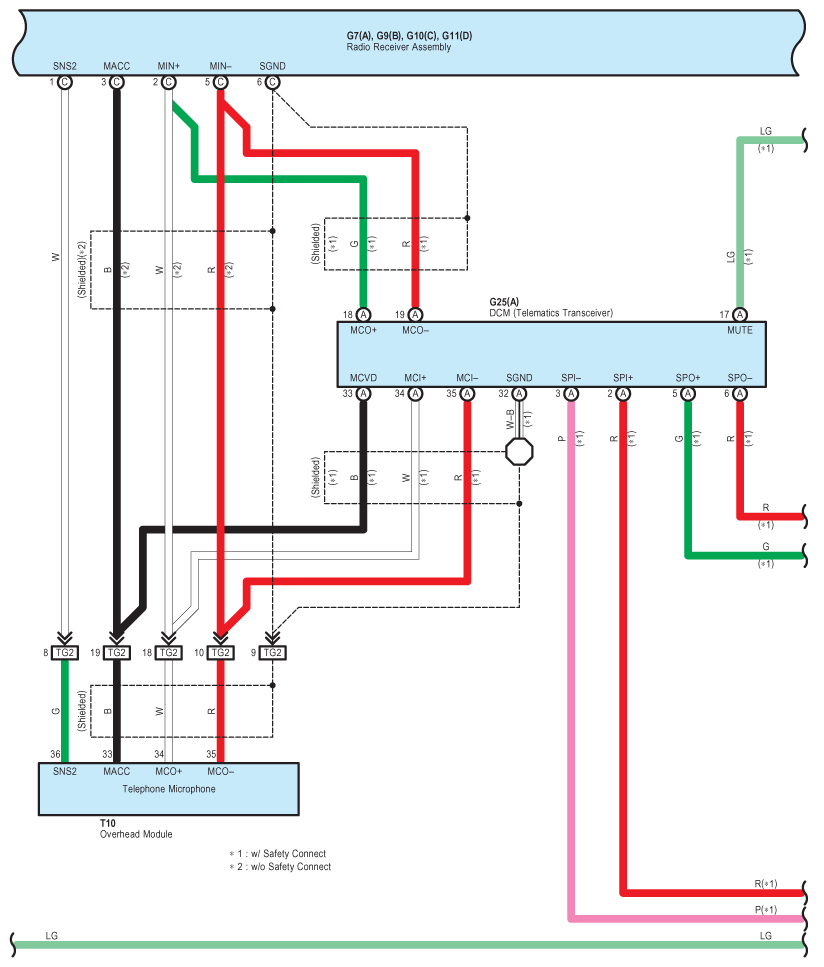

Fig 6: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (6 Of 10)
G08942870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

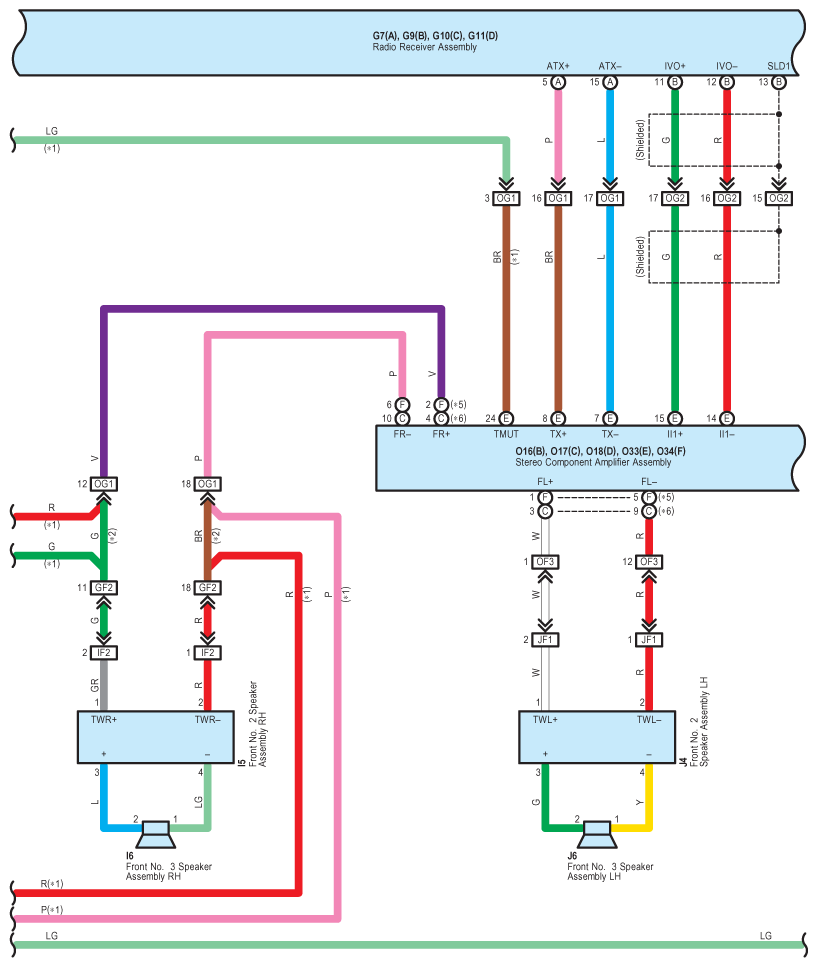

Fig 7: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (7 Of 10)
G08942871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

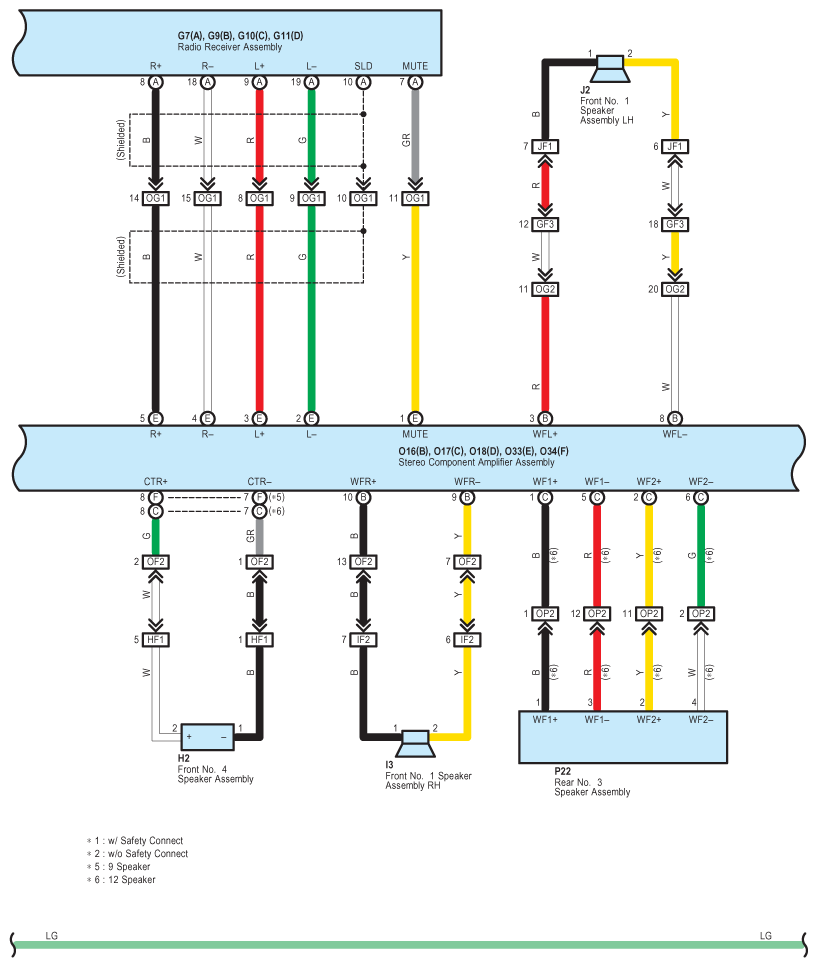

Fig 8: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (8 Of 10)
G08942872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

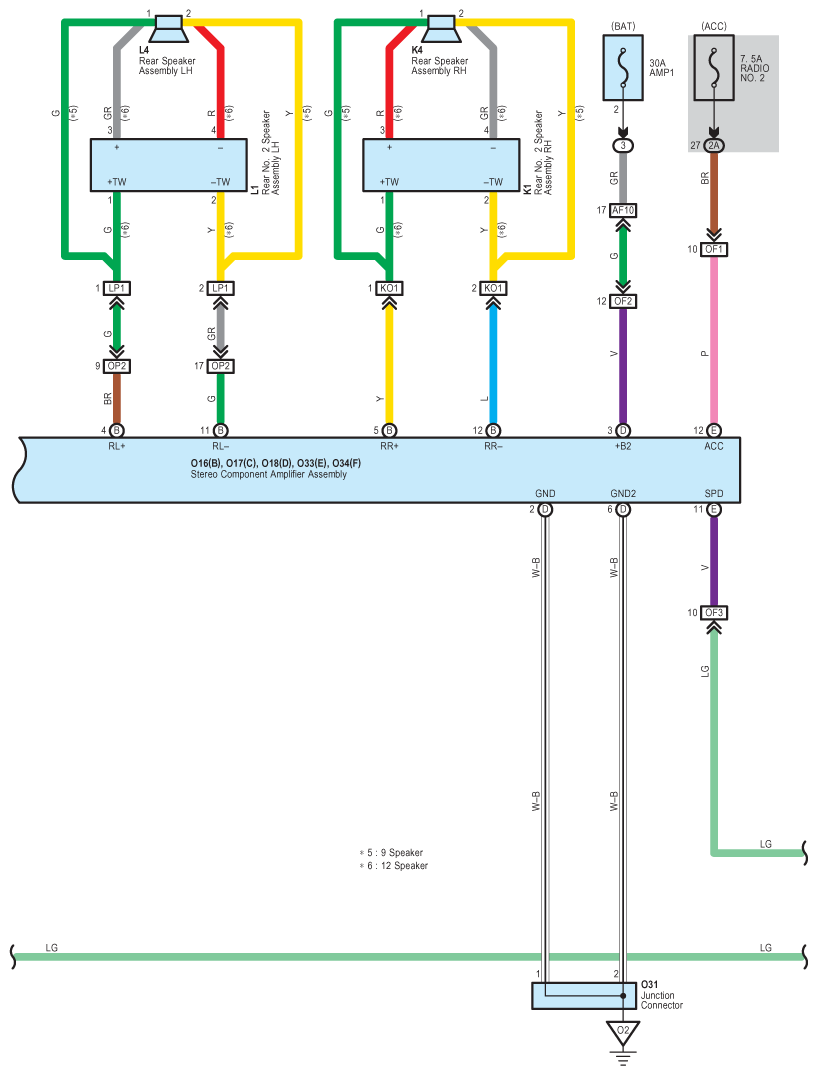

Fig 9: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (9 Of 10)
G08942873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

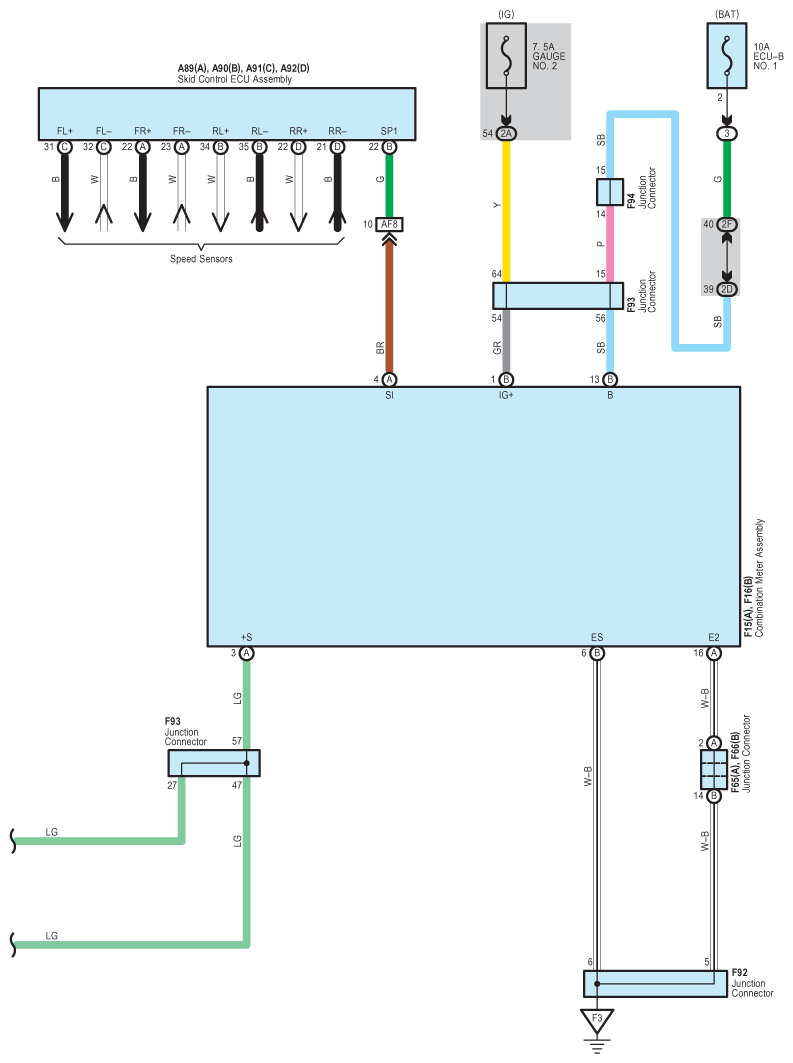

Fig 10: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (10 Of 10)
G08942874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
