4WD Control Ecu: Components: Illustration

Fig 1: Identifying 4WD Control ECU Replacement Components (1 Of 2)
GTY271981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

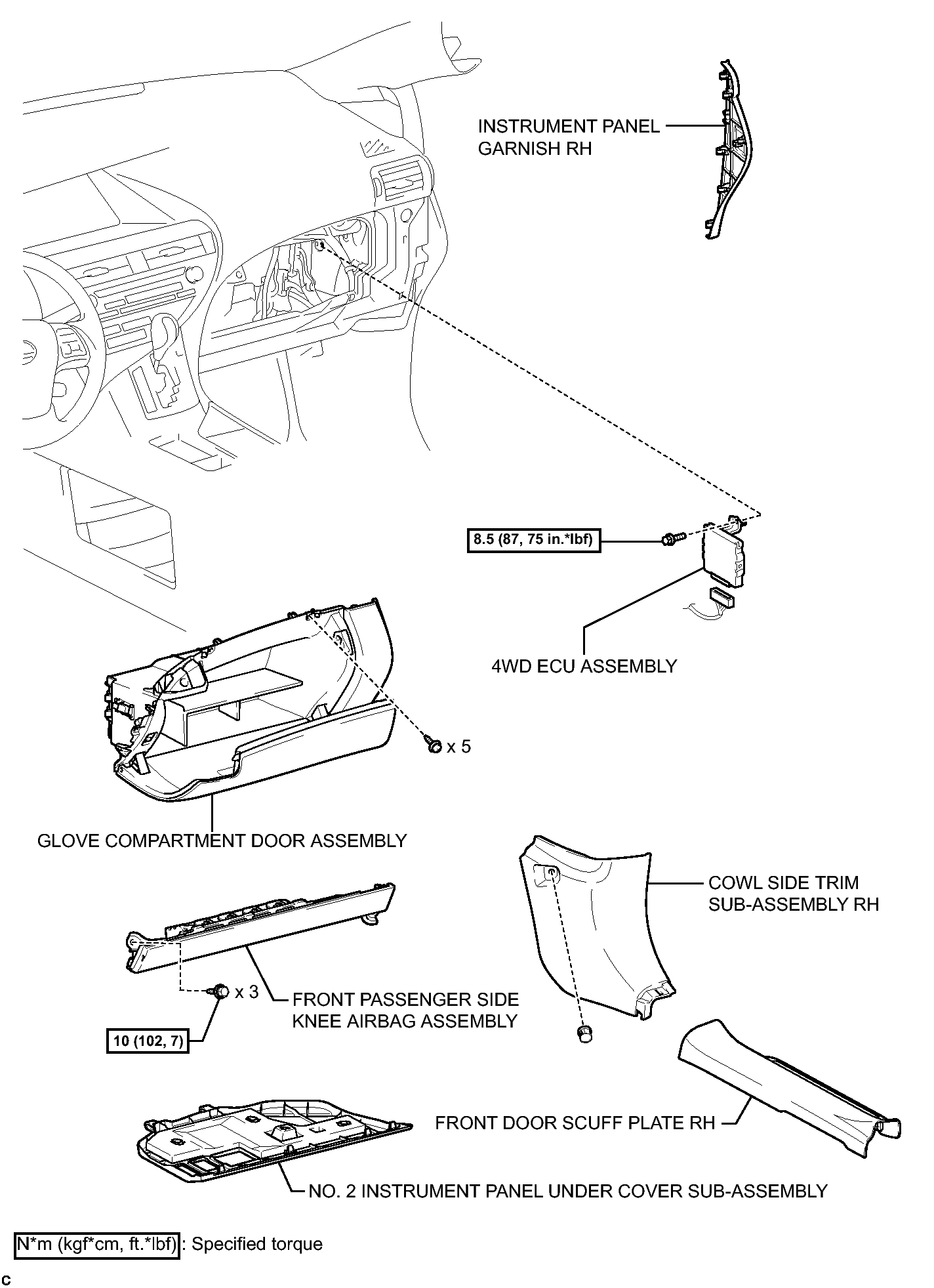

Fig 1: Identifying 4WD Control ECU Replacement Components With Torque Specifications (2 Of 2)
GTY282960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
