Fuel Tank: Components: Illustration

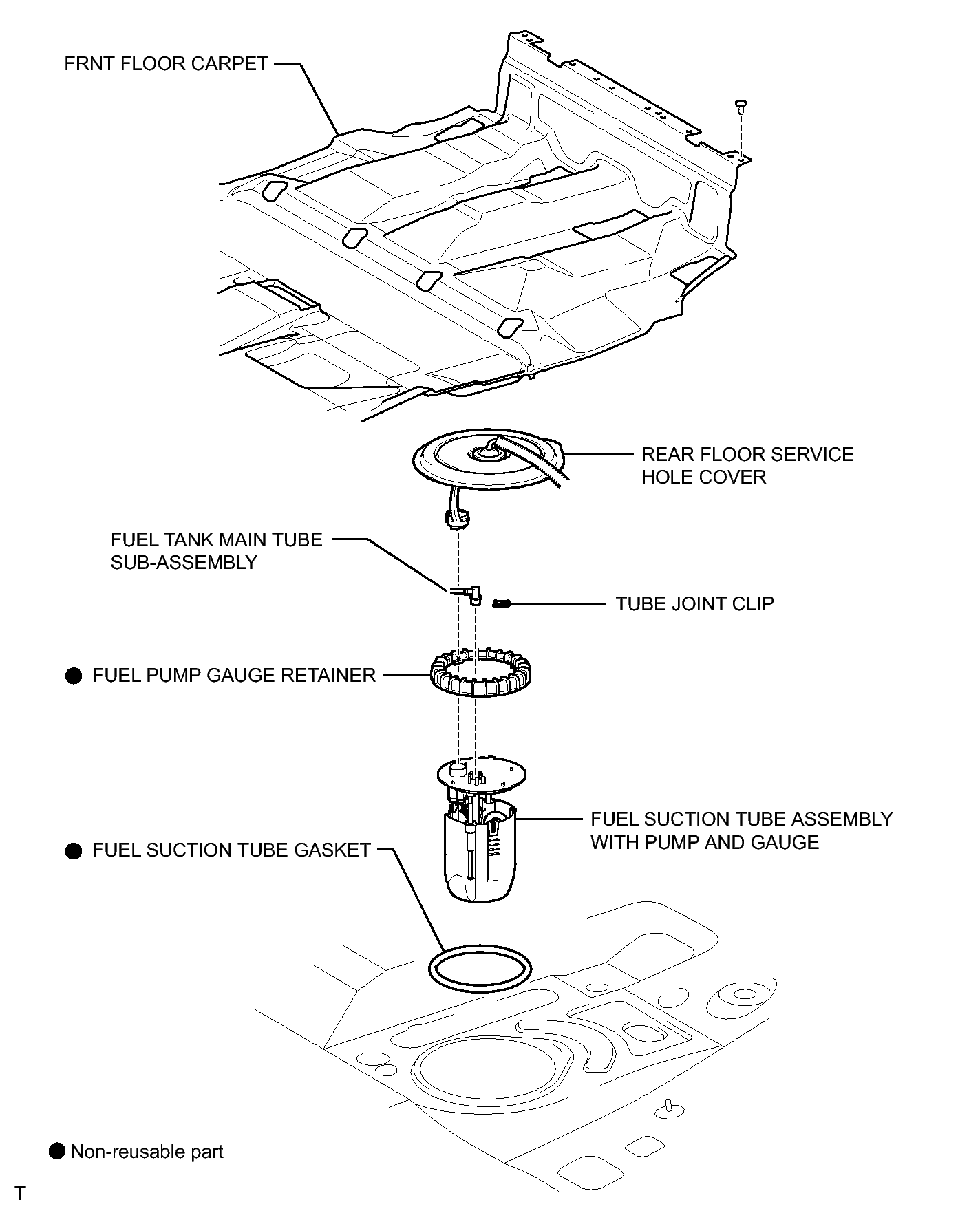

Fig 1: Identifying Fuel Tank Replacement Components (1 of 5)
GTY275127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

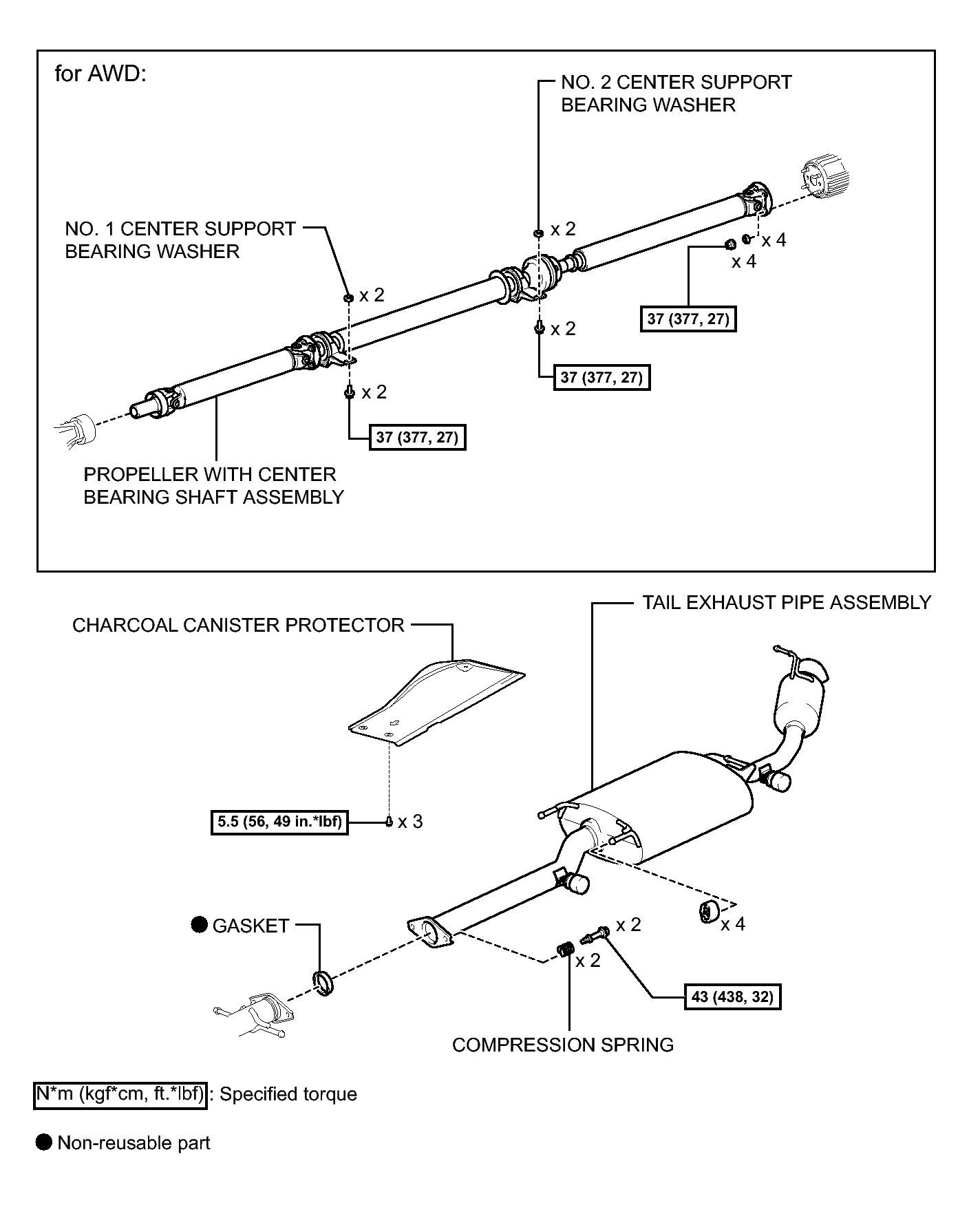

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 of 5)
GTY254562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

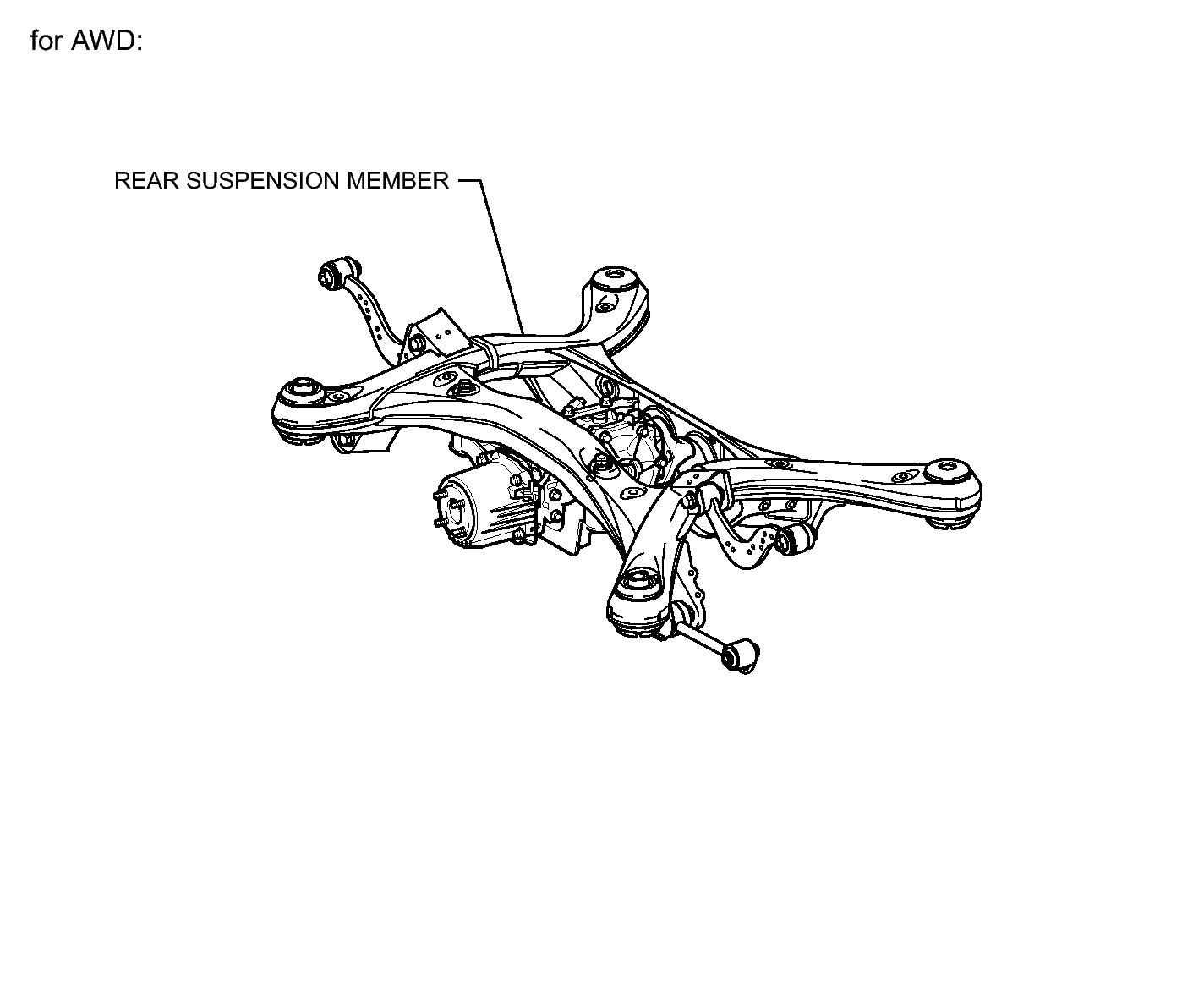

Fig 1: Identifying Fuel Tank Replacement Components (3 of 5)
GTY282959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

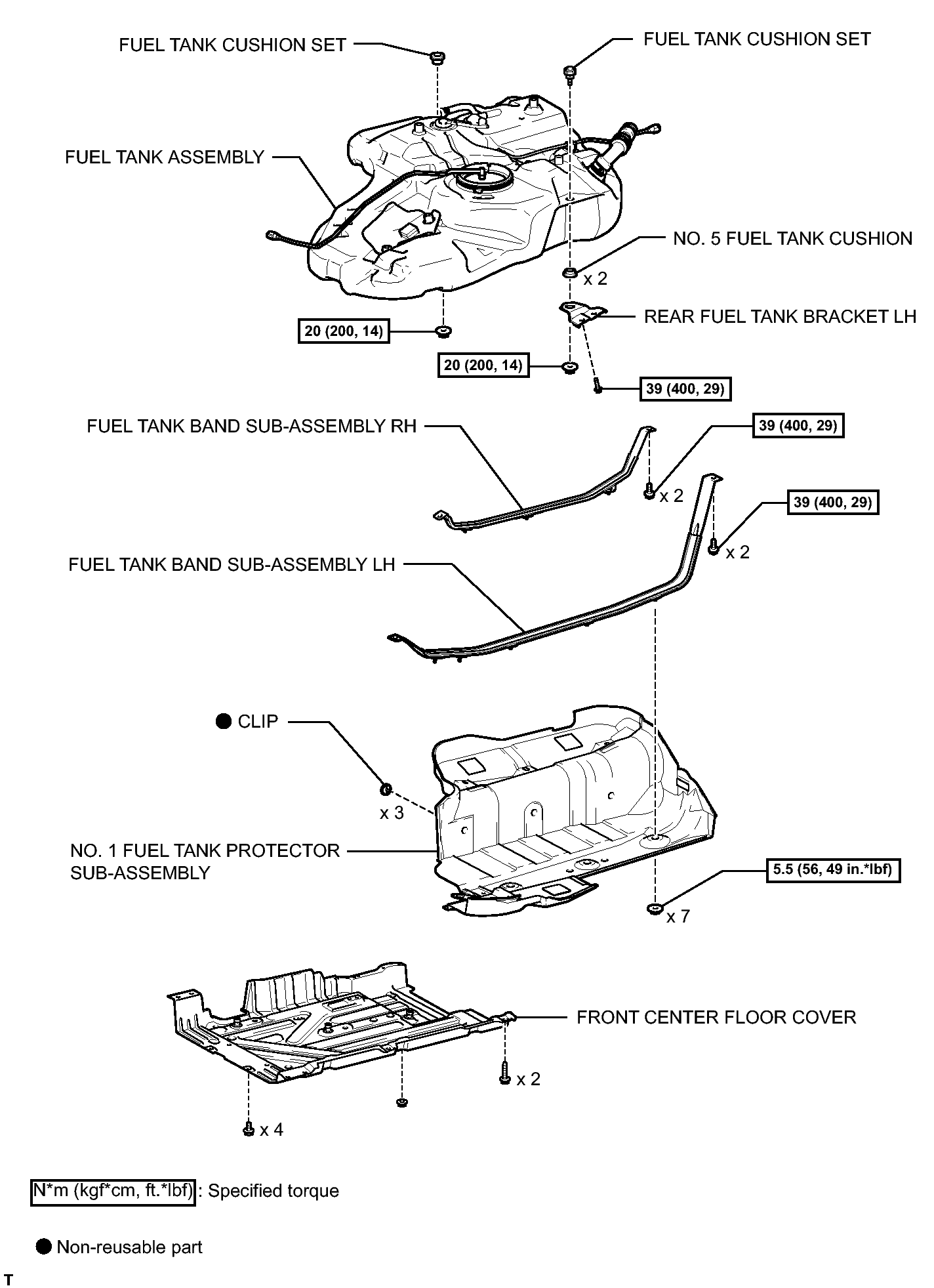

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (4 of 5)
GTY280129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

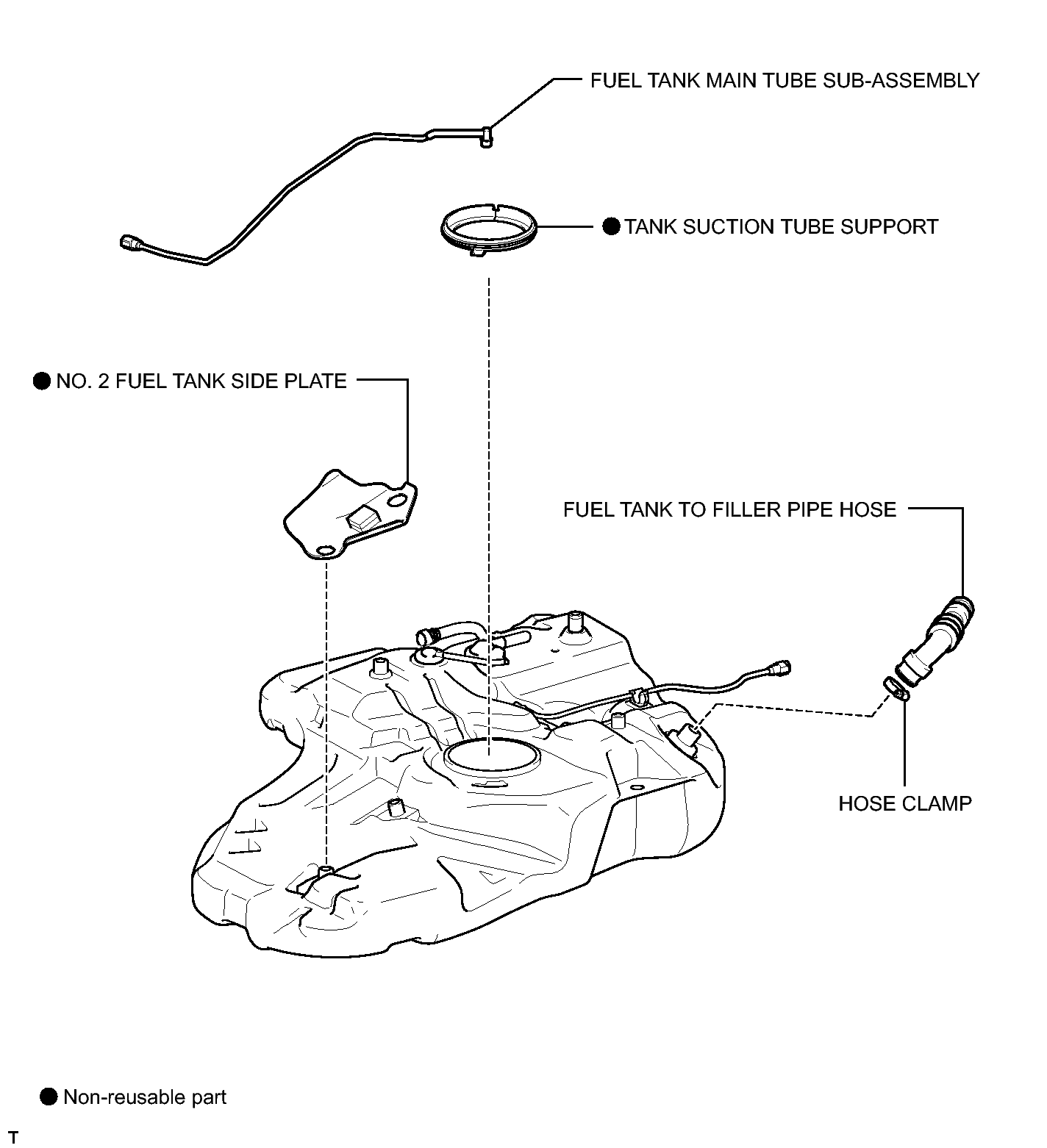

Fig 1: Identifying Fuel Tank Replacement Components (5 of 5)
GTY282354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
