Fuel Pressure Regulator: Components: Illustration

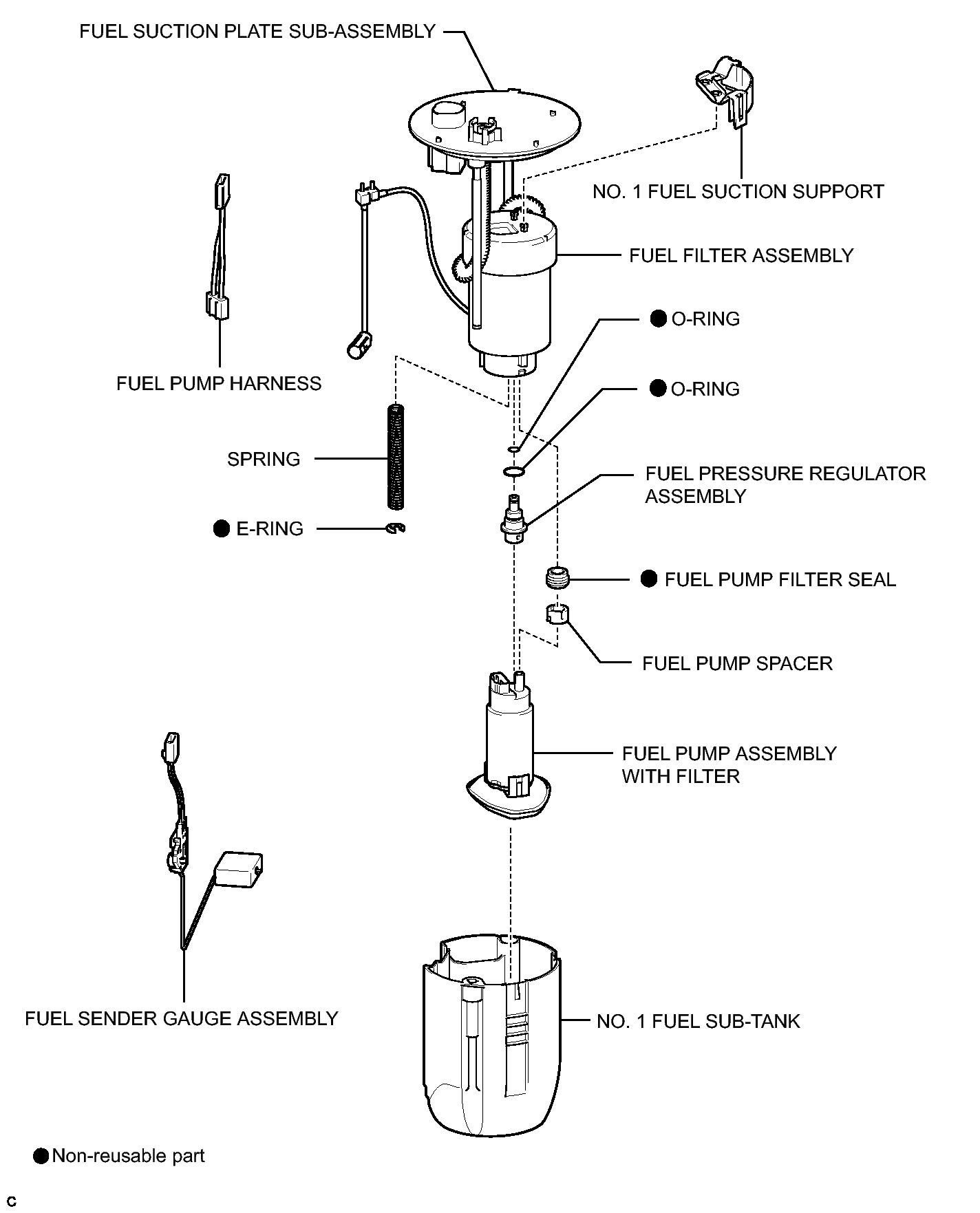

Fig 1: Identifying Fuel Pressure Regulator Replacement Components

GTY259459

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
