Combination Meter: Components: Illustration

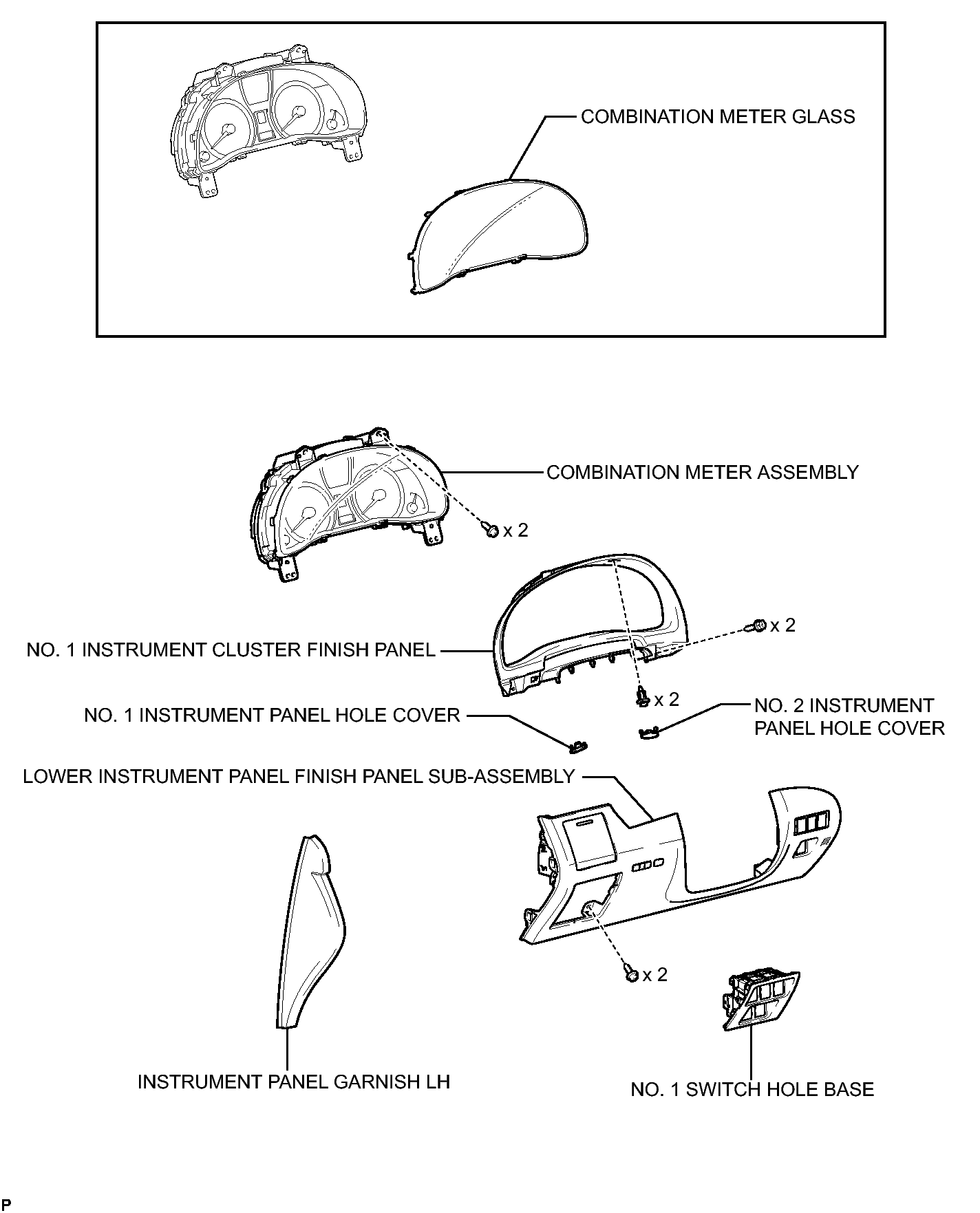

Fig 1: Identifying Combination Meter Replacement Components

GTY282660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
