Seat Heater: Notes

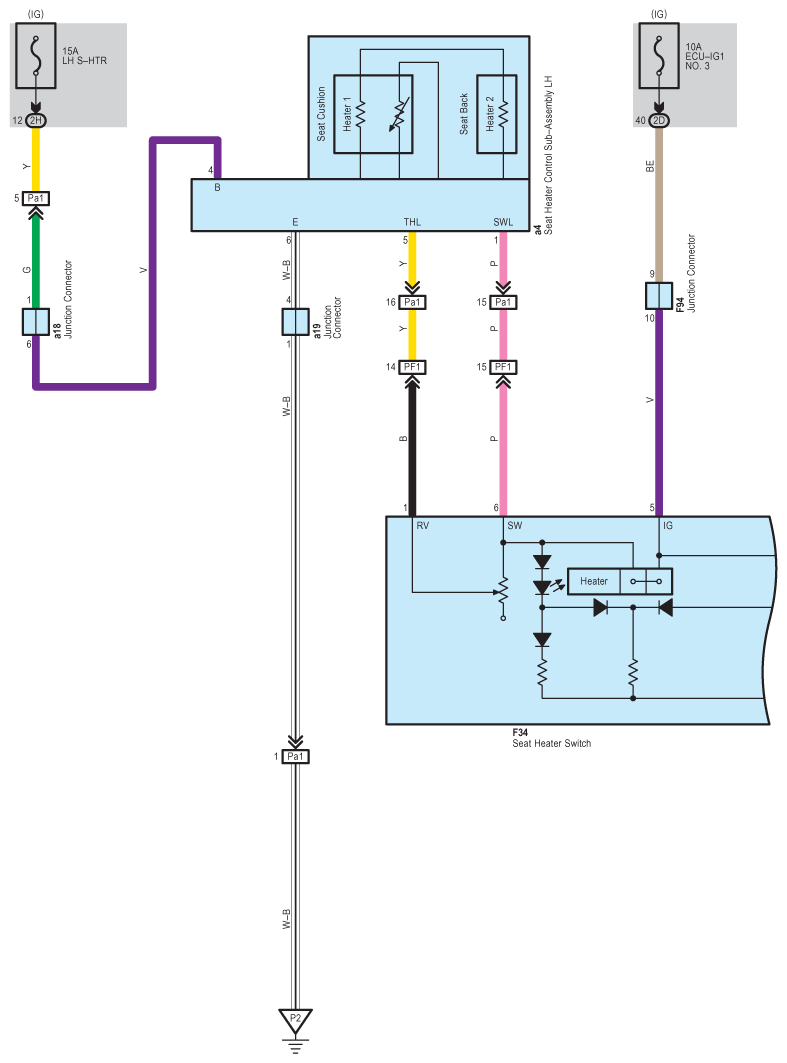

Fig 1: Seat Heater - Wiring Diagram (1 Of 3)
G08938402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

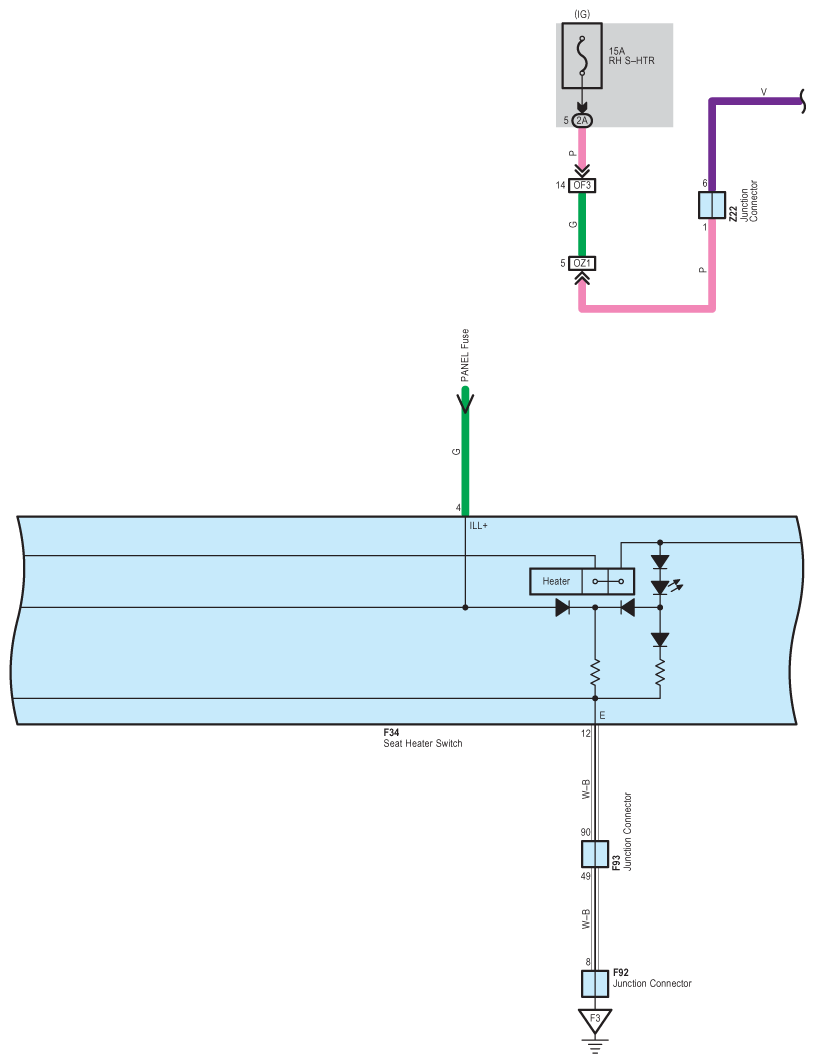

Fig 2: Seat Heater - Wiring Diagram (2 Of 3)
G08938403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

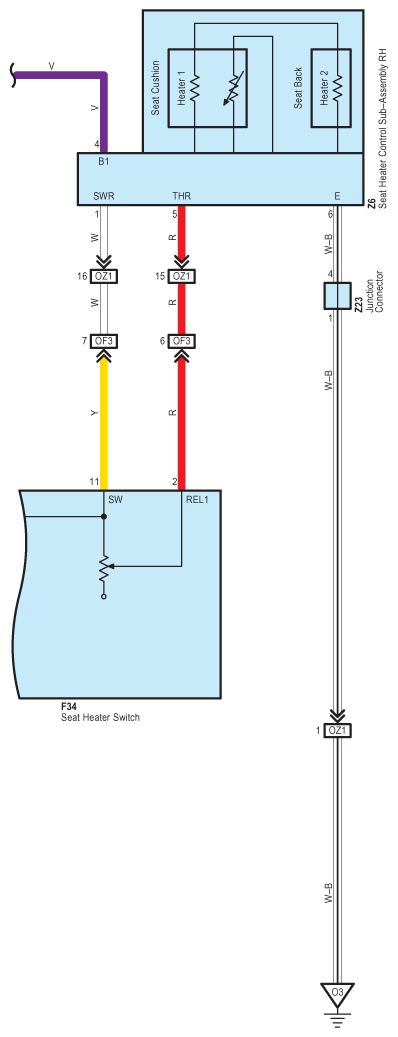

Fig 3: Seat Heater - Wiring Diagram (3 Of 3)
G08938404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
