Suspension Control Ecu: Components: Illustration

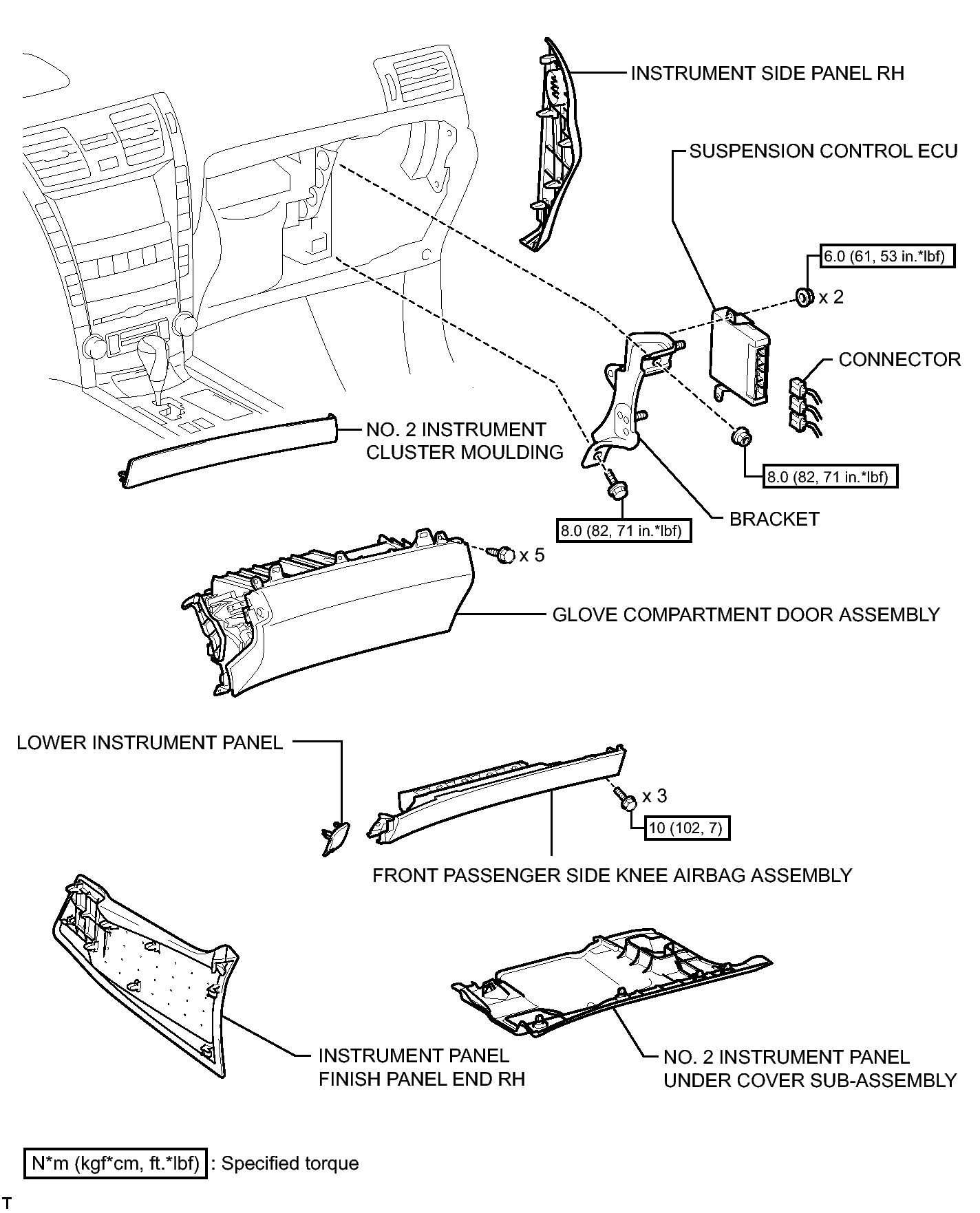

Fig 1: Identifying Suspension Control ECU Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Suspension Control ECU Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

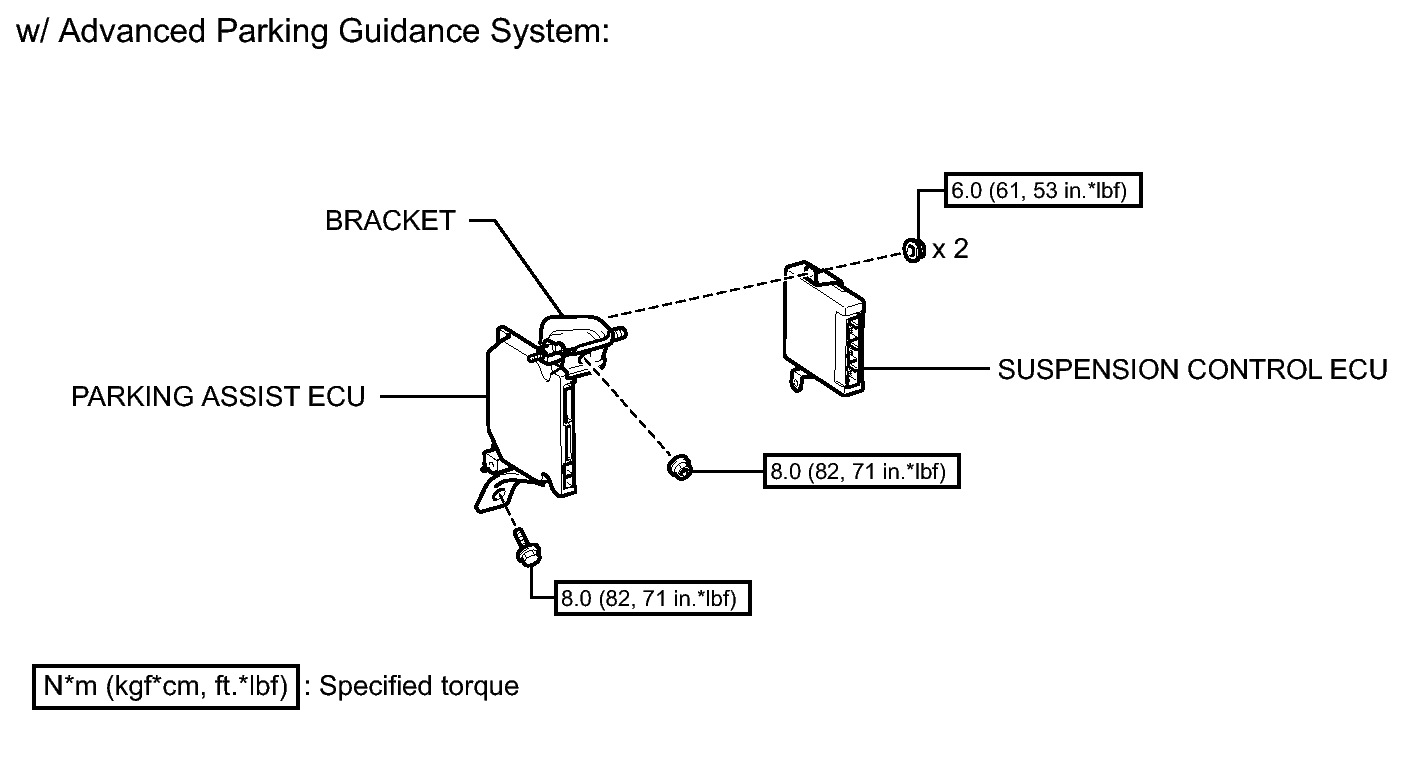

Fig 1: Identifying Suspension Control ECU Replacement Components With Torque Specifications (W/ Advanced Parking Guidance System) (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

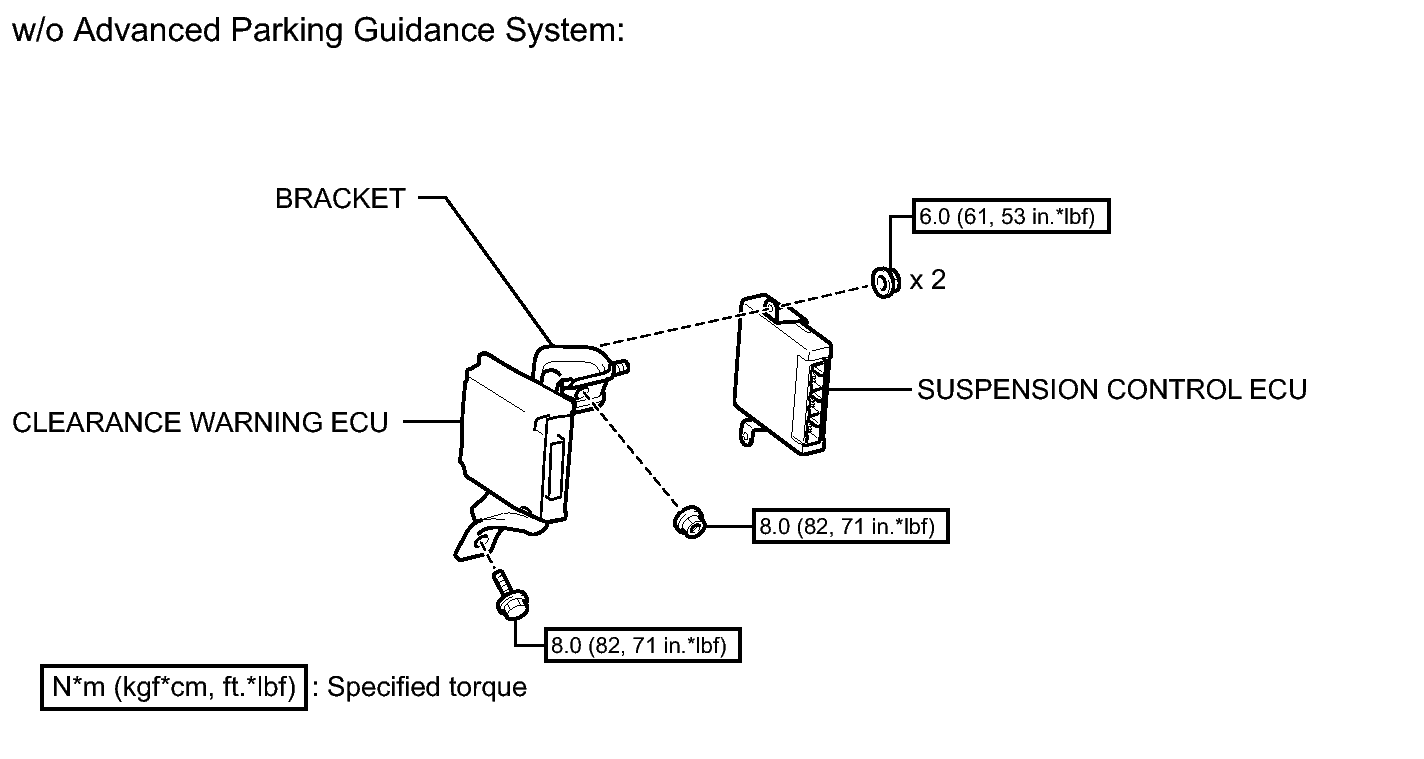

Fig 1: Identifying Suspension Control ECU Replacement Components With Torque Specifications (W/O Advanced Parking Guidance System) (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
