Shoulder Belt Anchorage Switch: Components: Illustration

Fig 1: Identifying Shoulder Belt Anchorage Switch Replacement Components (1 Of 2)
GTY141590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

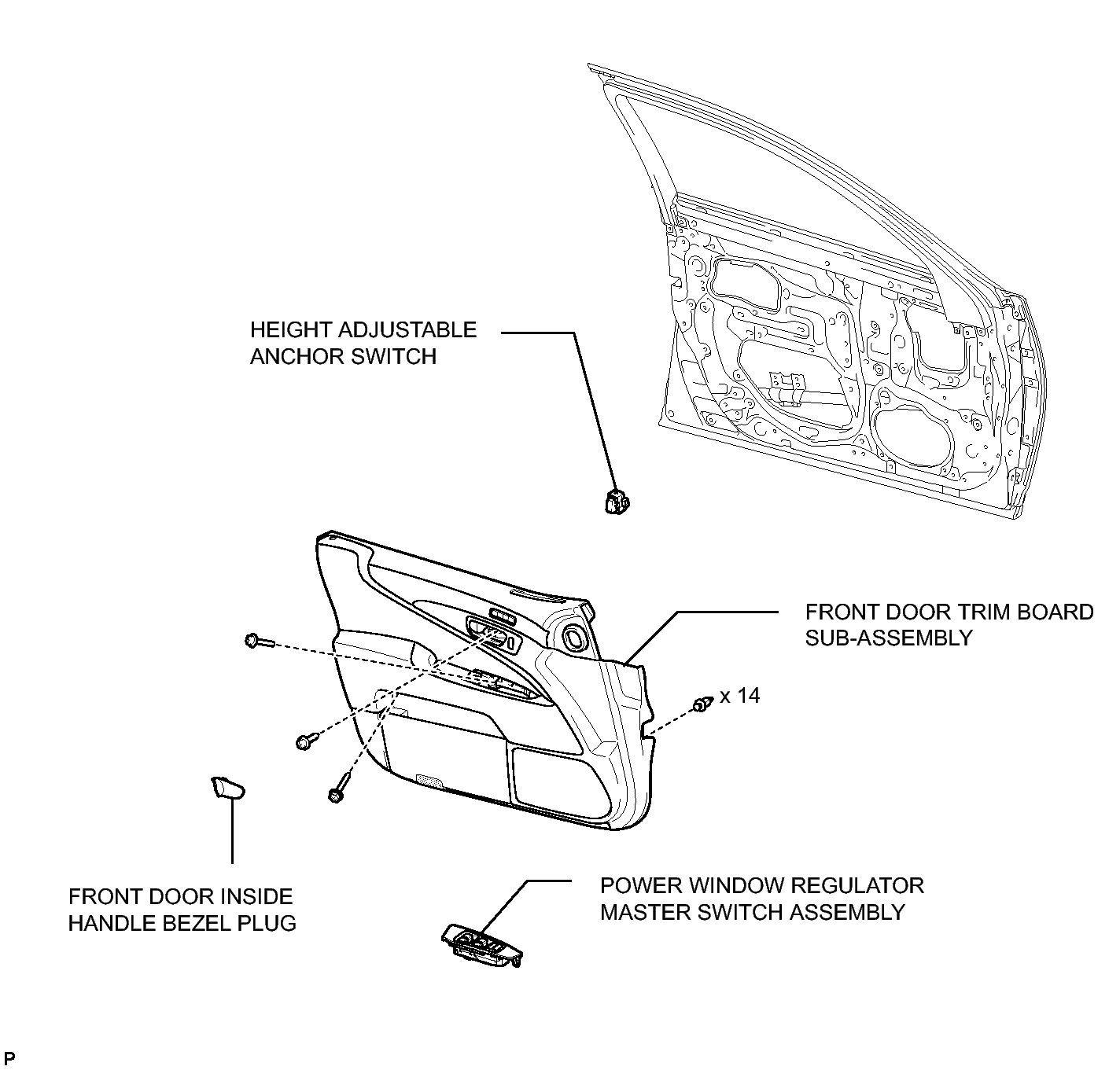

Fig 1: Identifying Shoulder Belt Anchorage Switch Replacement Components (2 Of 2)
GTY134166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
