Service Plug Grip: Components: Illustration

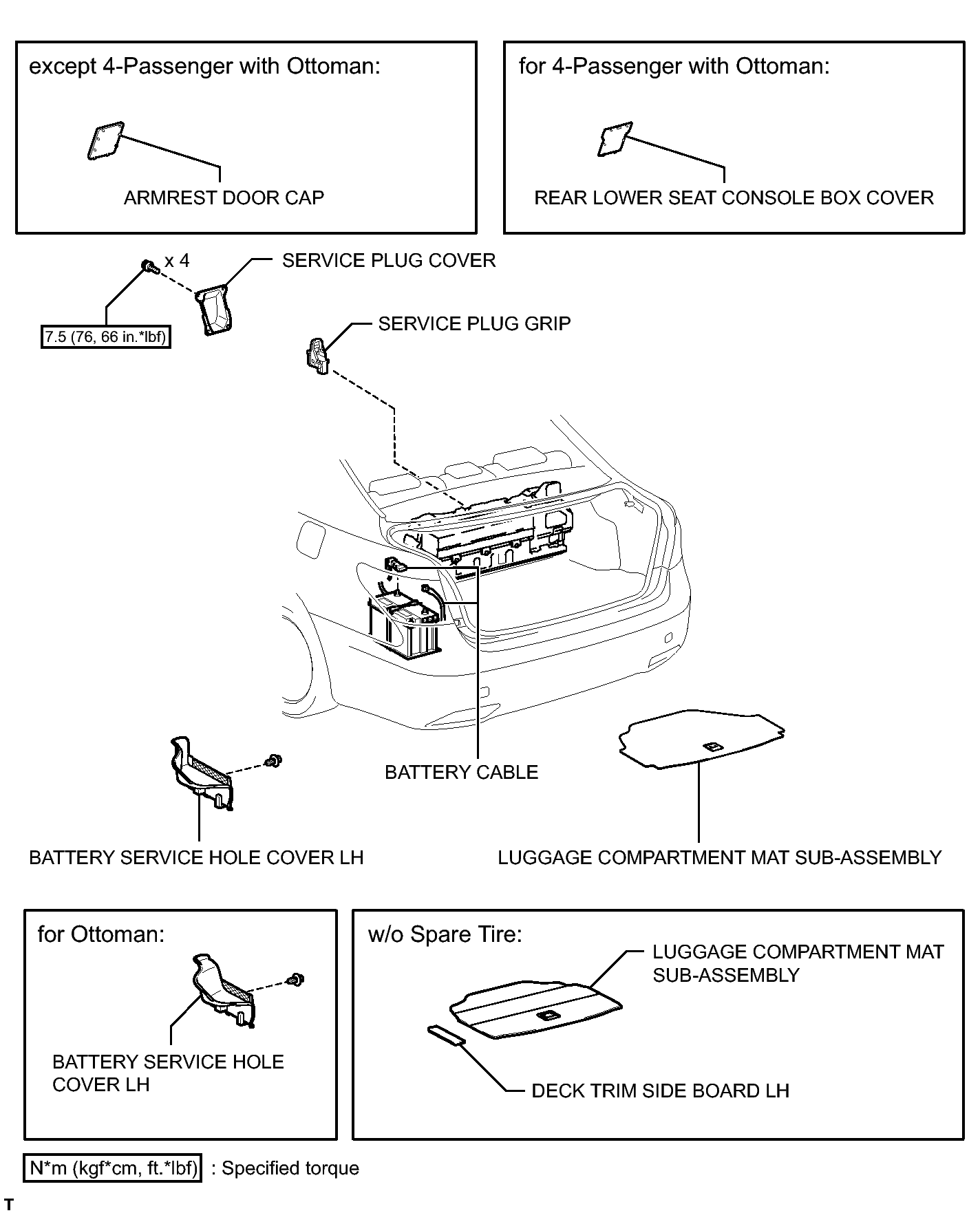

Fig 1: Identifying Service Plug Grip Replacement Components With Torque Specifications

GTY278954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
