Battery Smart Unit: Components: Illustration

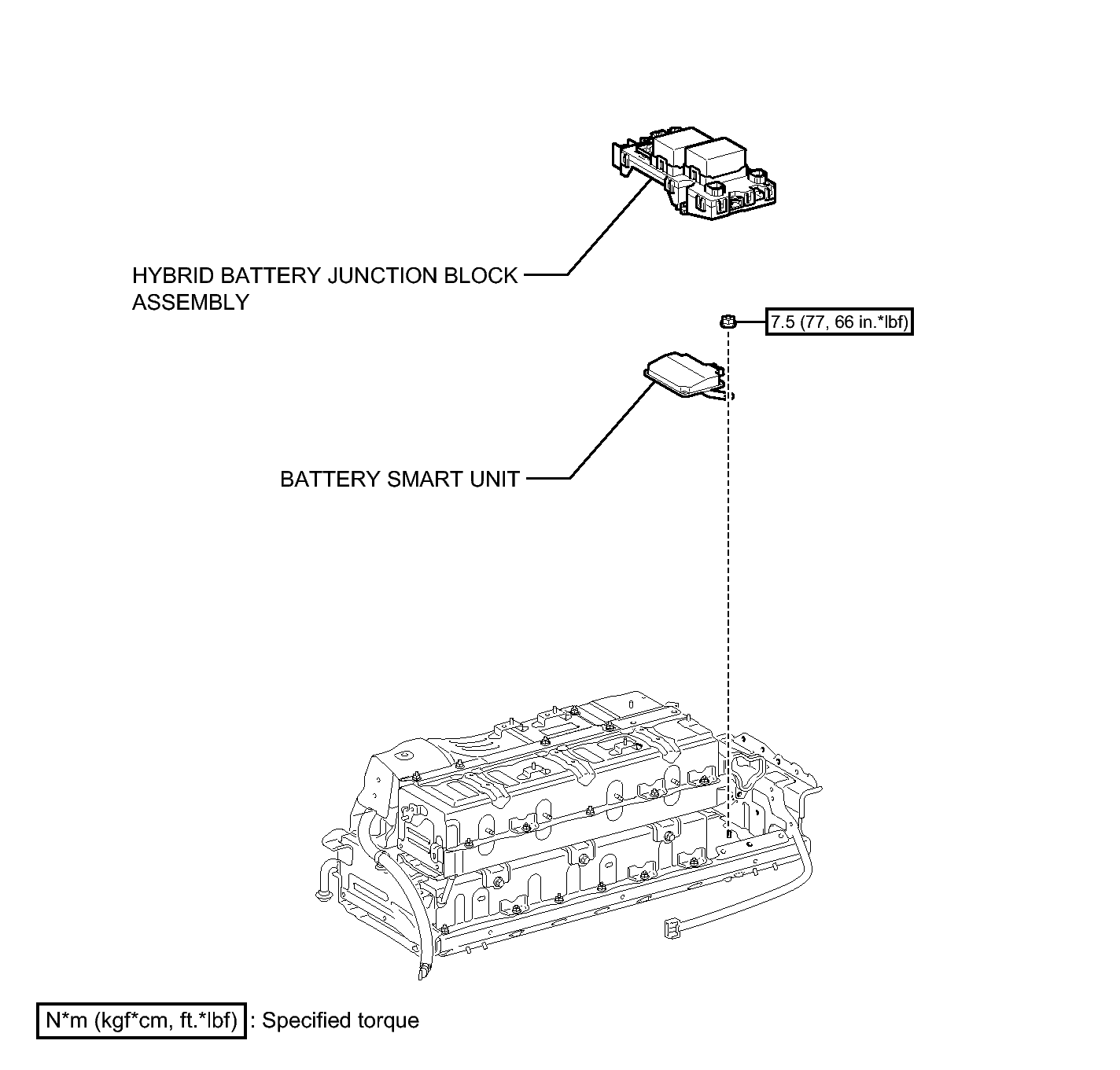

Fig 1: Identifying Battery Smart Unit Replacement Components With Torque Specifications

GTY275091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
