DVD Player: Components: Illustration

WARNING: This page is about a different car, the 2012 Lexus CT 200h. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying DVD Player Replacement Components (1 Of 2)
GTY352218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

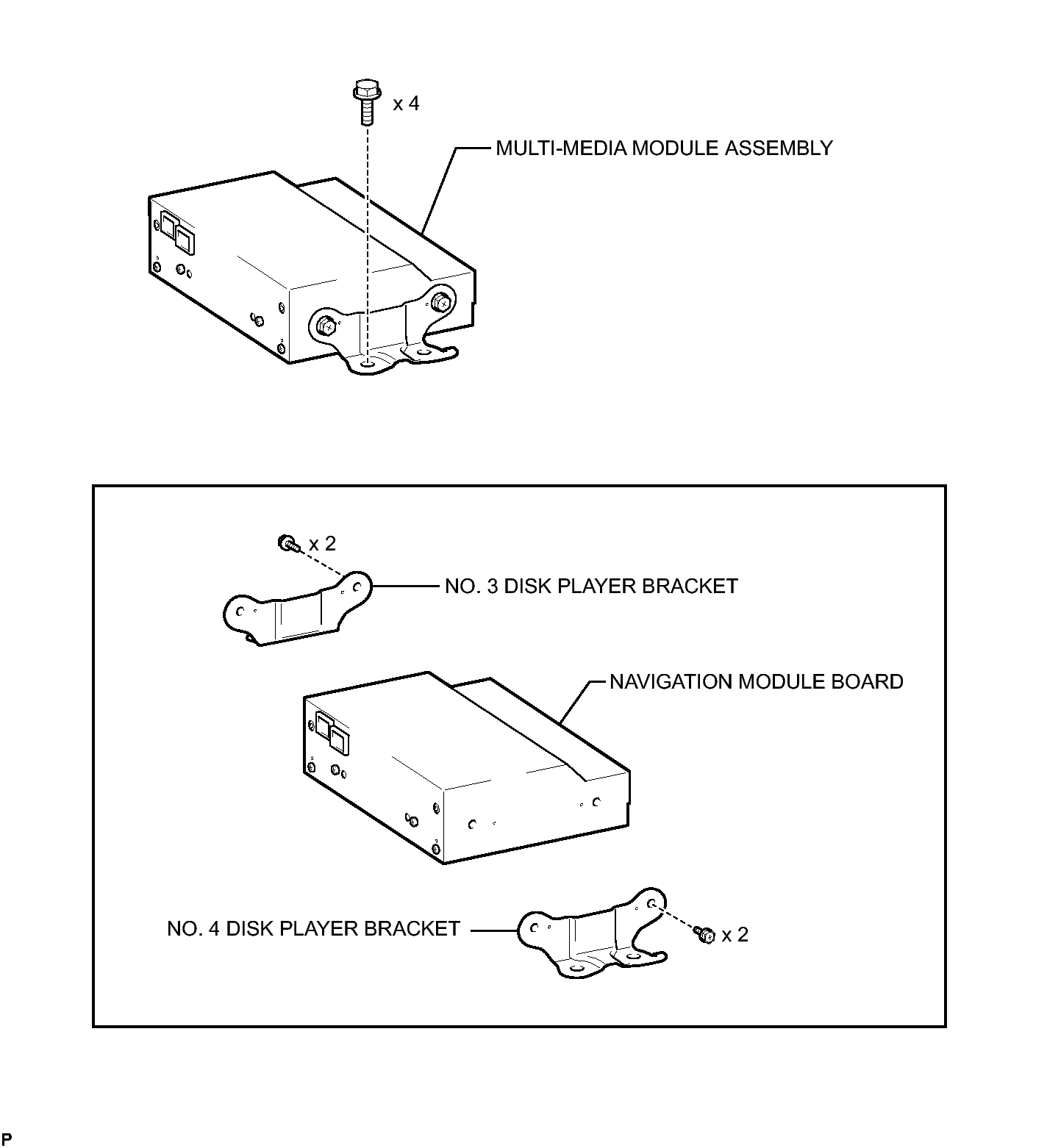

Fig 1: Identifying DVD Player Replacement Components (2 Of 2)
GTY353579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
