Millimeter Wave Radar Sensor: Components: Illustration

WARNING: This page is about a different car, the 2012 Lexus CT 200h. However, it is still accessible from the selected car via links, so may be relevant.

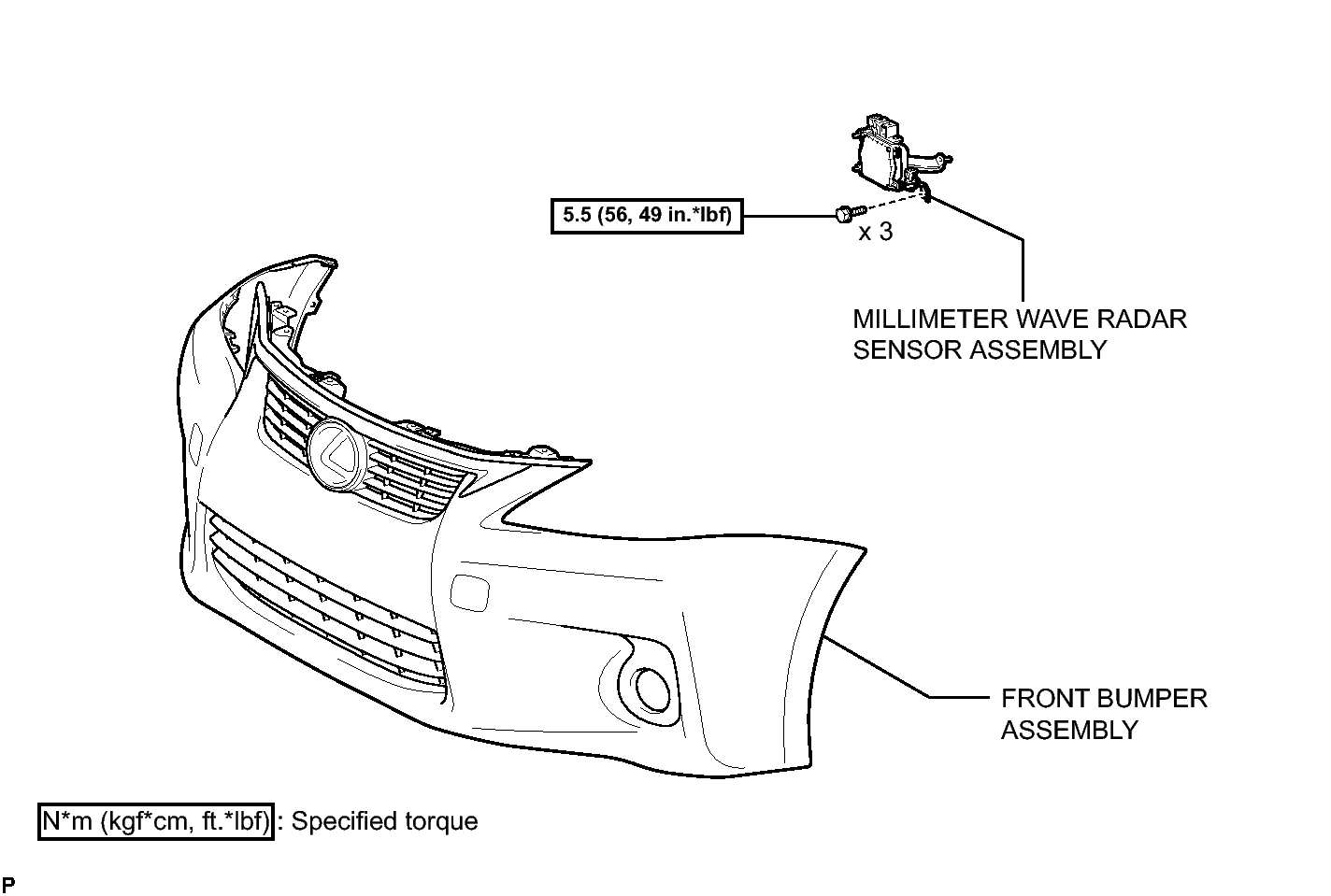

Fig 1: Identifying Millimeter Wave Radar Sensor Replacement Components With Torque Specifications
GTY356730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
