Lexus
>>
2012
>>
LS 600hL
>>
Repair and Diagnosis (Single Page)
>>
Hybrid/Electric Powertrain
>>
Testing and Diagnosis
>>
Hybrid Vehicle Control System (Diagnostic Codes (P0A1A-200 - P0A7A-325))
>>
Hybrid Control System
>>
DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module
>>
Wiring Diagram
DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module: Wiring Diagram

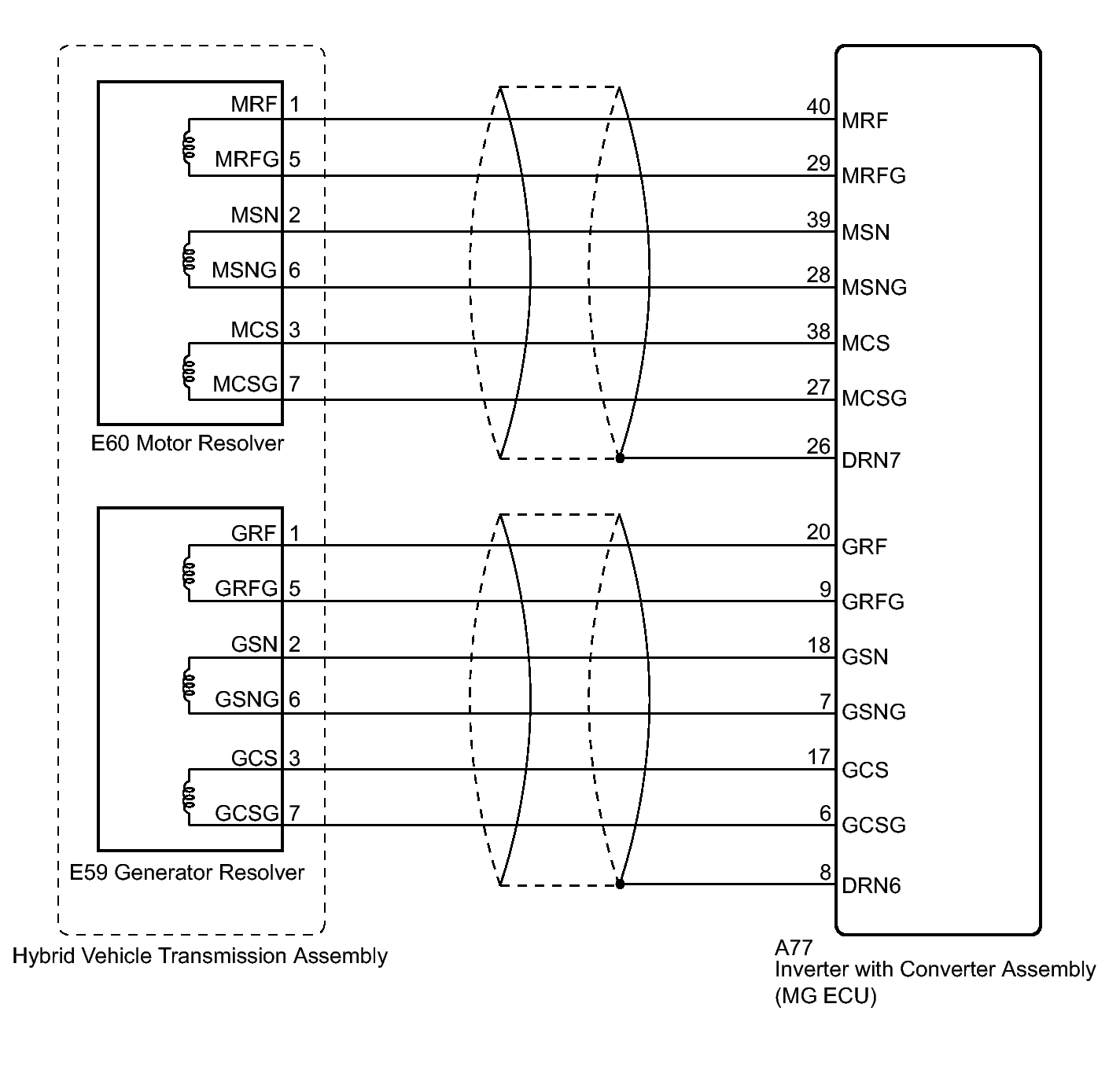

Fig 1: Inverter With Converter Assembly (MG ECU) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
