DTC U0327: Software Incompatibility with Vehicle Security Control Module: Wiring Diagram

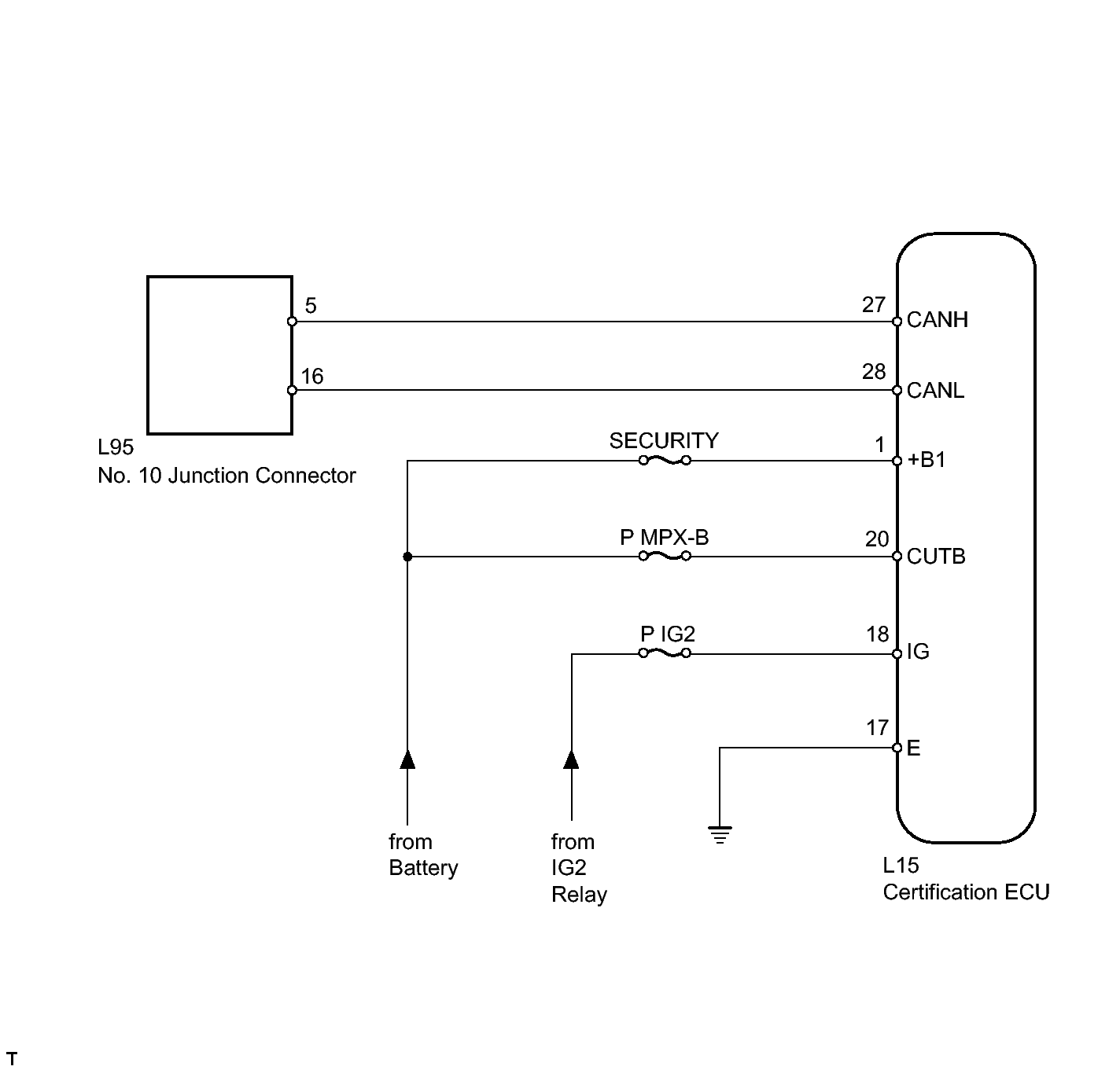

Fig 1: CAN Communication With Certification ECU - Wiring Diagram
GTY266704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
