DTC U0122: Lost Communication with Vehicle Dynamics Control Module; DTC U0129: Lost Communication with Brake System Control Module: Wiring Diagram

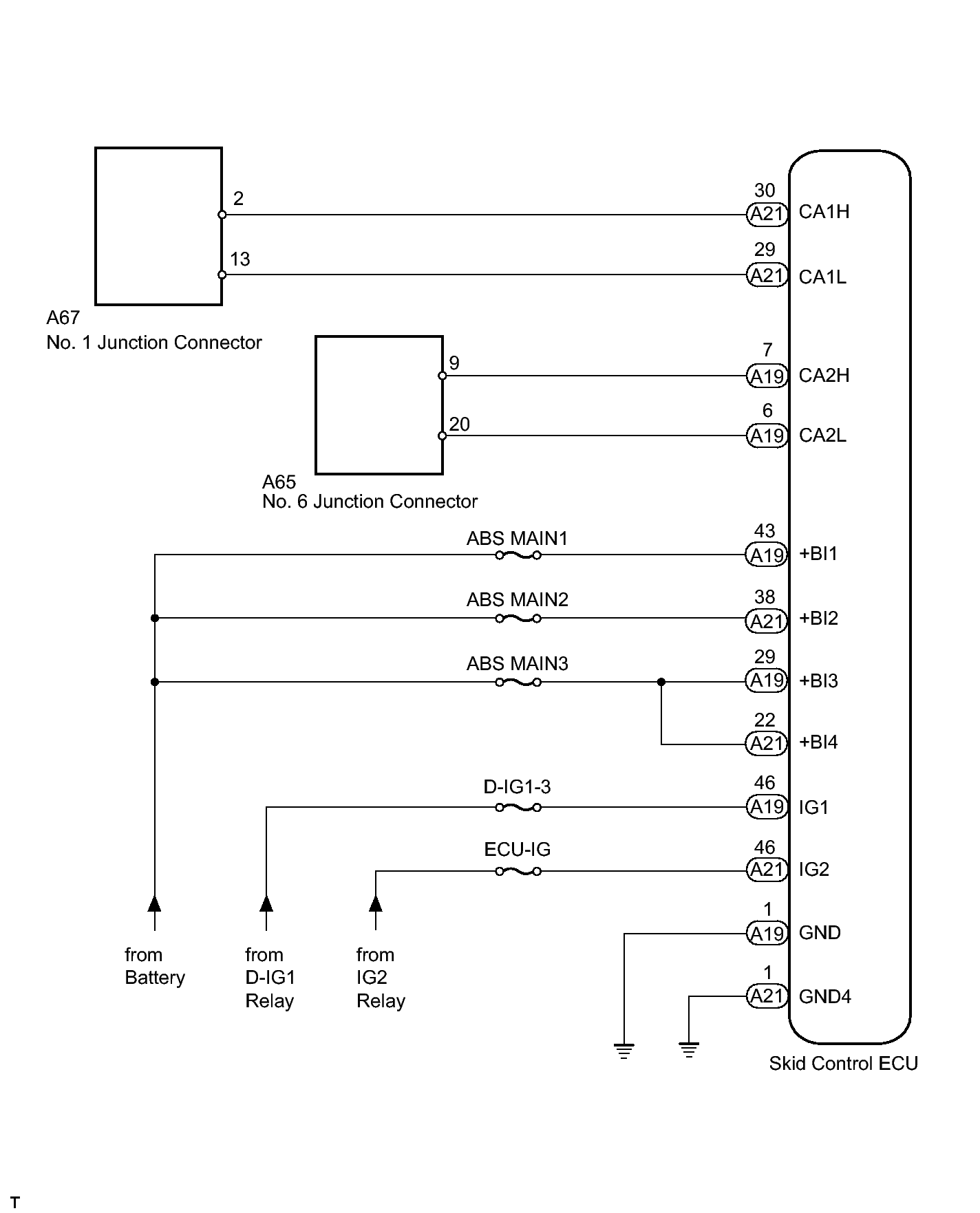

Fig 1: CAN Communication With Skid Control ECU - Wiring Diagram
GTY284712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
