FUEL INJECTOR (For Port Injection): Components: Illustration

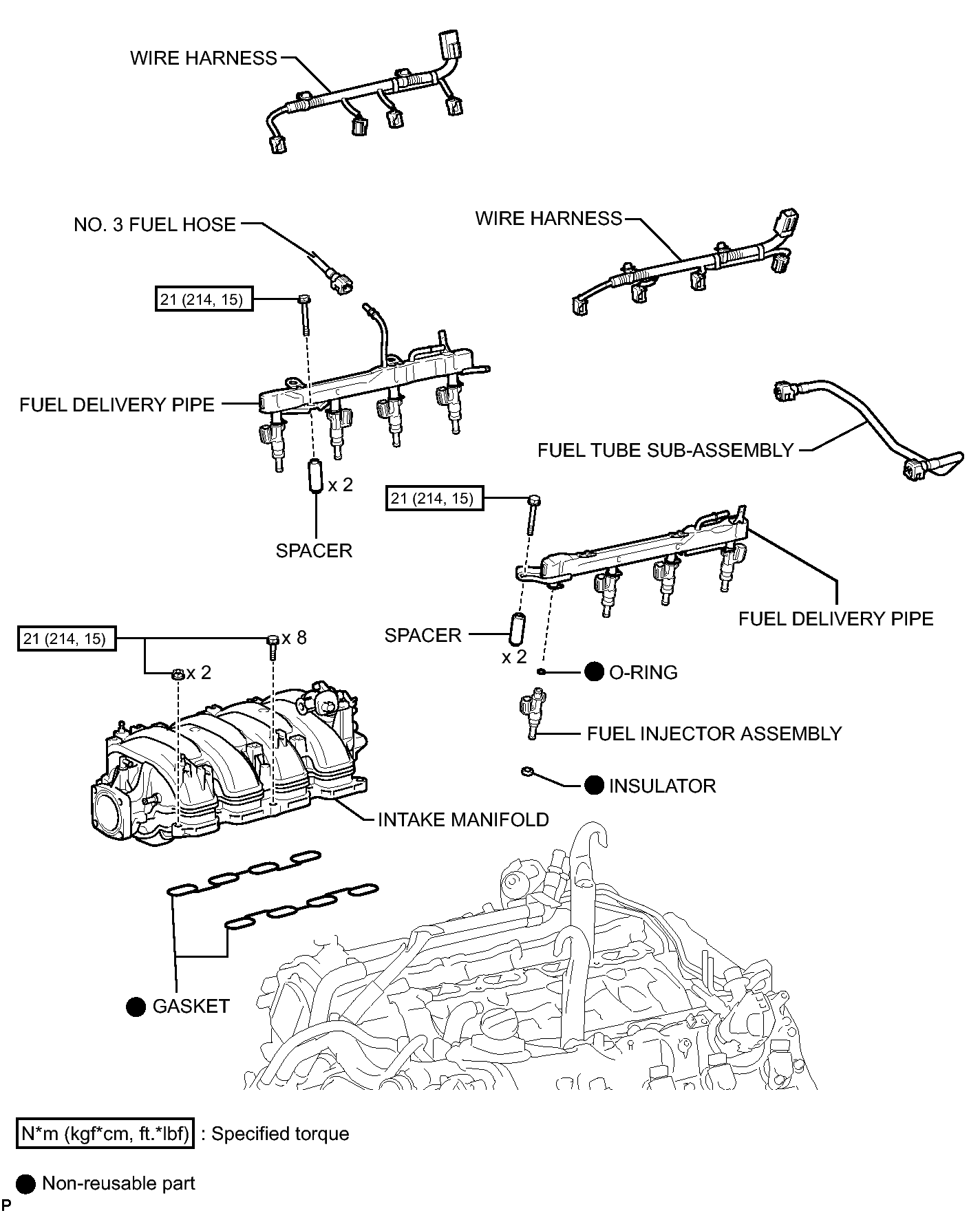

Fig 1: Identifying Fuel Injector (Port Injection) Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
