HEATED OXYGEN SENSOR (For 2WD): Components: Illustration

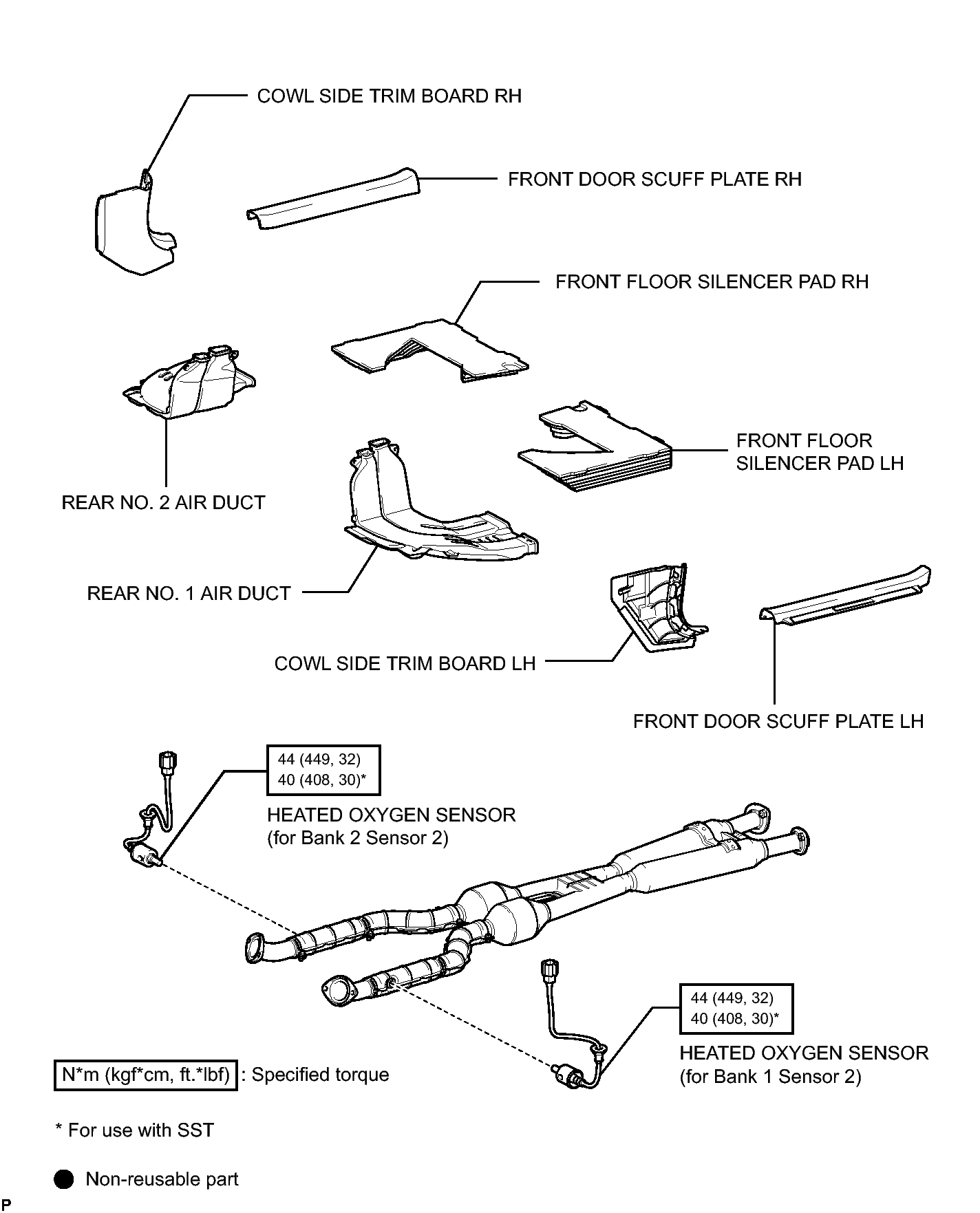

Fig 1: Identifying Heated Oxygen Sensor (2WD) Replacement Components With Torque Specifications

GTY288180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
