System Diagram

FUEL FLOW DIAGRAM

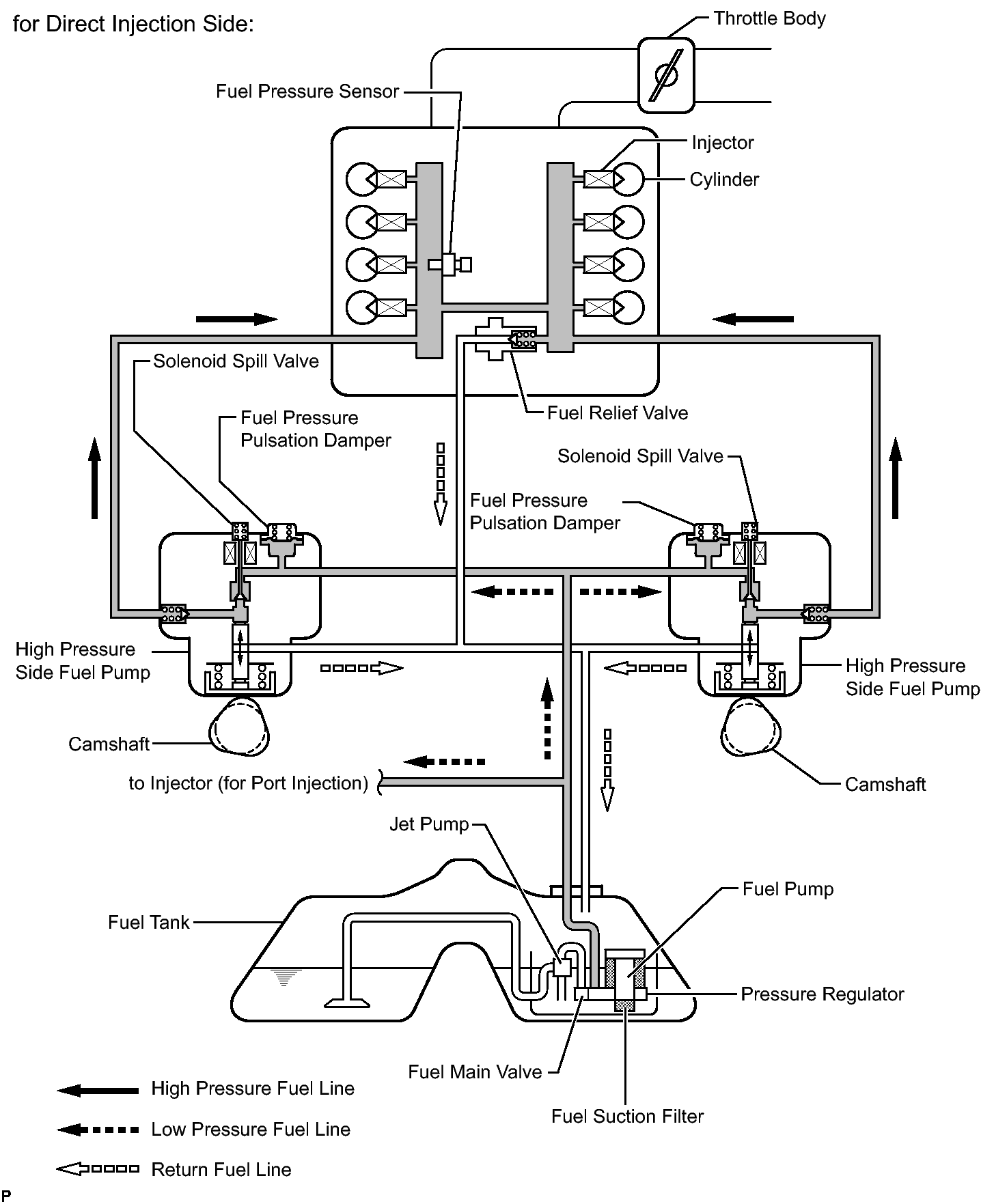

Fig 1: Fuel Flow Diagram - Direct Injection Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

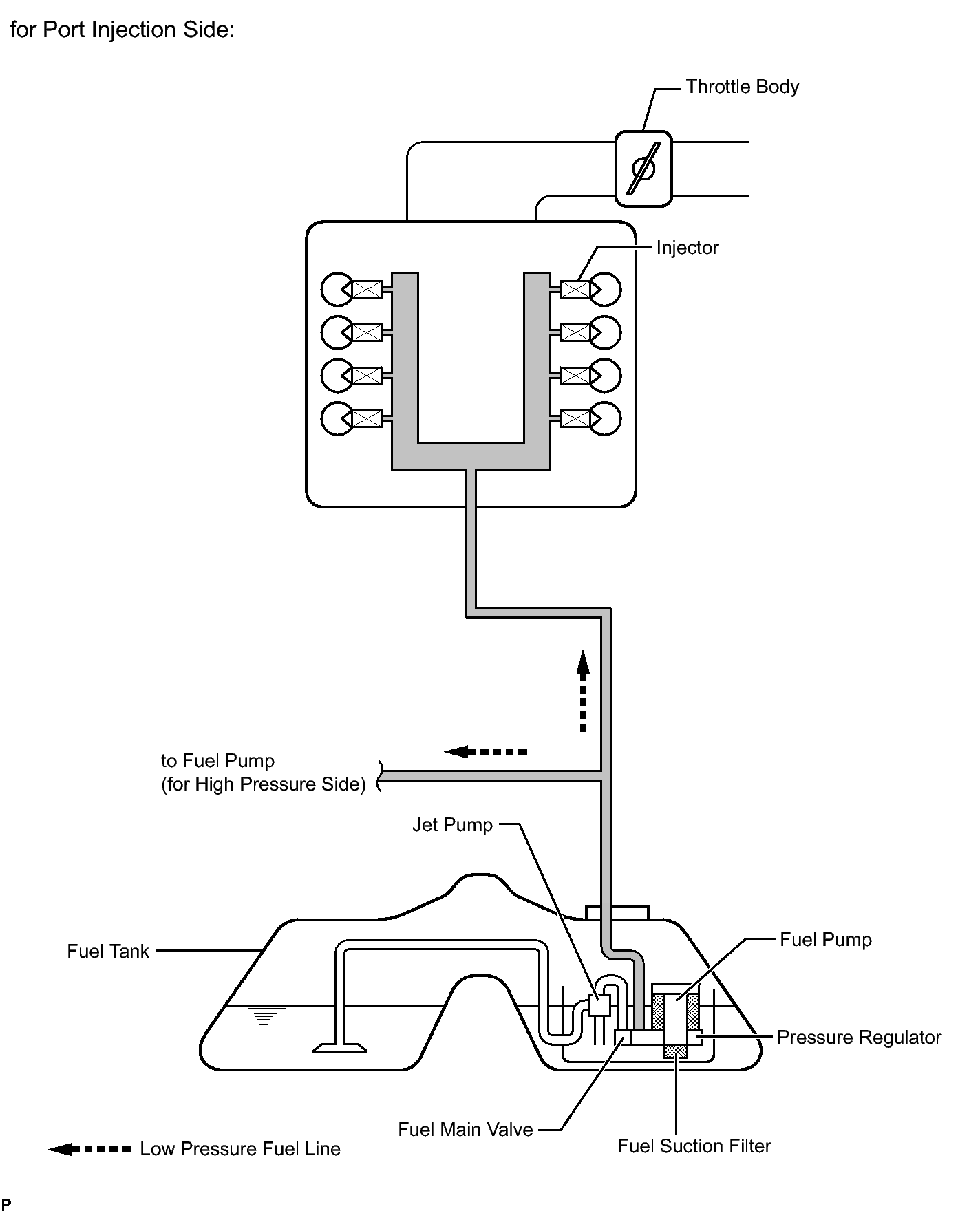

Fig 2: Fuel Flow Diagram - Port Injection Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ELECTRICAL CONTROL DIAGRAM

Fig 3: Identifying Electrical Control Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HIGH PRESSURE SIDE (DIRECT INJECTION SIDE) FUEL SYSTEM WIRING DIAGRAM

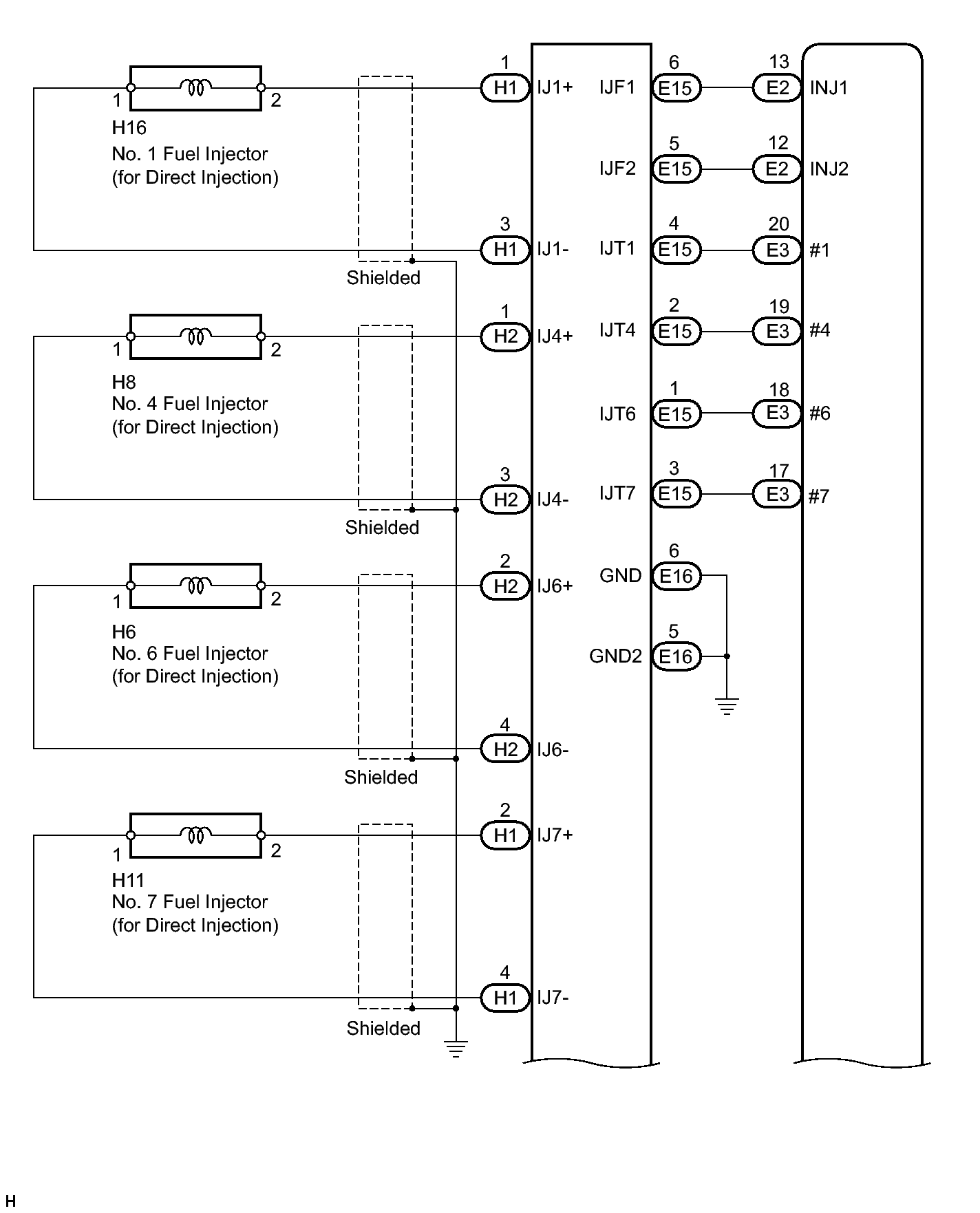

Fig 4: High Pressure Side (Direct Injection Side) Fuel System Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

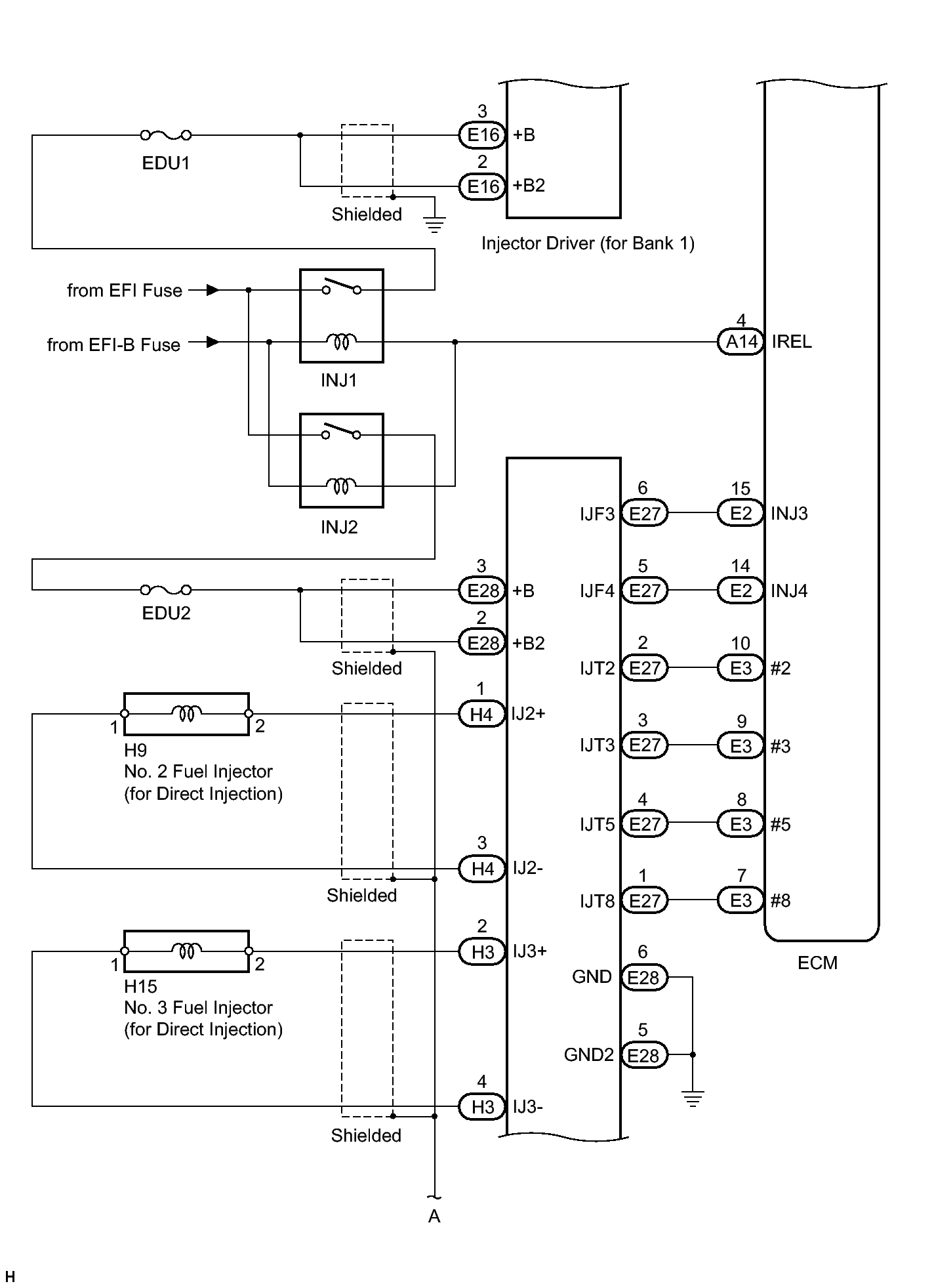

Fig 5: High Pressure Side (Direct Injection Side) Fuel System Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

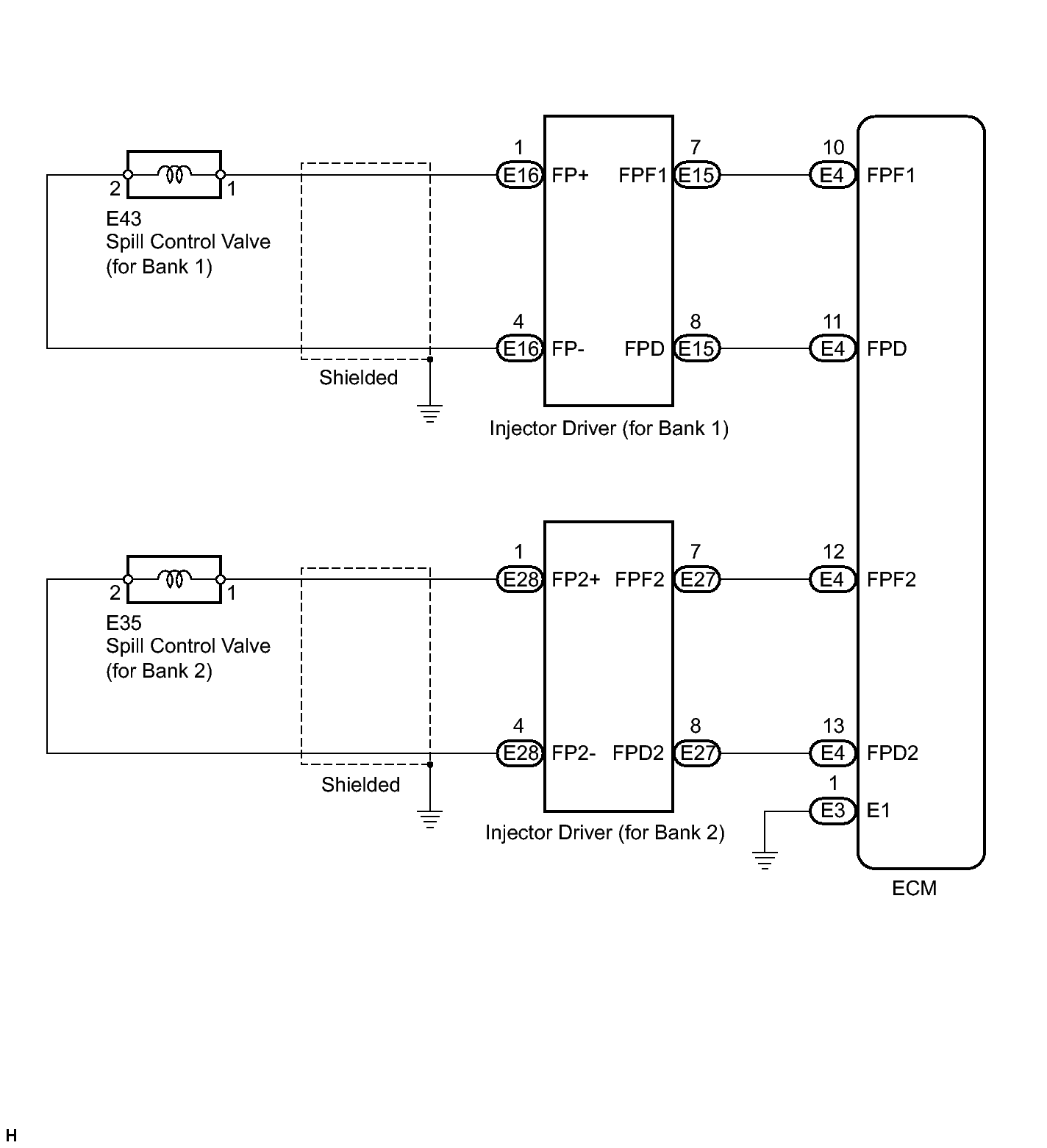

Fig 6: High Pressure Side (Direct Injection Side) Fuel System Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PORT INJECTION SIDE FUEL SYSTEM WIRING DIAGRAM

Fig 7: Port Injection Side Fuel System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

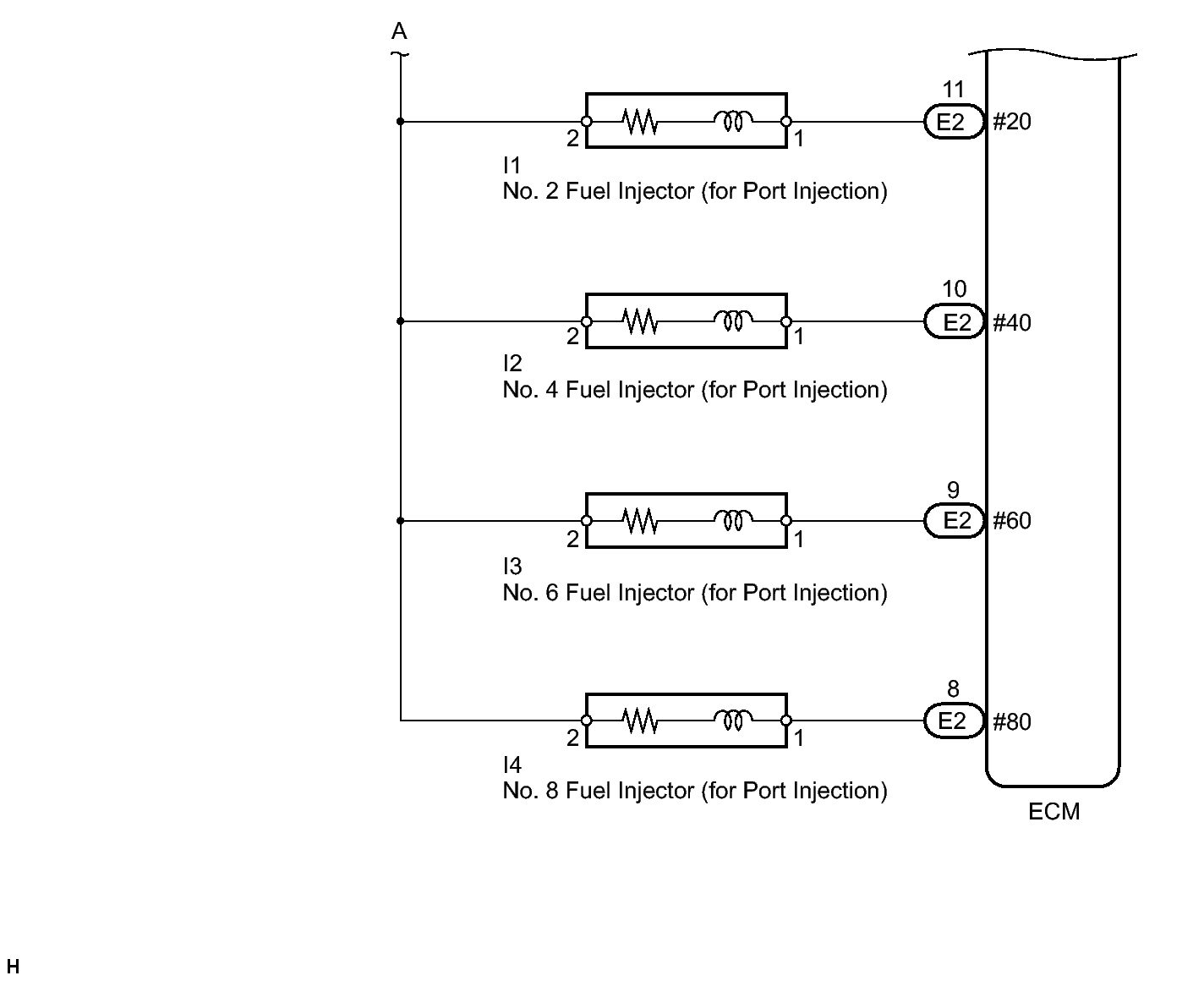

Fig 8: Port Injection Side Fuel System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FUEL PRESSURE SENSOR WIRING DIAGRAM

Fig 9: Identifying Fuel Pressure Sensor Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

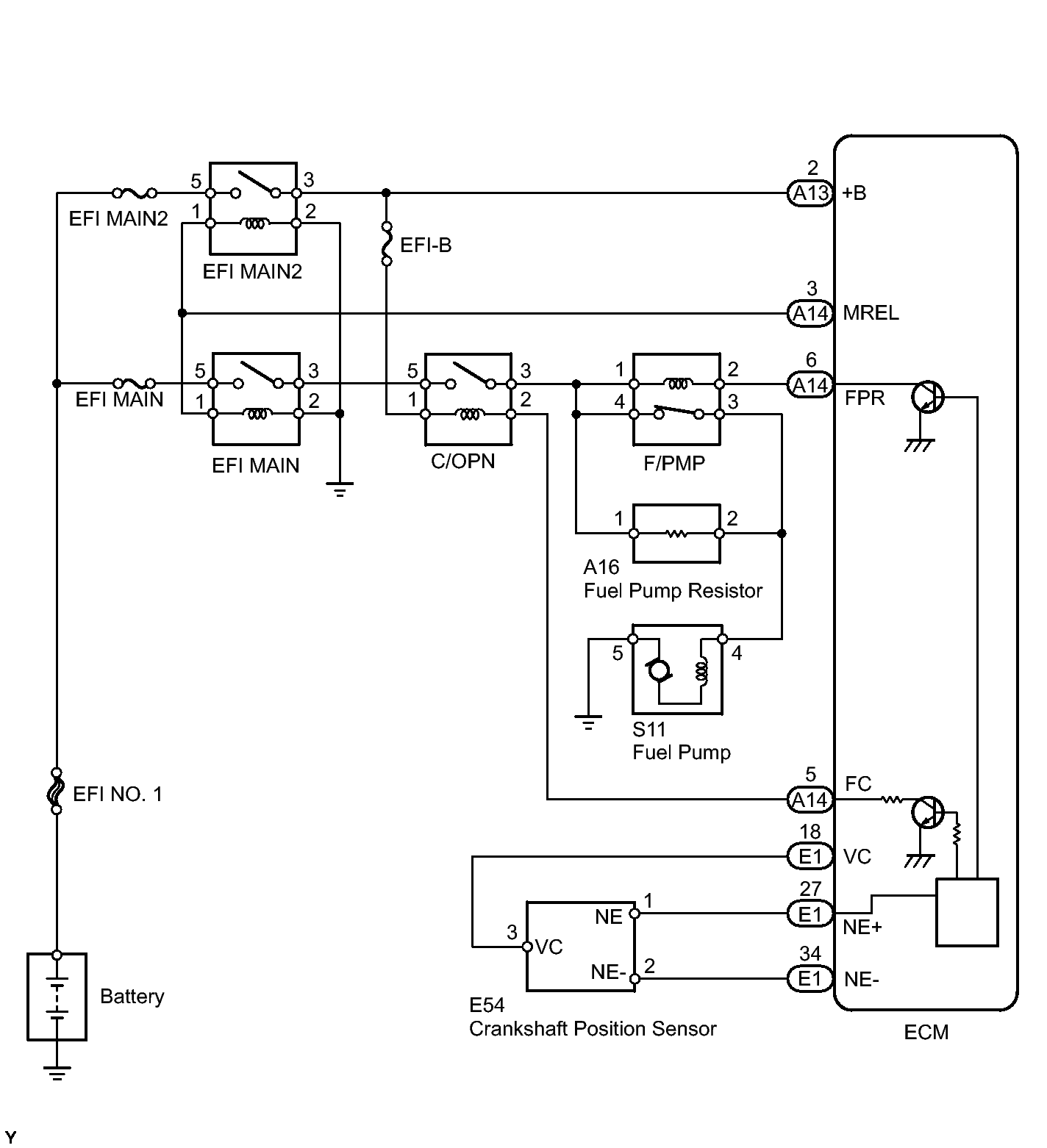

Fig 10: Low Pressure Side Fuel System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INJECTOR DRIVER WIRING DIAGRAM

Fig 11: Injector Driver Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
