Electric Tension Reducer: Notes

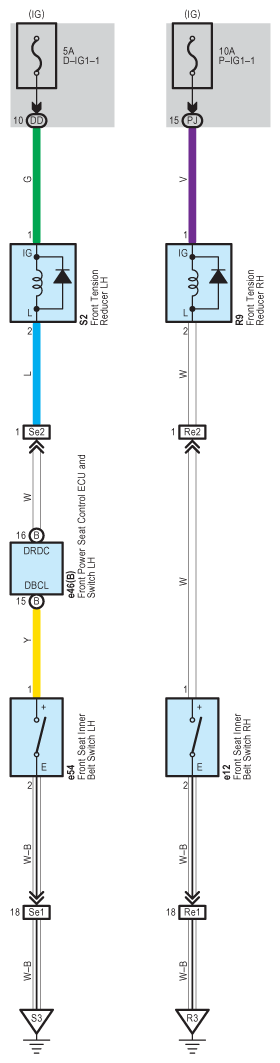

Fig 1: Electric Tension Reducer - Wiring Diagram
G08940878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
