Toe Control Link: Installation: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• A bolt without a torque specification is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS .

1. TEMPORARILY INSTALL TOE CONTROL LINK SUB-ASSEMBLY LH

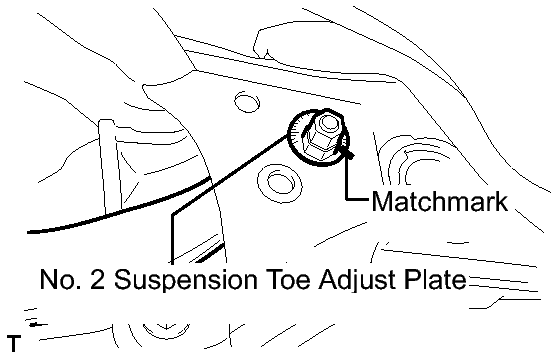

   Fig 1: Aligning Matchmarks Of No. 2 Suspension Toe Adjust Plate And Suspension Member

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Insert the toe adjust cam from the rear of the vehicle and connect the toe control link. Then temporarily install the No. 2 suspension toe adjust plate with the nut.
      NOTE:

      Align the matchmarks of the No. 2 suspension toe adjust plate and suspension member.

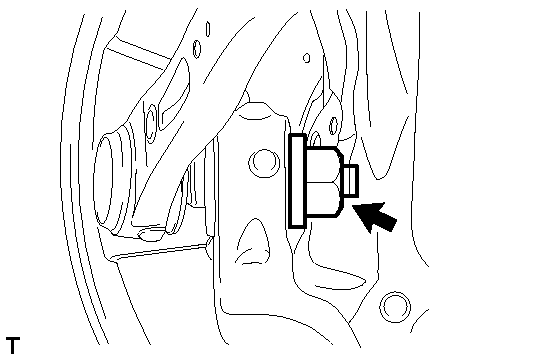

   Fig 2: Locating Toe Control Arm With Nut
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Temporarily install the toe control arm with the new nut to the axle carrier.
2. TIGHTEN TOE CONTROL LINK SUB-ASSEMBLY LH
   1. Tighten the 2 nuts.

      Torque: 60 N*m (612 kgf*cm, 44 ft.*lbf)

      for suspension member side

      Torque: 118 N*m (1203 kgf*cm, 87 ft.*lbf)

      for axle carrier side

3. INSTALL REAR SPEED SENSOR LH  . Refer to INSTALLATION - Step 1
4. INSTALL LOAD SENSING VALVE SENSOR BRACKET  . Refer to INSTALLATION - Step 1
5. STABILIZE SUSPENSION
   1. Stabilize the suspension (w/o Air Suspension) See step  27.
   2. Stabilize the suspension (w/ Air Suspension) See step  30.
6. INSTALL REAR WHEEL

   Torque: 140 N*m (1428 kgf*cm, 104 ft.*lbf)

7. CHECK SUSPENSION CONTROL SYSTEM (w/ Air Suspension)
   1. Check the suspension control system. Refer to OPERATION CHECK .
8. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
   1. Inspect and adjust the rear wheel alignment. Refer to ADJUSTMENT .
9. CHECK SPEED SENSOR SIGNAL
   1. Check the speed sensor signal. Refer to TEST MODE PROCEDURE .
10. ADJUST HEADLIGHT ASSEMBLY
    1. Adjust the headlight. Refer to ADJUSTMENT .
