Driver Monitor Camera: Components: Illustration

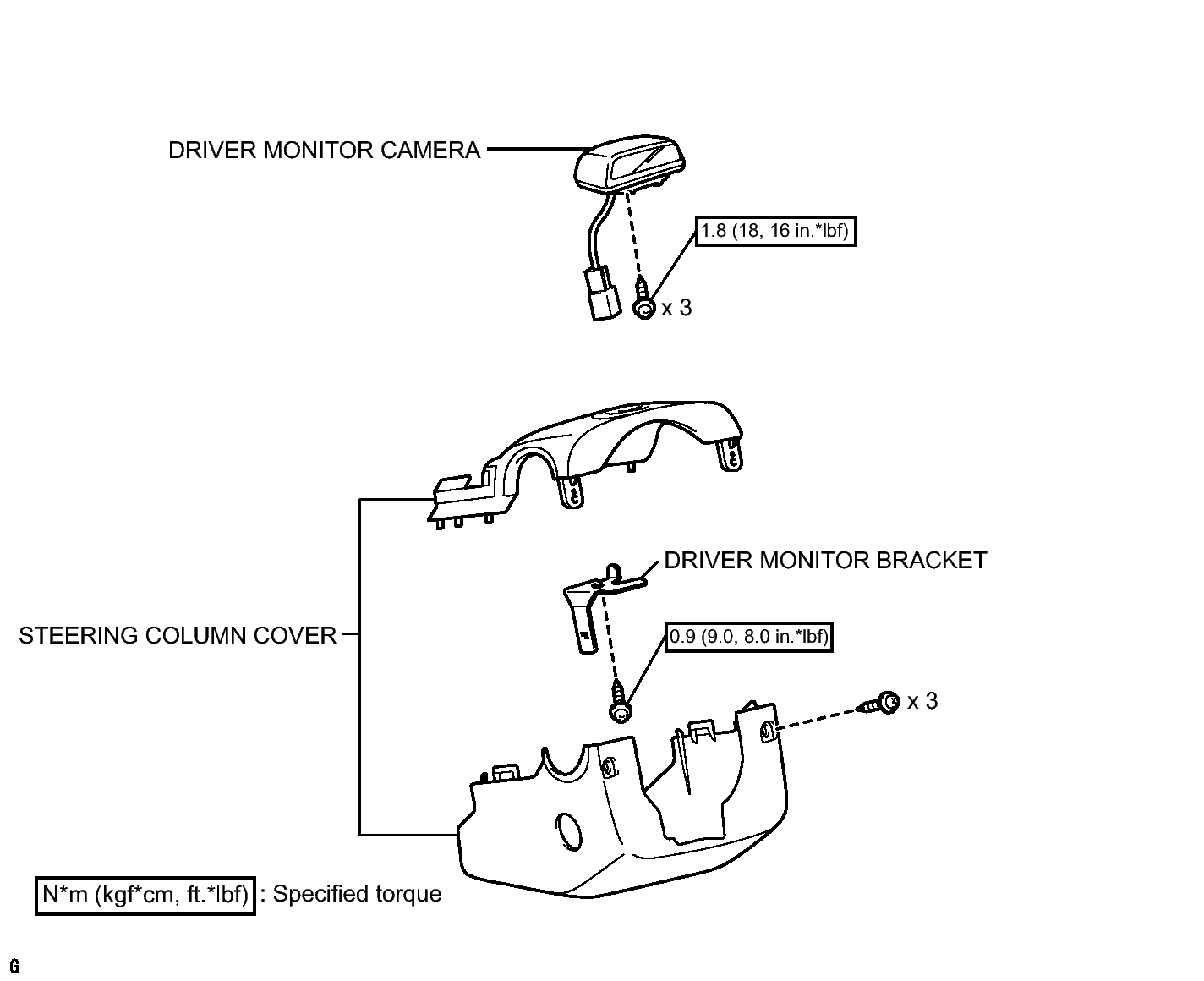

Fig 1: Identifying Driver Monitor Camera Replacement Components With Torque Specifications

GTY138550

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
