Inside Handle Light: Components: Illustration

WARNING: This page is about a different car, the 2012 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.

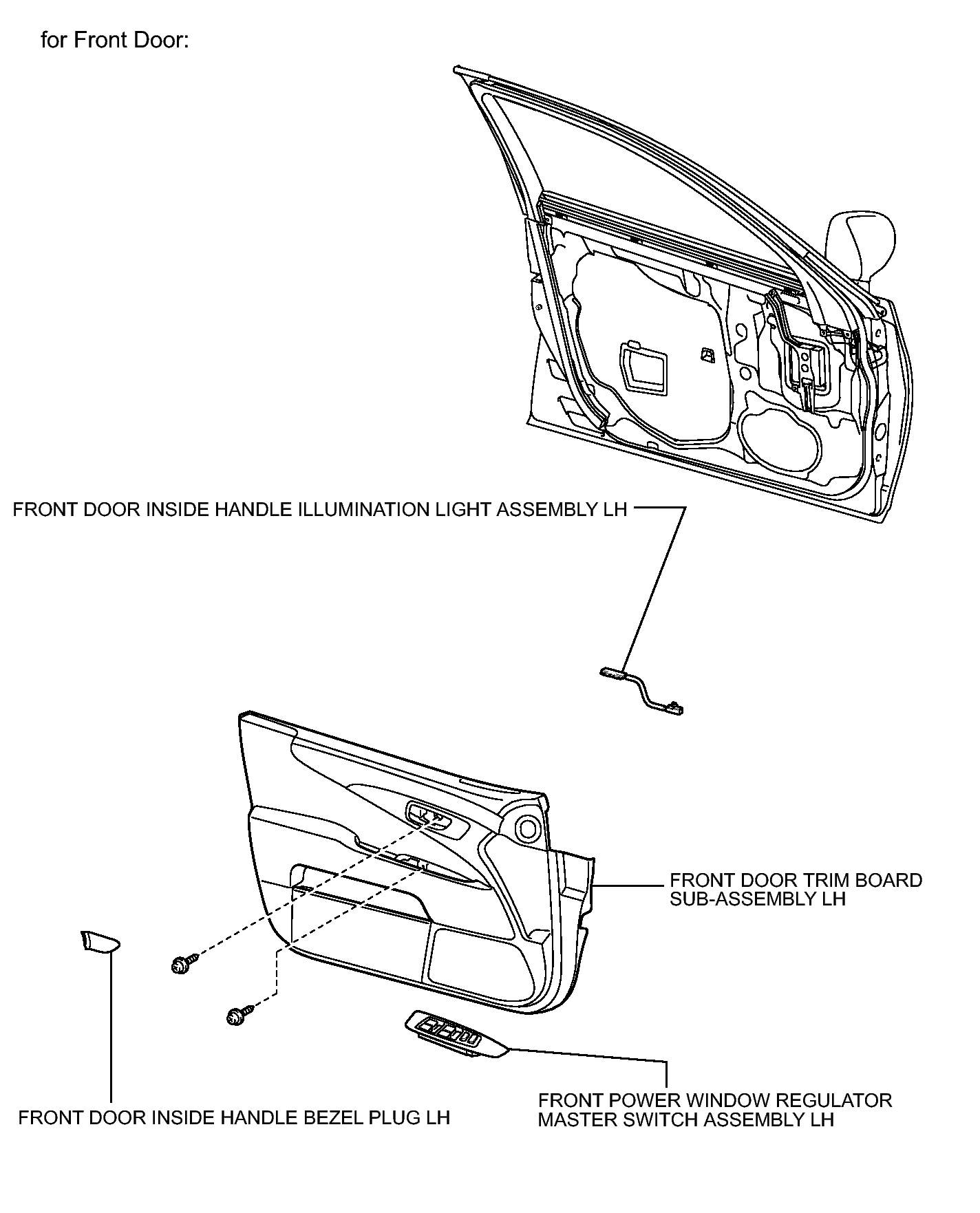

Fig 1: Identifying Inside Handle Light (for Front Door)Replacement Components (1 Of 2)
GTY284369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

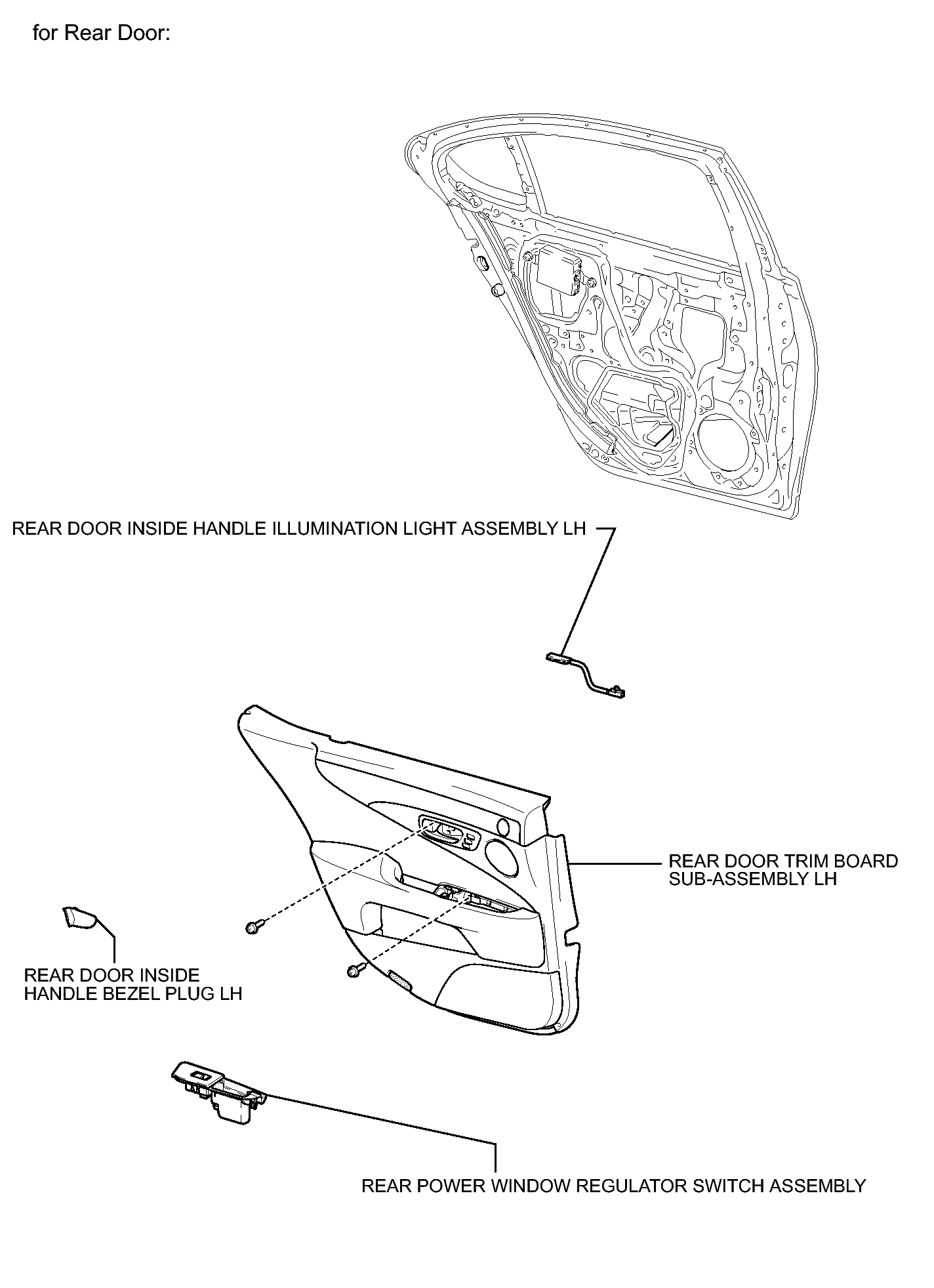

Fig 1: Identifying Inside Handle Light (for Rear Door) Replacement Components (2 Of 2)
GTY258201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
