Display And Navigation Assembly: Components: Illustration

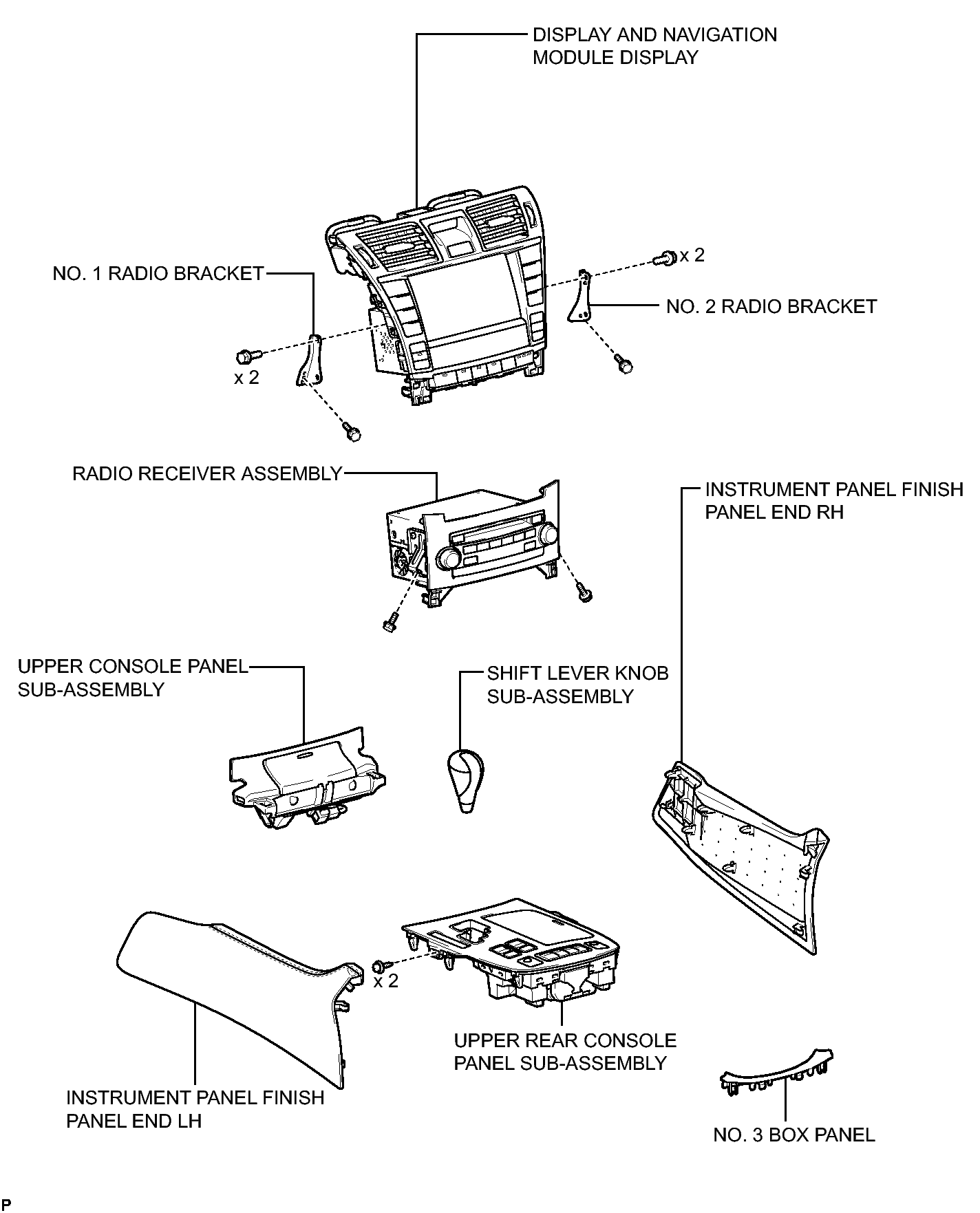

Fig 1: Identifying Multi-Display (W/O Navigation System) Replacement Components (1 Of 2)
GTY266964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

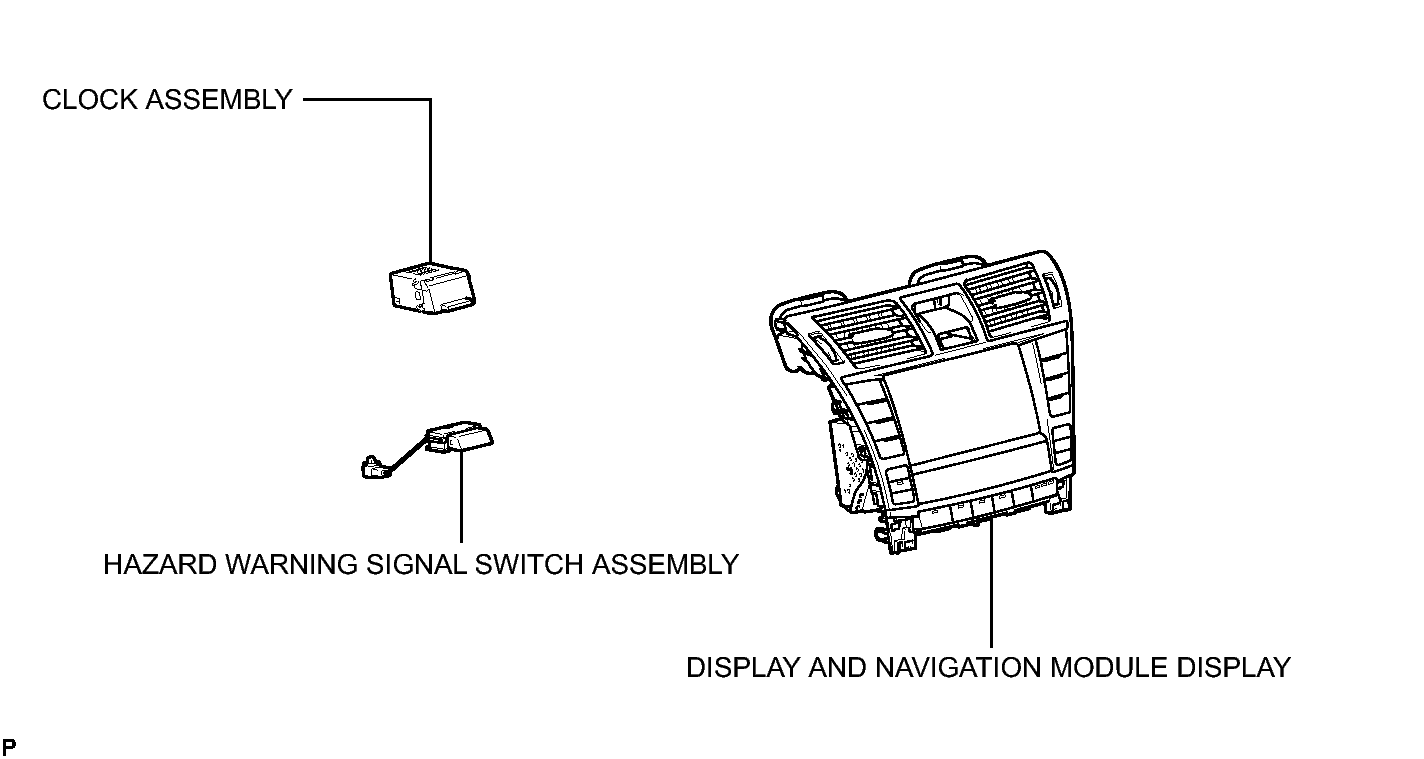

Fig 1: Identifying Multi-Display (W/O Navigation System) Replacement Components (2 Of 2)
GTY283984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
