Operation Check

  1. CHECK PANEL & STEERING SWITCH

    HINT:

    • The display and navigation module display panel switches, radio receiver assembly panel switches and steering switches are checked in the following procedure.
    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.
    1. Enter diagnostic mode. Refer to DTC CHECK/CLEAR .
    2. Select "Function Check/Setting" from the "Service Menu" screen.

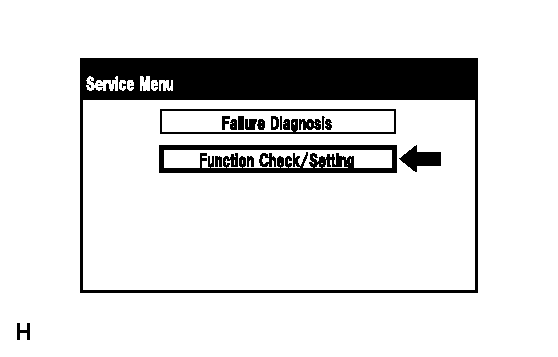

      Fig 1: Screen Display - Service Menu
      GTY233501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Select "Panel & Steering Switch" from the "Function Check/Setting" screen.

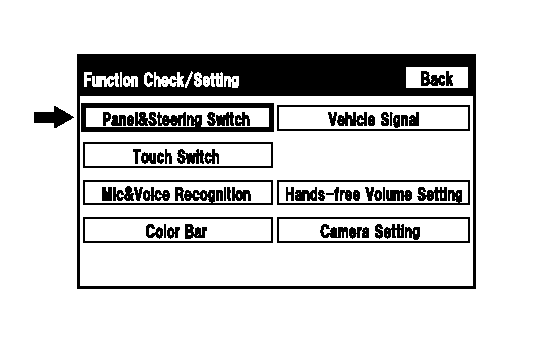

      Fig 2: "Function Check/Setting" Screen
      GTY274431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Panel & Steering Switch Check Mode
      1. Operate each switch and check that the switch names and condition are correctly displayed.

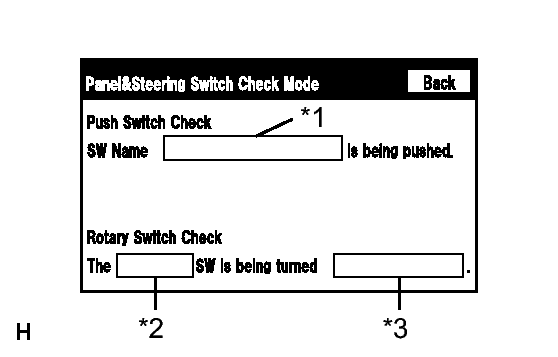

        Fig 3: Screen Display - Panel & Steering Switch Check Mode
        GTY289754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        SCREEN DESCRIPTION

        Display Content
        *1: Push switch name
        • Name of the pressed switch is displayed.
        • If more than one switch is pressed, "MULTIPLE" will be displayed.
        *2: Rotary switch name Name of the rotary switch is displayed.
        *3: Rotary switch direction Direction of the rotary switch is displayed.
  2. CHECK TOUCH SWITCH

    HINT:

    • The touch switches on the screen are checked in the following procedure.
    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.
    1. Enter diagnostic mode. Refer to DTC CHECK/CLEAR .
    2. Select "Function Check/Setting" from the "Service Menu" screen.
      Fig 4: Screen Display - Service Menu
      GTY233501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Select "Touch Switch" from the "Function Check/Setting" screen.

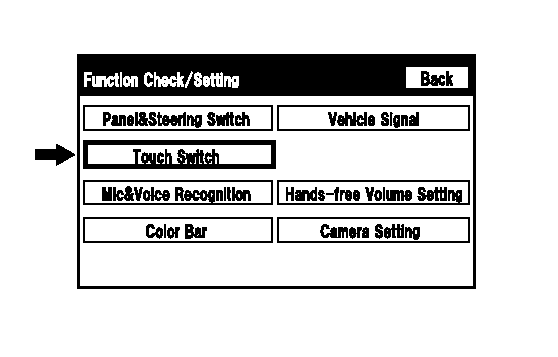

      Fig 5: "Function Check/Setting" Screen
      GTY274430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Touch Switch Check
      Fig 6: View Of Touch Switch Check
      GTY180423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

        HINT:

        • A "+" mark is displayed where the display is touched.
        • The "+" mark remains on the display even after the finger is removed.
  3. CHECK MIC & VOICE RECOGNITION

    HINT:

    • The microphone and microphone input level are checked in the following procedure.
    • Illustrations may differ from the actual vehicle screen depending on the device settings and options.

      Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.

    1. Enter diagnostic mode. Refer to DTC CHECK/CLEAR .
    2. Select "Function Check/Setting" from the "Service Menu" screen.
      Fig 7: Screen Display - Service Menu
      GTY233501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Select "Mic & Voice Recognition" from the "Function Check/Setting" screen.

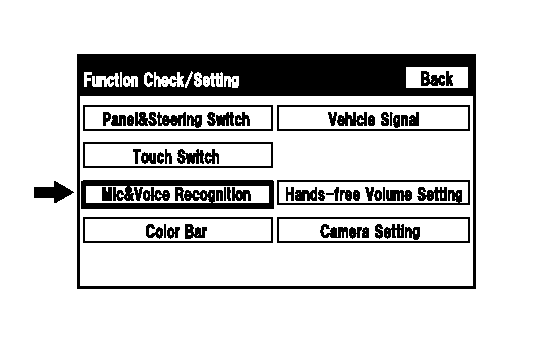

      Fig 8: "Function Check/Setting" Screen
      GTY274432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Microphone & Voice Recognition Check

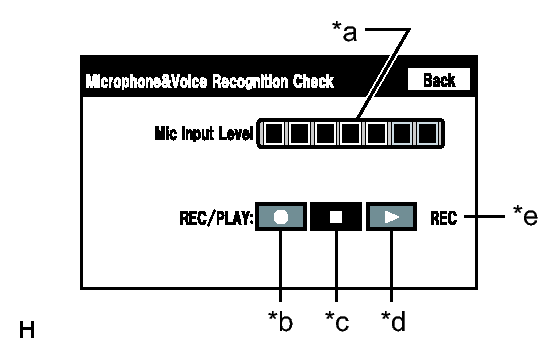

      Fig 9: Microphone & Voice Recognition Check
      GTY228209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Microphone Input Level Meter
      *b Recording Switch
      *c Stop Switch
      *d Play Switch
      *e Recording Indicator
      1. When speaking into the microphone, check that the microphone input level meter changes according to the input level.
      2. Push the recording switch and perform voice recording.
      3. Check that the recording indicator remains on while recording and that the recording can be played normally.

        HINT:

        • For details of this function, refer to Diagnosis Display Detailed Description. Refer to DTC CHECK/CLEAR .
        • This function is controlled by the display and navigation module display.
  4. CHECK COLOR BAR

    HINT:

    • The display color on the screen is checked in the following procedure.
    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.
    1. Enter diagnostic mode. Refer to DTC CHECK/CLEAR .
    2. Select "Function Check/Setting" from the "Service Menu" screen.
      Fig 10: Screen Display - Service Menu
      GTY233501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Select "Color Bar" from the "Function Check/Setting" screen.

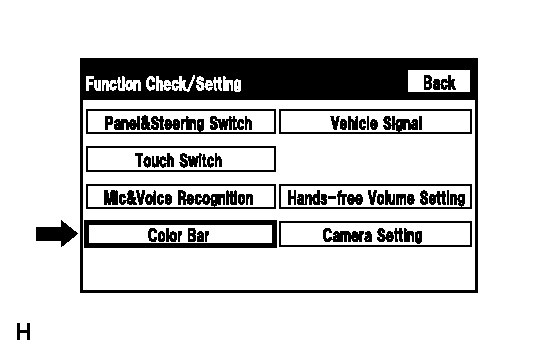

      Fig 11: "Function Check/Setting" Screen
      GTY265236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Color Bar Check Mode
      1. Select a color bar from the "Color Bar Check Mode" screen.

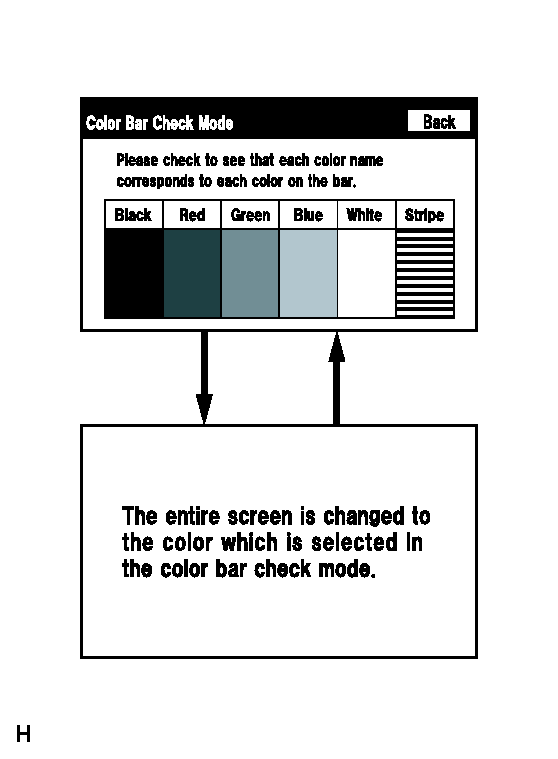

        Fig 12: View Of Color Bar Check Mode
        GTY208832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check the display color.

        HINT:

        • The entire screen turns to the color or stripe selected.
        • Touching the display will return to the "Color Bar Check" screen.
  5. CHECK VEHICLE SIGNAL

    HINT:

    • Vehicle signals received by the display and navigation module display are checked in the following procedure.
    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.
    1. Enter diagnostic mode. Refer to DTC CHECK/CLEAR .
    2. Select "Function Check/Setting" from the "Service Menu" screen.
      Fig 13: Screen Display - Service Menu
      GTY233501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Select "Vehicle Signal" from the "Function Check/Setting" screen.

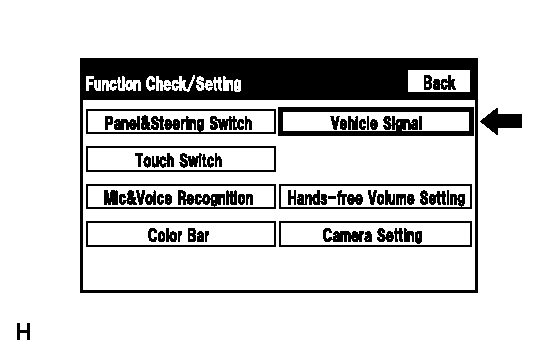

      Fig 14: "Function Check/Setting" Screen
      GTY286982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Vehicle Signal Check Mode
      1. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

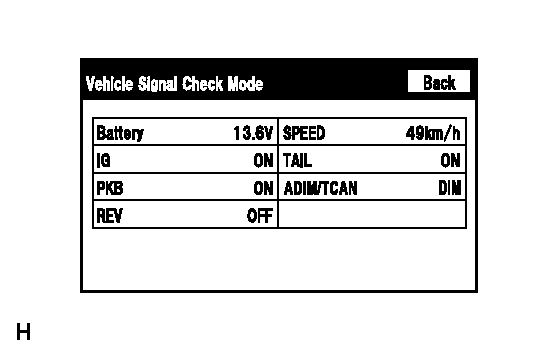

        Fig 15: Identifying "Vehicle Signal Check Mode" Screen
        GTY283565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • Only conditions having inputs are displayed.
        • This screen displays vehicle signals input to the display and navigation module display.
        • For details of this function, refer to Diagnosis Display Detailed Description in System Description. Refer to SYSTEM DESCRIPTION .
  6. CHECK HANDSFREE VOLUME SETTING

    HINT:

    • The handsfree volume of a "Bluetooth" compatible phone can be adjusted using the following procedure.
    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.
    1. Enter diagnostic mode. Refer to DTC CHECK/CLEAR .
    2. Select "Function Check/Setting" from the "Service Menu" screen.
      Fig 16: Screen Display - Service Menu
      GTY233501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Select "Handsfree Volume Setting" from the "Function Check/Setting" screen.

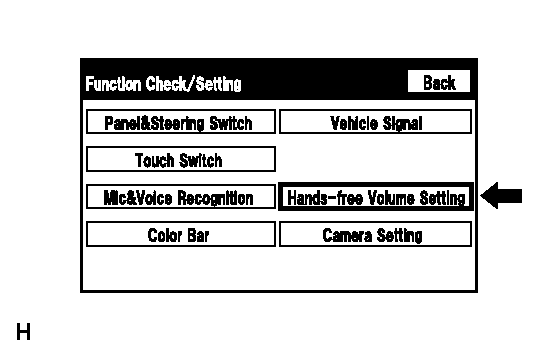

      Fig 17: "Function Check/Setting" Screen
      GTY258271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Handsfree Volume Setting
      1. Check the handsfree volume level.

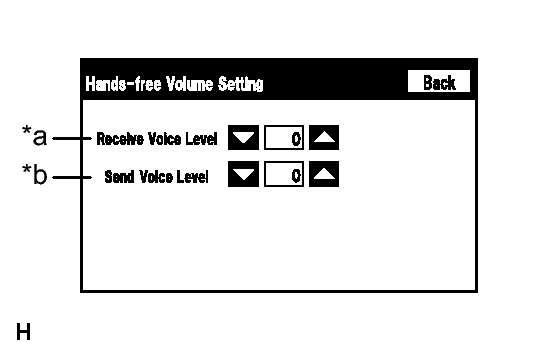

        Fig 18: Screen Display - Handsfree Volume Setting
        GTY393510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        SCREEN DESCRIPTION

        Display Content
        *a: Receive voice level adjustment Setting possible for the voice level received from "Bluetooth" compatible phones.
        *b: Send voice level adjustment Setting possible for the voice level sent from "Bluetooth" compatible phones.
        NOTE: Sound quality may deteriorate when the receive voice level is changed more than necessary. For this reason, check that the receive voice quality is still acceptable after changing this setting.

        HINT:

        Sound quality of sent voice may deteriorate when the send voice level is adjusted.
