Integration Control and Panel Assembly Communication Stop Mode: Wiring Diagram

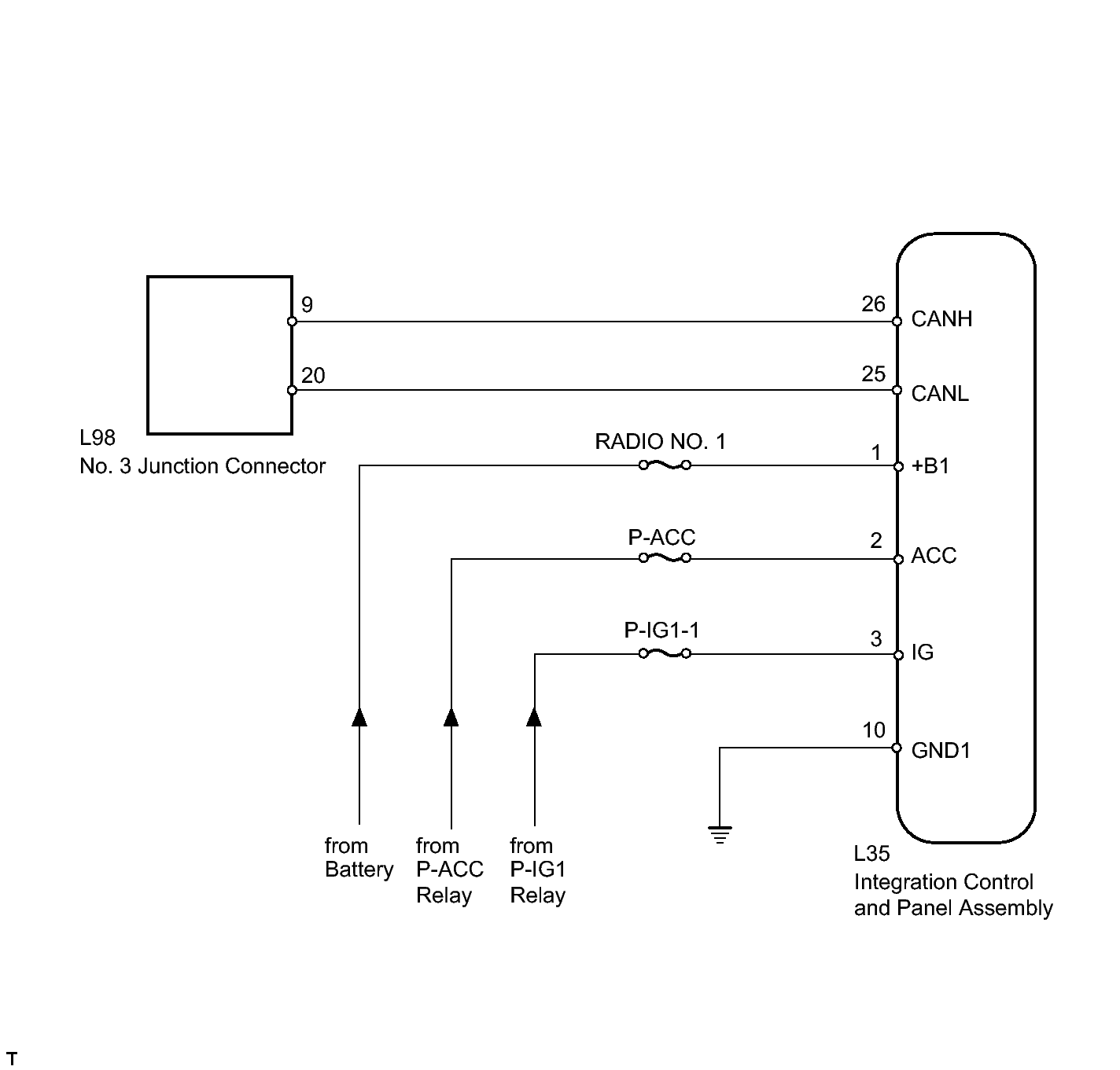

Fig 1: Identifying Integration Control And Panel Assembly Communication Stop Mode Wiring Diagram
GTY259583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
