Power Steering Ecu: Installation: Installation

  1. INSTALL POWER STEERING ECU
    1. Attach the claw and install the power steering ECU with the 4 bolts.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      Fig 1: Identifying Power Steering ECU Bolts And Claw
      GTY111092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect connector C to the power steering ECU.

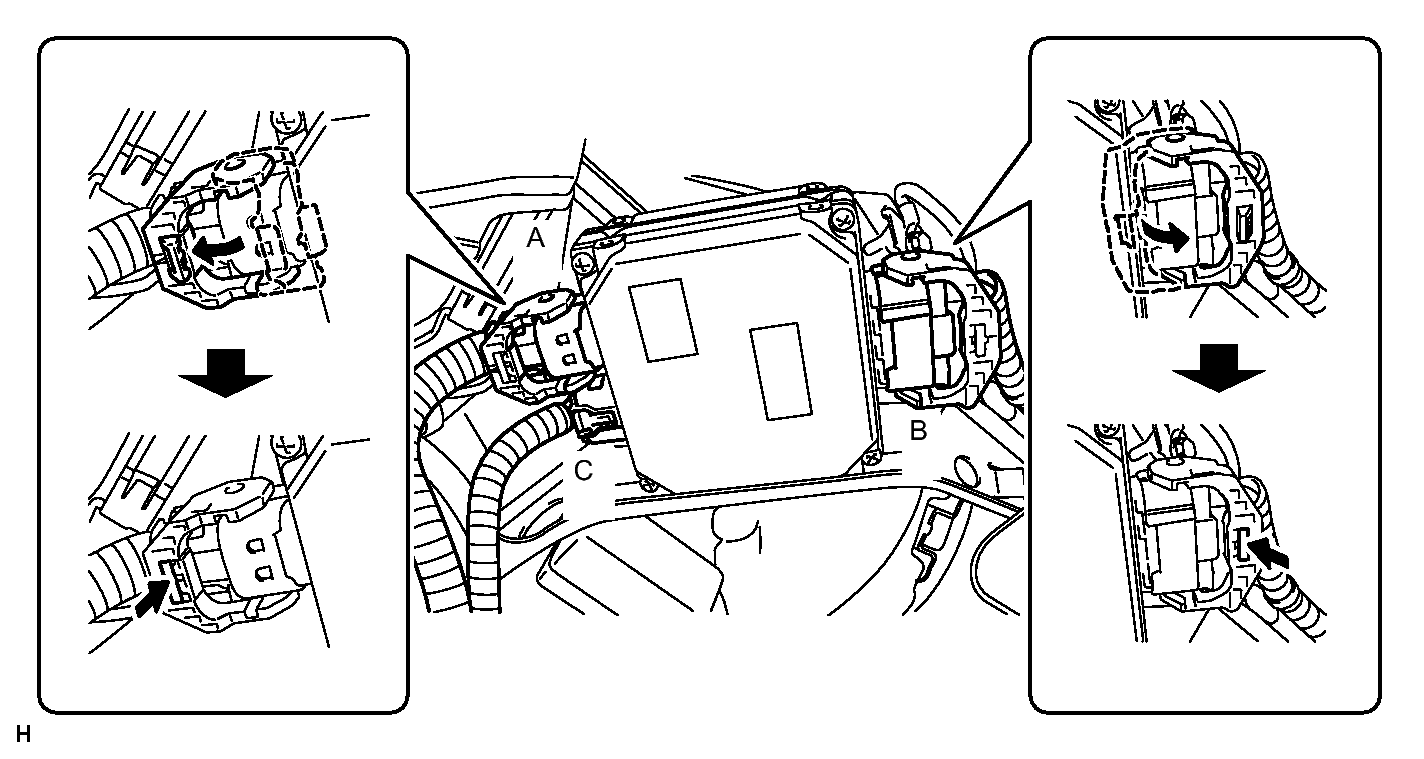

      Fig 2: Connecting Power Steering ECU Connectors A And B
      GTY286420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the 2 power steering ECU connectors A and B and securely lock the connectors.
  2. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY
    1. Install the inlet cover with the 2 clips.
  3. INSTALL ENGINE ROOM SIDE COVER
    1. Install the side cover with the 4 clips.
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  5. INSTALL COWL TOP VENTILATOR LOUVER RH  . Refer to INSTALLATION - Step 11
  6. PERFORM INITIALIZATION
    1. Perform initialization. Refer to INITIALIZATION .
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  7. PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION
    1. Perform variable gear ratio steering system calibration. Refer to CALIBRATION .
