Brake Pedal Stroke Sensor: Components: Illustration

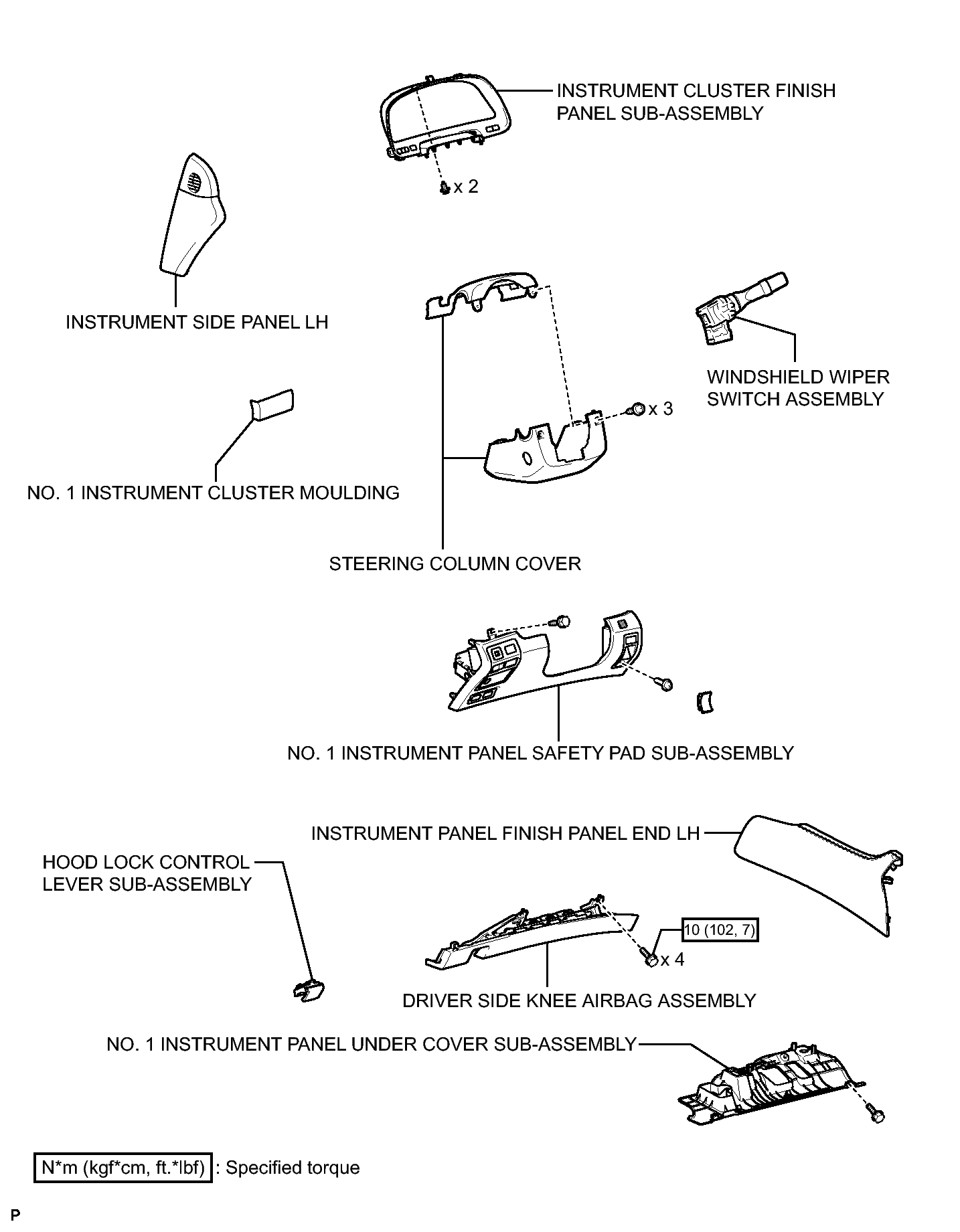

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components (1 Of 2) With Torque Specifications
GTY289475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

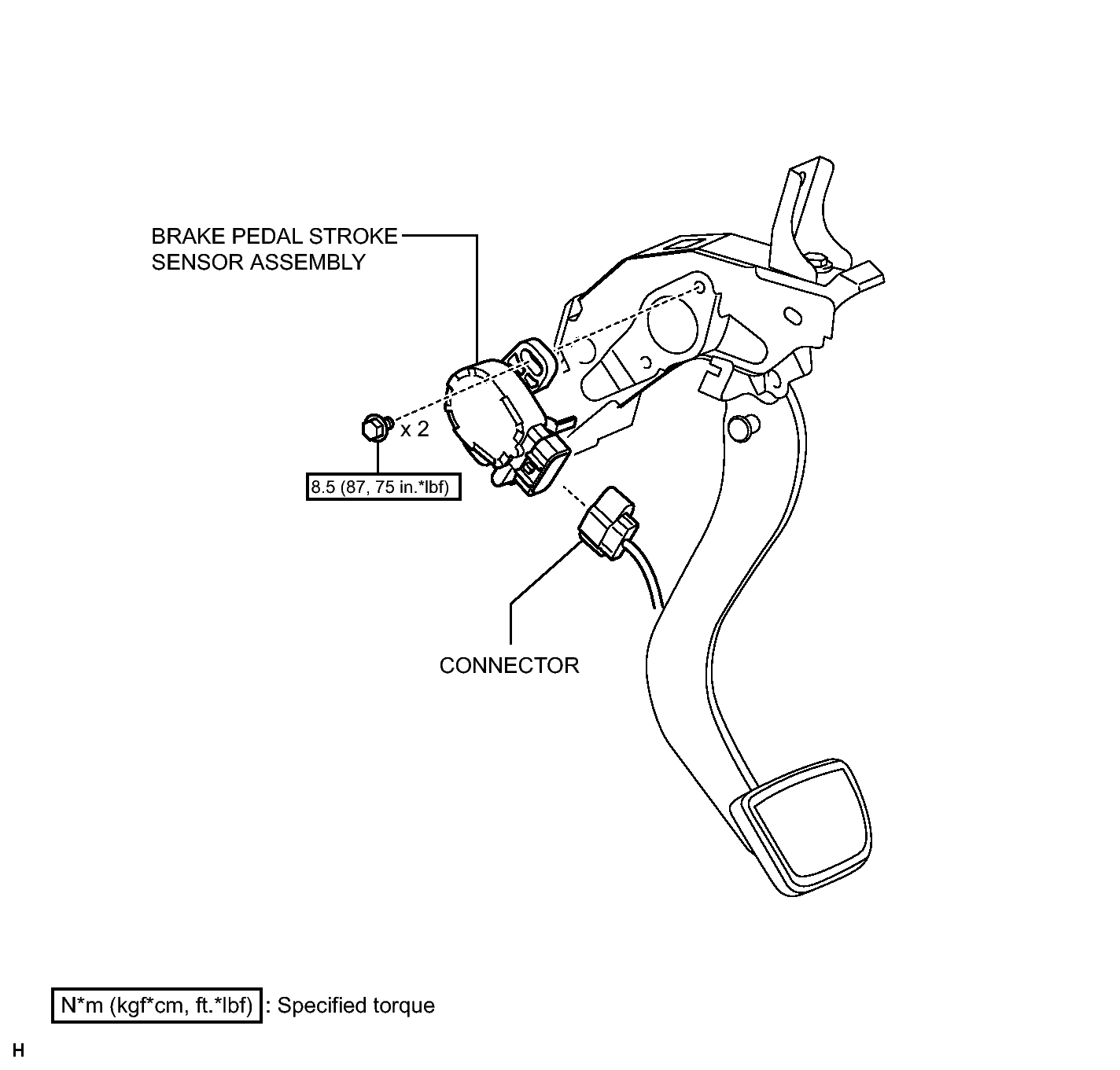

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components (2 Of 2) With Torque Specifications
GTY261265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
