Suspension Control Ecu: Components: Illustration

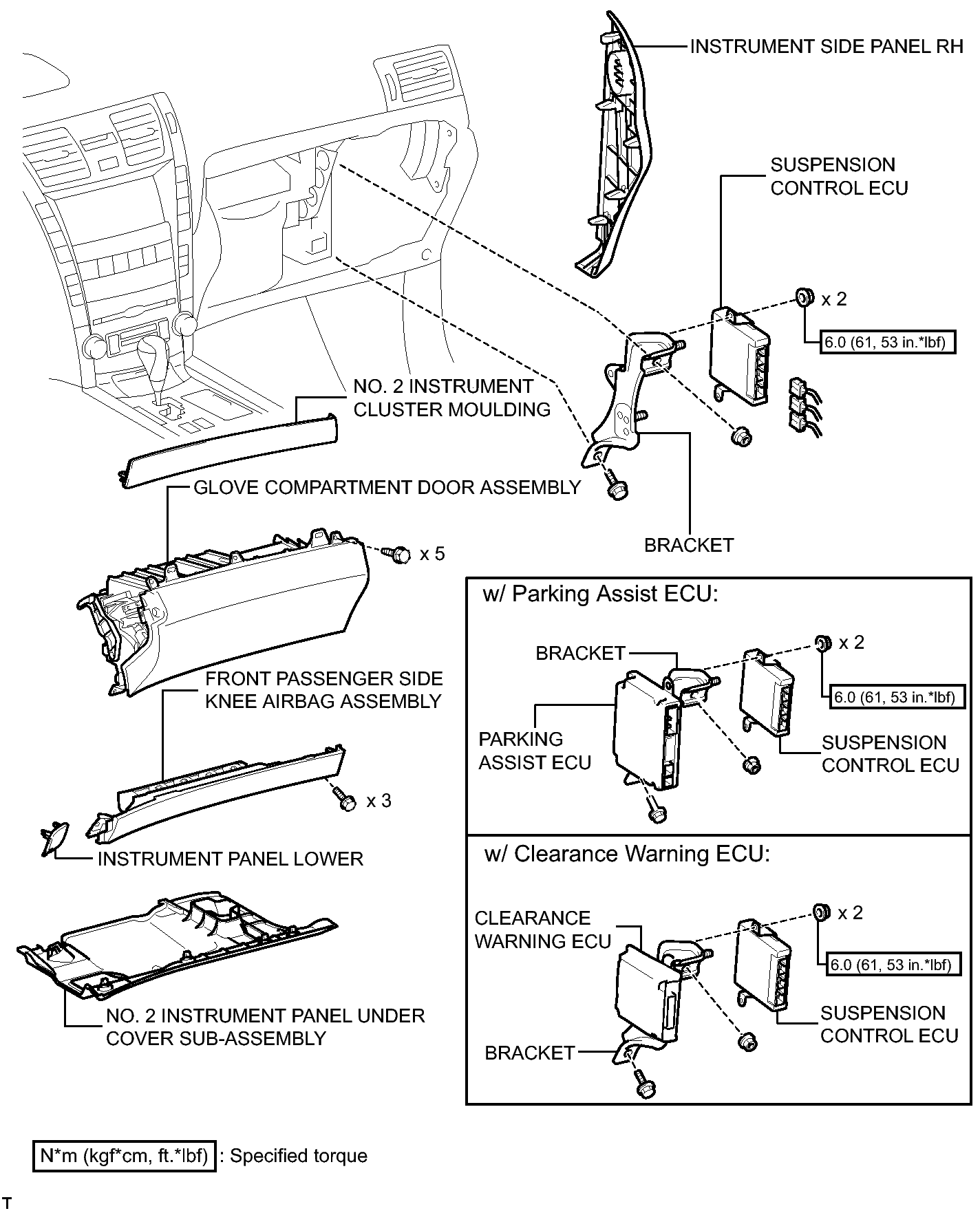

Fig 1: Identifying Suspension Control ECU Replacement Components With Torque Specifications

GTY289367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
