Shoulder Belt Anchorage Switch: Components: Illustration

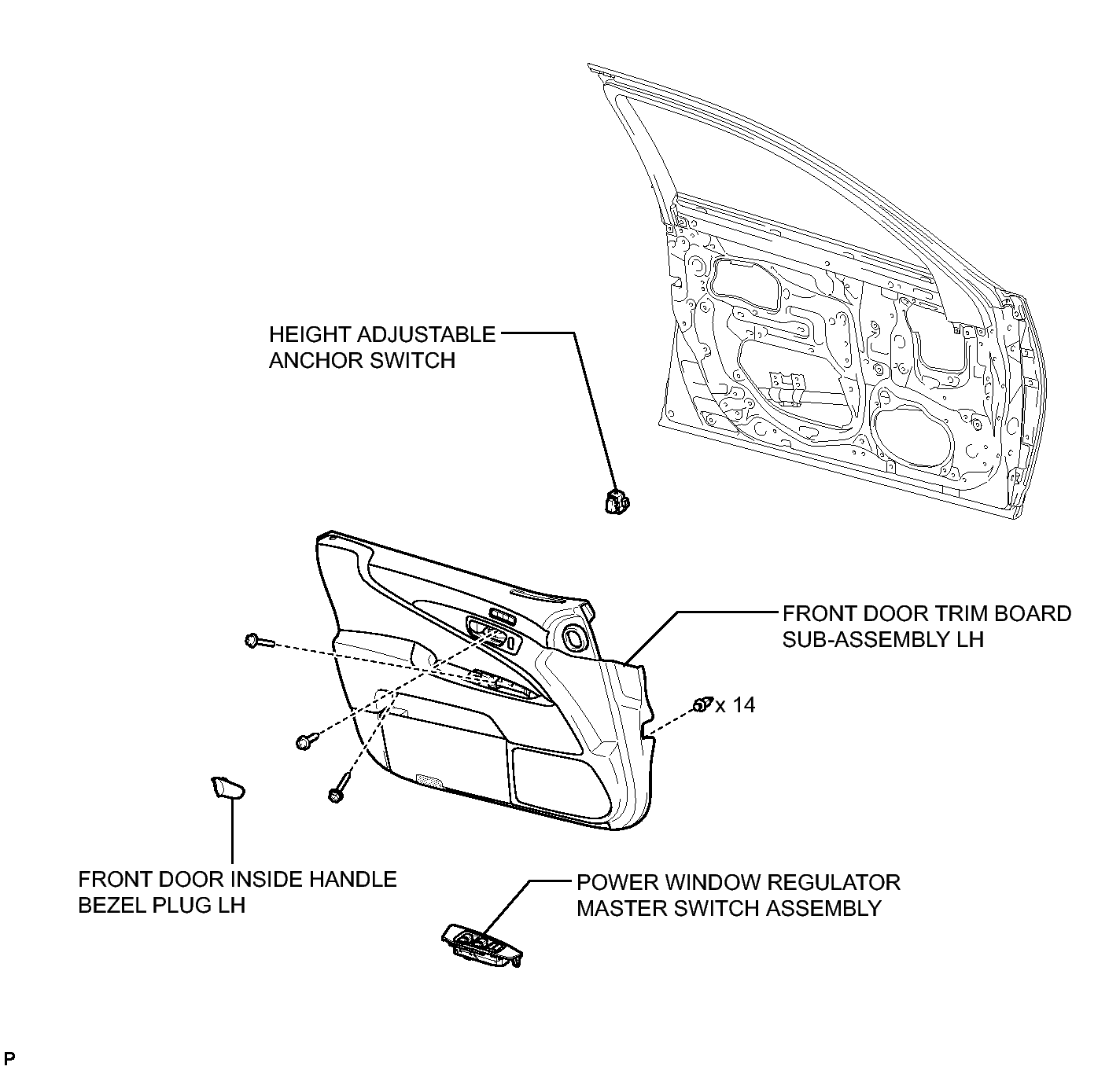

Fig 1: Identifying Shoulder Belt Anchorage Switch Replacement Components

GTY271457

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
