Parts Location: Illustration

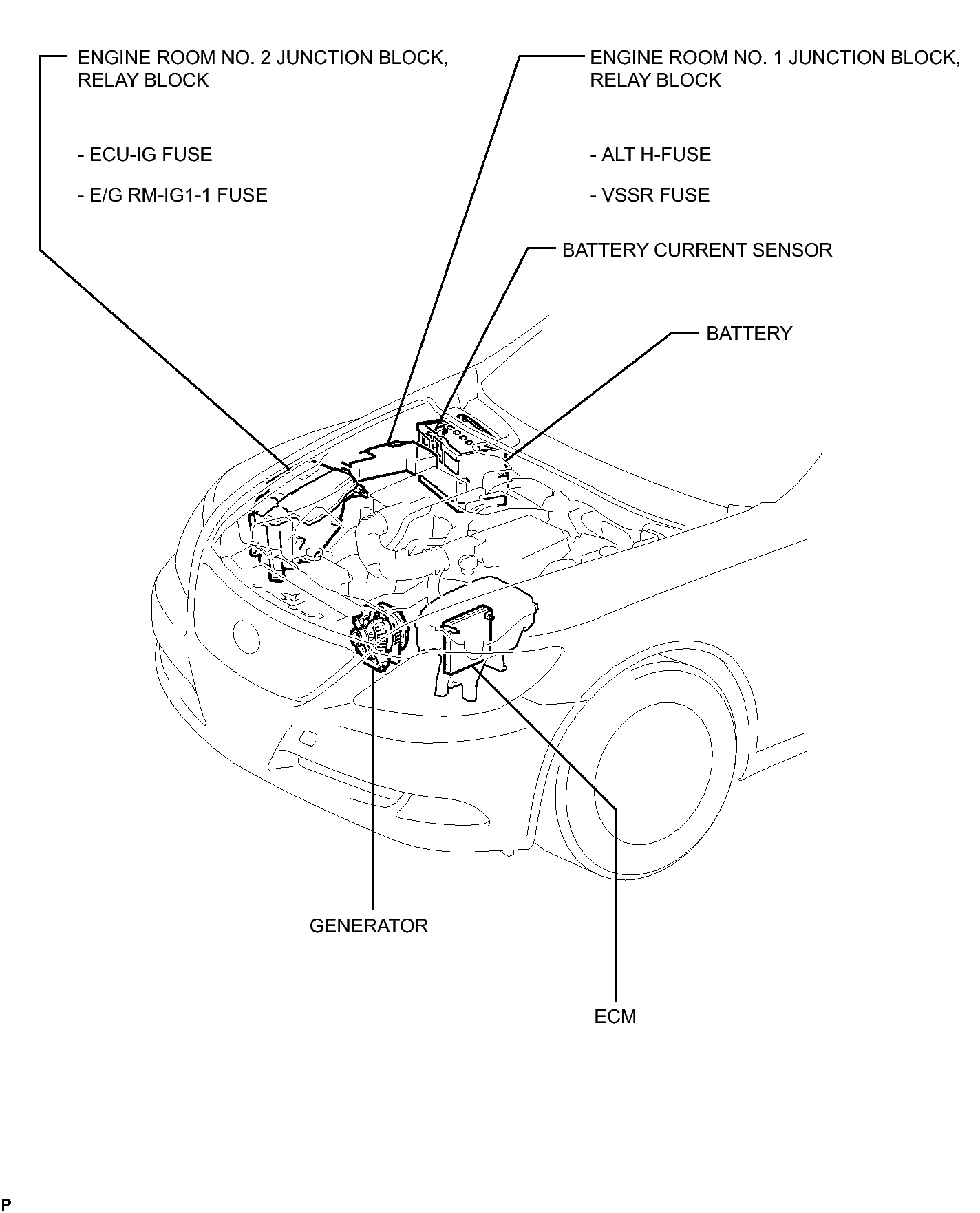

Fig 1: Identifying Electric Power Control System Components Location (1 Of 2)
GTY285974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

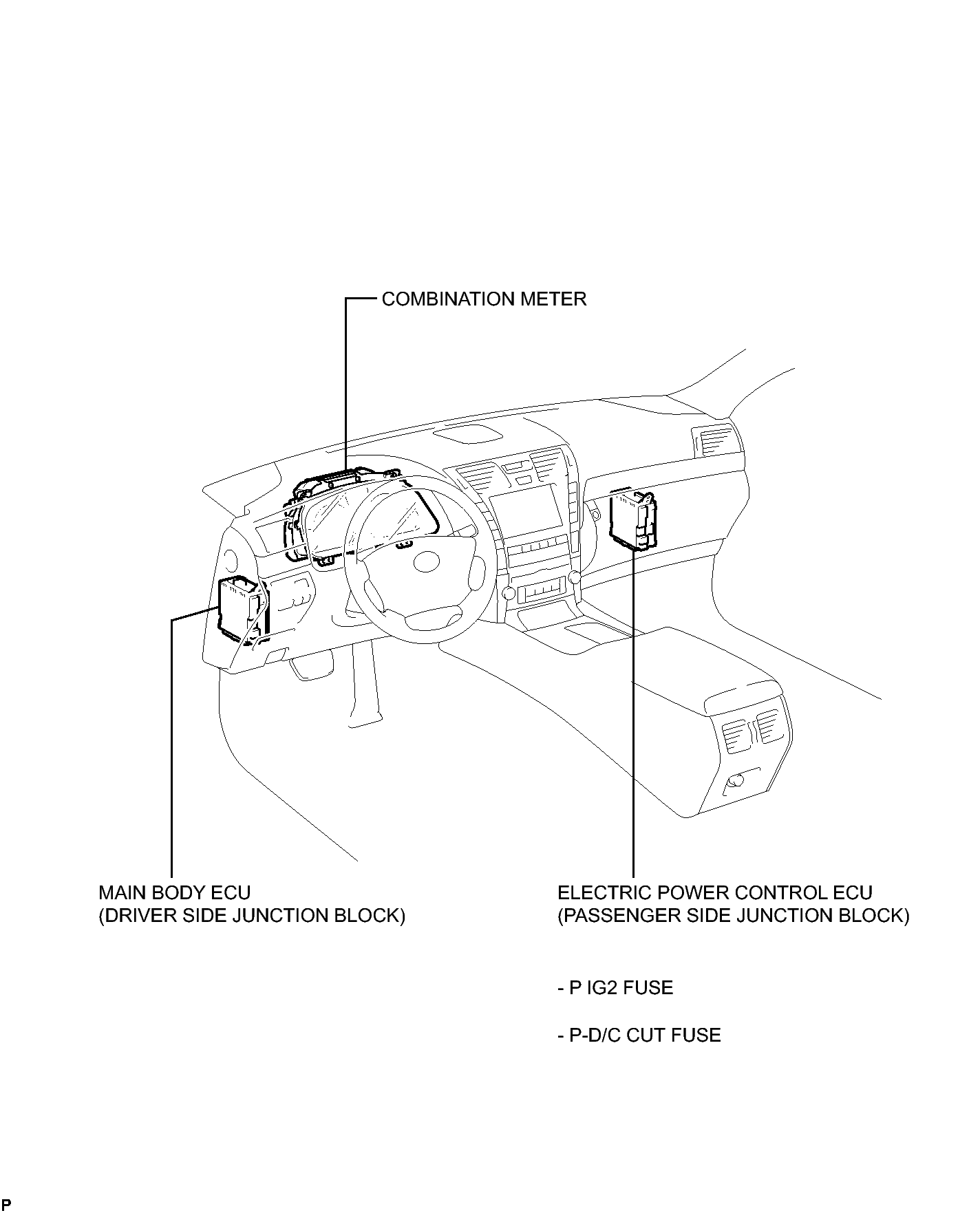

Fig 1: Identifying Electric Power Control System Components Location (2 Of 2)
GTY275741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
