DTC C1595/55, C15C4/68: Lost Communication with Steering Angle Sensor Module; Steering Angle Signal (Test Mode DTC): Wiring Diagram

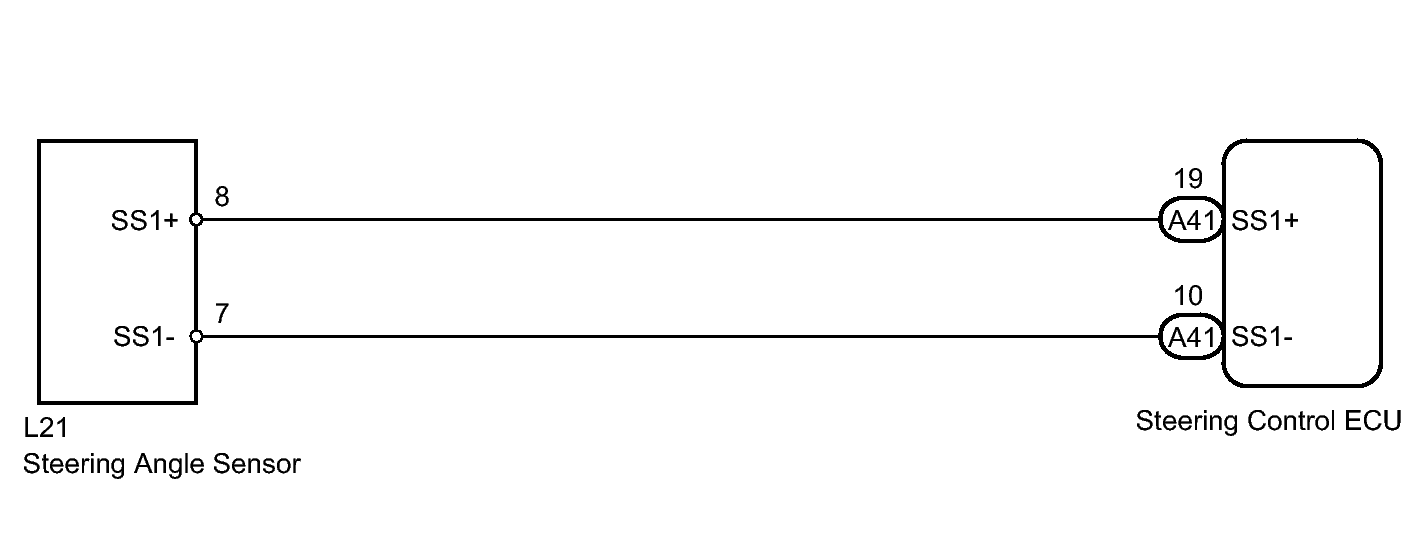

Fig 1: Steering Angle Signal - Wiring Diagram
GTY289005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
