Engine Switch Indicator Circuit: Wiring Diagram

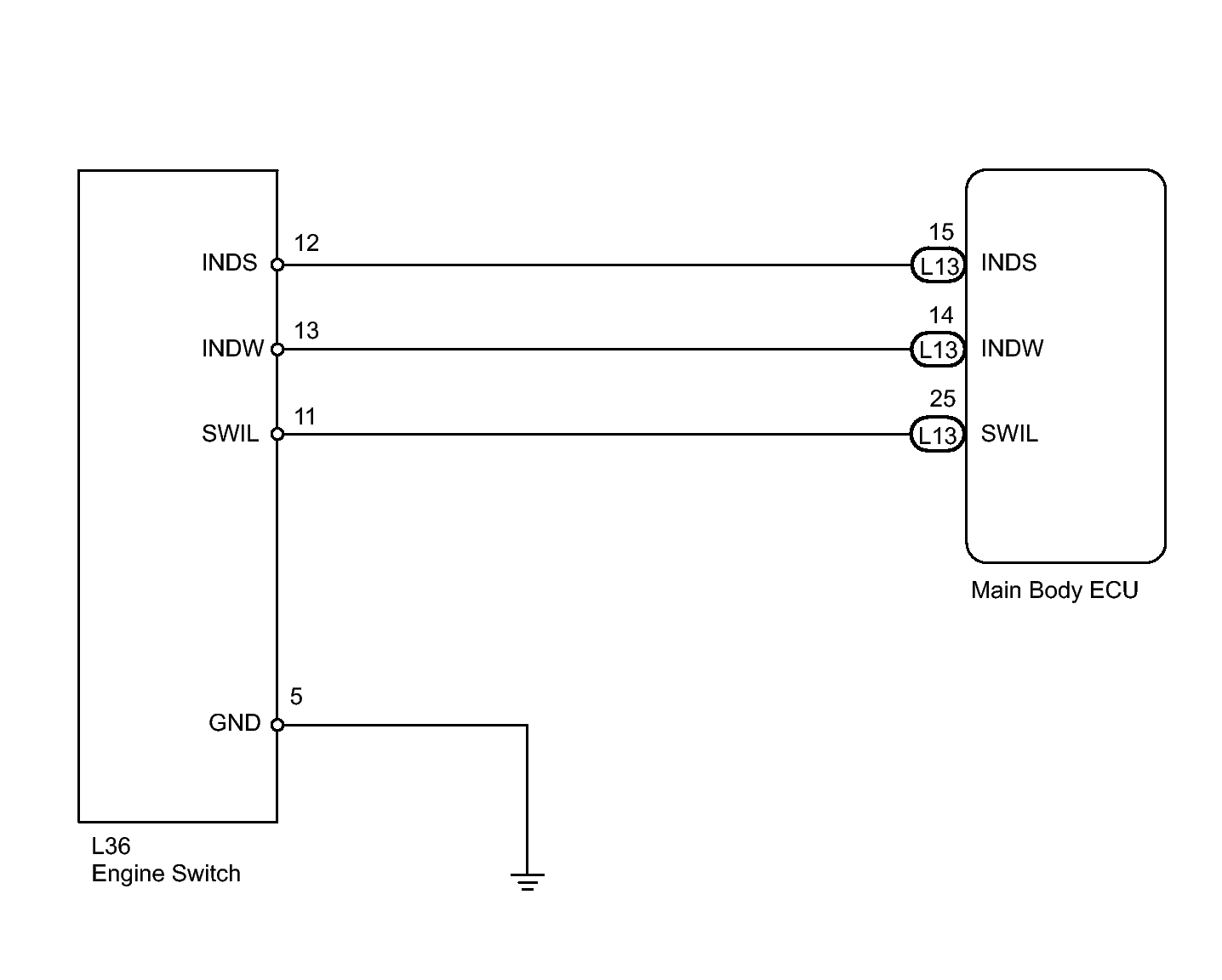

Fig 1: Engine Switch And Main Body ECU - Wiring Diagram

GTY288187

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
